MIC29371 Series
Manufacturer: Microchip Technology
Beta
⌘K
750MA LDO FIXED VOLTAGE + FLAG + SHUTDOWN 5 DDPAK TUBE ROHS COMPLIANT: YES
| Part | Current - Output | Output Type | Control Features | Mounting Type | Output Configuration | Number of Regulators | Voltage - Input (Max) | Package Leads | Package Name | Voltage - Output (Min/Fixed) | Current - Supply (Max) | Protection Features | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Dropout (Max) | Current - Quiescent (Iq) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 12 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 0.75 V | 300 µA | |
Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 3.3 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 300 µA | ||
 Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 3.3 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 300 µA | ||

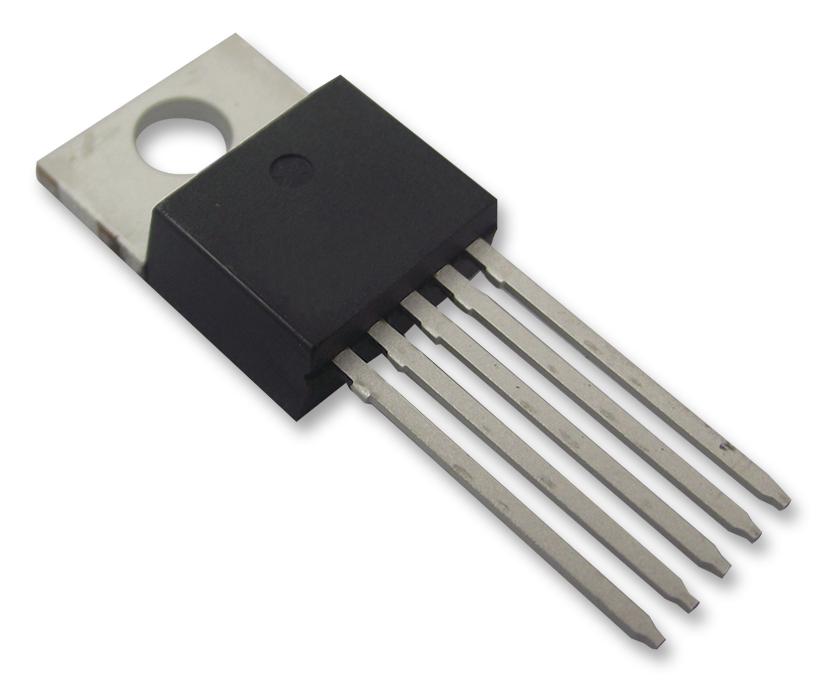

 Microchip Technology | 750 mA | Fixed | Enable | Through Hole | Positive | 1 | 26 V | TO-220-5 | 12 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 0.75 V | 300 µA | TO-220-5 | |
Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 3.3 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 300 µA | ||
Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 5 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 300 µA | ||
Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 5 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 300 µA | ||
 Microchip Technology | 750 mA | Fixed | Enable | Through Hole | Positive | 1 | 26 V | TO-220-5 | 5 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 300 µA | TO-220-5 | ||
 Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 3.3 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 300 µA | ||
 Microchip Technology | 750 mA | Fixed | Enable | Surface Mount | Positive | 1 | 26 V | 5 Leads | D2PAK TO-263-5 | 12 V | 16 mA | Over Current Over Temperature | 125 °C | -40 °C | 0.75 V | 300 µA |
