PIC24EP128GP206 Series

Catalog

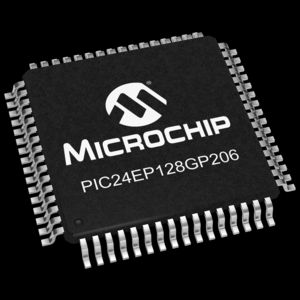

MCU 16-BIT PIC24 PIC RISC 128KB FLASH 3.3V 64-PIN QFN EP TUBE

Part	Program Memory Type	A/D Resolution (bits)	A/D Channels	Connectivity	Mounting Type	Package Width	Package Name	Package Length	Core Size (Bit Width)	Oscillator Type	Package / Case	Number of I/O	Peripherals	RAM Size Width	RAM Size Depth	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Speed	Program Memory Size	Program Memory Depth	Program Memory Width	Qualification	Grade
Microchip Technology PIC24EP128GP206-I/MR	FLASH	10 bit 12 bit	16 count	I2C IrDA LINbus SPI UART USART	Surface Mount	9 mm	64-VQFN	9 mm	16 Bit	Internal	64-VFQFN Exposed Pad	53	Brown-out Detect DMA POR PWM Reset WDT	16 bit	8 K	3.6 V	3 V	PIC	85 °C	-40 °C	70 MIPs	128 KB	43 K	24
Microchip Technology PIC24EP128GP206T-E/MR	FLASH	10 bit 12 bit	16 count	I2C IrDA LINbus SPI UART USART	Surface Mount	9 mm	64-VQFN	9 mm	16 Bit	Internal	64-VFQFN Exposed Pad	53	Brown-out Detect DMA POR PWM Reset WDT	16 bit	8 K	3.6 V	3 V	PIC	125 °C	-40 °C	60 MIPs	128 KB	43 K	24	AEC-Q100	Automotive
Microchip Technology PIC24EP128GP206T-I/PT	FLASH	10 bit 12 bit	16 count	I2C IrDA LINbus SPI UART USART	Surface Mount	10 mm	64-TQFP	10 mm	16 Bit	Internal	64-TQFP	53	Brown-out Detect DMA POR PWM Reset WDT	16 bit	8 K	3.6 V	3 V	PIC	85 °C	-40 °C	70 MIPs	128 KB	43 K	24
Microchip Technology PIC24EP128GP206T-I/MR	FLASH	10 bit 12 bit	16 count	I2C IrDA LINbus SPI UART USART	Surface Mount	9 mm	64-VQFN	9 mm	16 Bit	Internal	64-VFQFN Exposed Pad	53	Brown-out Detect DMA POR PWM Reset WDT	16 bit	8 K	3.6 V	3 V	PIC	85 °C	-40 °C	70 MIPs	128 KB	43 K	24
Microchip Technology PIC24EP128GP206T-E/PT	FLASH	10 bit 12 bit	16 count	I2C IrDA LINbus SPI UART USART	Surface Mount	10 mm	64-TQFP	10 mm	16 Bit	Internal	64-TQFP	53	Brown-out Detect DMA POR PWM Reset WDT	16 bit	8 K	3.6 V	3 V	PIC	125 °C	-40 °C	60 MIPs	128 KB	43 K	24	AEC-Q100	Automotive
Microchip Technology PIC24EP128GP206-I/PT	FLASH	10 bit 12 bit	16 count	I2C IrDA LINbus SPI UART USART	Surface Mount	10 mm	64-TQFP	10 mm	16 Bit	Internal	64-TQFP	53	Brown-out Detect DMA POR PWM Reset WDT	16 bit	8 K	3.6 V	3 V	PIC	85 °C	-40 °C	70 MIPs	128 KB	43 K	24
