RNANT Series
Manufacturer: Microchip Technology
Beta
⌘K
EXTERNAL ANTENNA, WHIP, SINGLE BAND, 2.45 GHZ, CONNECTOR MOUNT
| Part | Frequency Range (Max) | Frequency Range (Min) | Mounting Type | Termination Type | Frequency (Center/Band) | Number of Bands | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | Antenna Type | VSWR | Height (Max) | Gain |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

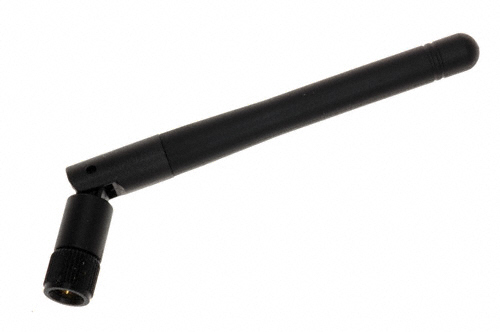

 Microchip Technology | 2.51 GHz | 2.39 GHz | Connector Mount | SMA Male | 2.4 GHz | 1 | 2 GHz | UHF | 3 GHz | Tilt Whip | 1.9 | 3.56 in | 2.2 dBi |

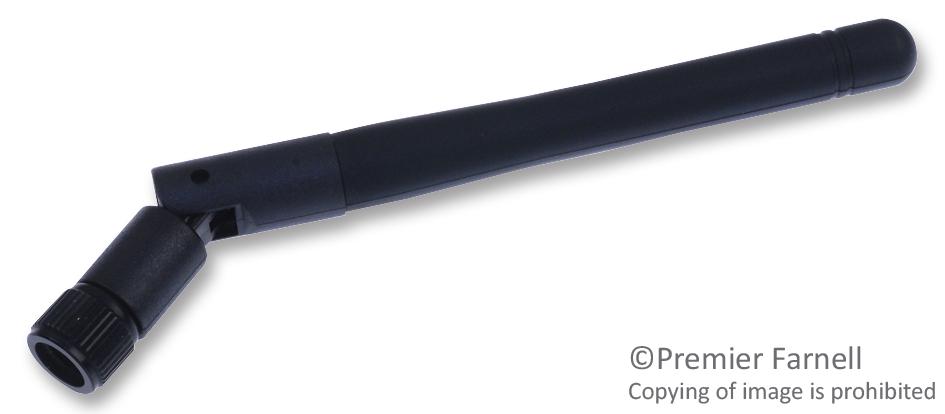

 Microchip Technology | 2.51 GHz | 2.39 GHz | Connector Mount | RP-SMA Male | 2.4 GHz | 1 | 2 GHz | UHF | 3 GHz | Tilt Whip | 1.9 | 3.56 in | 2.2 dBi |

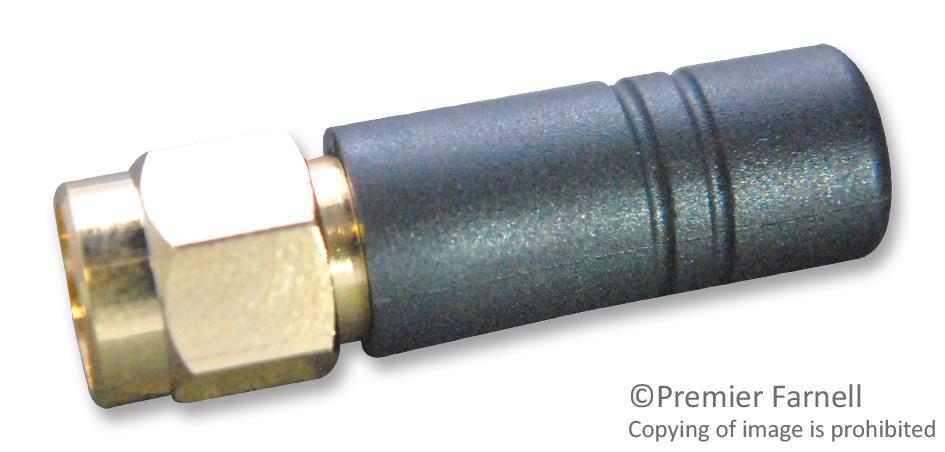

 Microchip Technology | Connector Mount | SMA Male | 2.4 GHz | 1 | 2 GHz | UHF | 3 GHz | Straight Whip | 1.118 in | 0.56 dB | |||

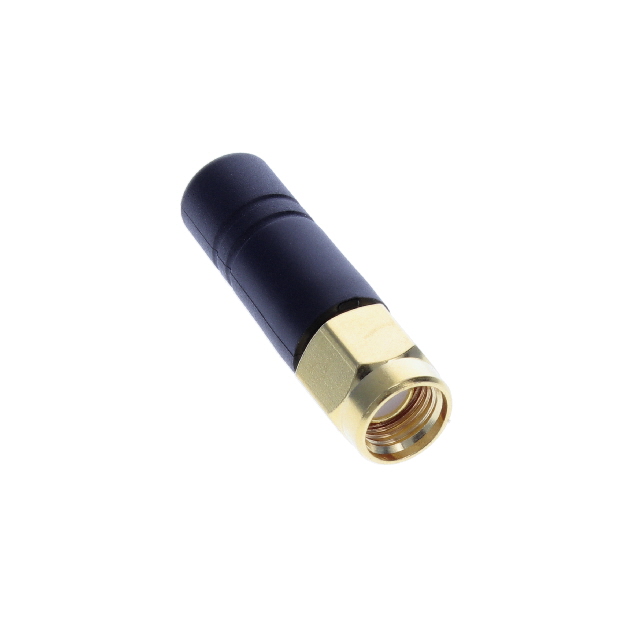

 Microchip Technology | Connector Mount | RP-SMA Male | 2.4 GHz | 1 | 2 GHz | UHF | 3 GHz | Straight Whip | 1.118 in | 0.56 dB | |||
 Microchip Technology | Connector Mount | RP-SMA Male | 2.4 GHz | 1 | 2 GHz | UHF | 3 GHz | Tilt Whip | 7.687 in |
