VP2206 Series

Catalog

MOSFET, P-CHANNEL ENHANCEMENT-MODE, -60V, 0.9 OHM 3 TO-92 T/R ROHS COMPLIANT: YES

Part	Package / Case	Vgs (Max)	Operating Temperature (Min)	Operating Temperature (Max)	FET Type	Drive Voltage (Min Rds On)	Drive Voltage (Max Rds On)	Input Capacitance (Ciss) (Max)	Power Dissipation (Max)	Mounting Type	Current - Continuous Drain (Id) (Tj)	Technology	Vgs(th) (Max)	Drain to Source Voltage (Vdss)	Rds On (Max)	Package Name
Microchip Technology VP2206N3-G-P003	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	20 V	-55 °C	150 °C	P-Channel	10 V	5 V	450 pF	740 mW	Through Hole	640 mA	MOSFET (Metal Oxide)	3.5 V	60 V	900 mOhm	TO-92-3
Microchip Technology VP2206N3-G	TO-226-3 TO-92-3 (TO-226AA)	20 V	-55 °C	150 °C	P-Channel	10 V	5 V	450 pF	740 mW	Through Hole	640 mA	MOSFET (Metal Oxide)	3.5 V	60 V	900 mOhm	TO-92-3

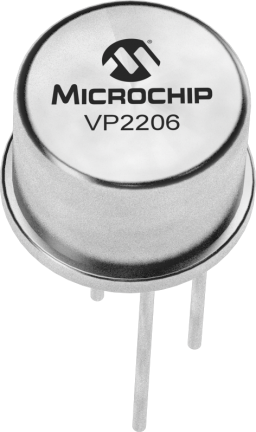

Microchip Technology VP2206N2	TO-205AD TO-39-3 Metal Can	20 V	-55 °C	150 °C	P-Channel	10 V	5 V	450 pF	360 mW	Through Hole	750 mA	MOSFET (Metal Oxide)	3.5 V	60 V	900 mOhm	TO-39
