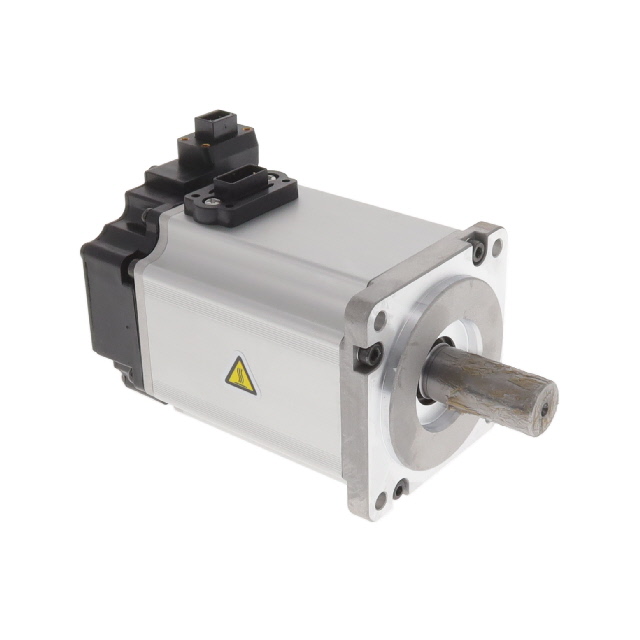

R88M-K40030 Series

Manufacturer: Omron Automation and Safety

Catalog

SERVOMOTOR 3000 RPM 230V

Part	Weight	Approval Agency	Torque - Max Momentary (mNm)	Torque - Max Momentary (oz-in)	Type	Mounting Hole Spacing	Torque - Rated (mNm)	Torque - Rated (oz-in)	Voltage - Rated	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Encoder Type	Termination Style	Diameter - Shaft	Length - Shaft and Bearing	Function	RPM	Operating Temperature (Max)	Power - Rated	Features
Omron Automation and Safety R88M-K40030H	2.6 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	230 VAC	2.362 in	Square	2.362 in	Incremental	Connector	0.433 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W
Omron Automation and Safety R88M-K40030S-S2	2.6 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	120 VDC	2.362 in	Square	2.362 in	Absolute	Connector	0.551 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Key
Omron Automation and Safety R88M-K40030L-S2	2.6 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	120 VDC	2.362 in	Square	2.362 in	Incremental	Connector	0.551 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Key
Omron Automation and Safety R88M-K40030T-OS2	2.6 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	230 VAC	2.362 in	Square	2.362 in	Absolute	Connector	0.433 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Key Oil Seal
Omron Automation and Safety R88M-K40030T-B	3.5 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	230 VAC	2.362 in	Square	2.362 in	Absolute	Connector	0.433 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Brake
Omron Automation and Safety R88M-K40030S-OS2	2.6 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	120 VDC	2.362 in	Square	2.362 in	Absolute	Connector	0.551 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Key Oil Seal
Omron Automation and Safety R88M-K40030L-BOS2	3.5 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	120 VDC	2.362 in	Square	2.362 in	Incremental	Connector	0.551 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Brake Key Oil Seal
Omron Automation and Safety R88M-K40030H-BS2	3.5 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	230 VAC	2.362 in	Square	2.362 in	Incremental	Connector	0.433 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Brake Key
Omron Automation and Safety R88M-K40030H-B	3.5 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	230 VAC	2.362 in	Square	2.362 in	Incremental	Connector	0.433 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Brake
Omron Automation and Safety R88M-K40030S-BS2	3.5 lbs	CE CSA cULus TUV UL	3800 mNm	538.1 oz-in	AC Motor	2.756 in	1300 mNm	184.1 oz-in	120 VDC	2.362 in	Square	2.362 in	Absolute	Connector	0.551 in	1.181 in	Servomotor	3000 RPM	40 °C	400 W	Brake Key
