85214 Series

Low Skew,1-to-5 Differential-to-HSTL Fanout Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew,1-to-5 Differential-to-HSTL Fanout Buffer

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Differential Input	Differential Output	Output Ratio	Input Ratio	Type	Package Name	Package Length	Package Width	Mounting Type	Input	Frequency - Max	Operating Temperature (Max)	Operating Temperature (Min)	Number of Circuits	Output
Renesas Electronics Corporation 85214AGLF	3.135 V	3.465 V	Yes	Yes	5	2	Fanout Buffer (Distribution) Multiplexer	20-TSSOP	0.173 in	4.4 mm	Surface Mount	HCSL LVCMOS LVDS LVHSTL LVPECL LVTTL SSTL	700 MHz	85 °C	0 °C	1	HSTL

Catalog

Low Skew,1-to-5 Differential-to-HSTL Fanout Buffer

Description

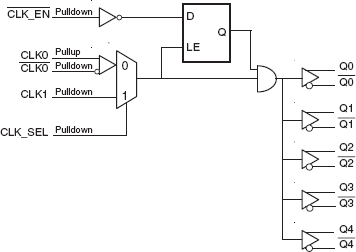

The 85214 is a low skew, high performance 1-to-5 Differential-to-HSTL Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT. The CLK0, CLK0 pair can accept most standard differential input levels. The single ended CLK1 input accepts LVCMOS or LVTTL input levels. Guaranteed output and part-to-part skew characteristics make the 85214 ideal for those clock distribution applications demanding well defined performance and repeatability.
