8609348731 Series

Catalog

CONN DIN HDR 48POS PCB RA GOLD

Part	Material - Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Material Flammability Rating	Number of Positions Loaded	Mounting Type	Number of Rows	Connector Type	Contact Finish	Level, Class	Features	Pitch	Termination	Number of Positions	Style
Amphenol ICC (FCI) 86093487313H65E1LF	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold	1	Board Lock	0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313H55PRLF	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold		Board Lock	0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313H45000E1	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold	3	Board Lock	0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313785ELF	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold			0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313765E1LF	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold	1	Board Lock	0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313H65000E1	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold	1	Board Lock	0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313H55BWLF	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold		Board Lock	0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313765BBLF	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold	1		0.1 in	Solder	48

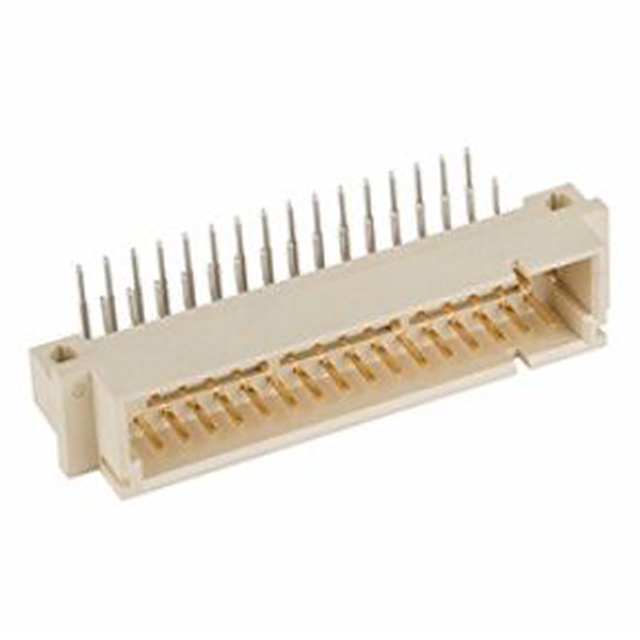

Amphenol ICC (FCI) 86093487313T55F1LF	Polyester Thermoplastic	125 °C	-55 °C	15 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold Gold GXT™	2		0.1 in	Solder	48	C/2 (1/2 C)
Amphenol ICC (FCI) 86093487313755E1LF	Polyester Thermoplastic	125 °C	-55 °C	1.5 A	UL94 V-0	All	Right Angle Through Hole	3	Header Male Pins	Gold	2		0.1 in	Solder	48	C/2 (1/2 C)
