D6F-50 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

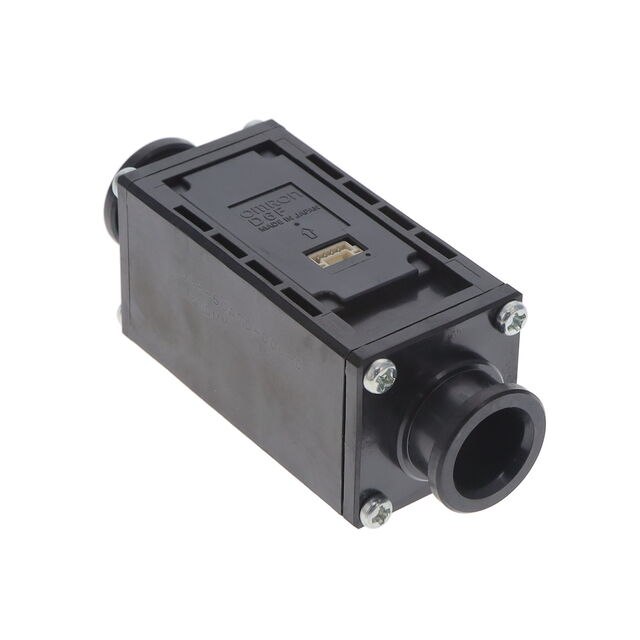

FLOW SENSOR MEMS 50L/MIN
| Part | Port Feature | Port Diameter | Sensing Range (Max) | Sensing Range (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Flow Sensor Type | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Material - Body | Port Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | RC | 0.25 in 0.25 " | 50 LPM | 0 GPM | 60 °C | -10 °C | Air | 10.8 V | 26.4 V | Thermoplastic resin / Aluminum alloy | |
 Omron Electronics Inc-EMC Div | 0.196 " | 50 LPM | 0 GPM | 60 °C | -10 °C | Air | 10.8 V | 26.4 V | Thermoplastic resin / Aluminum alloy | ||
 Omron Electronics Inc-EMC Div | 0.511 " | 50 LPM | 0 GPM | 60 °C | -10 °C | Air | 3 V | 3.6 V | Polyphenylene Sulfide (PPS) | Female |
