GFTX Series
Manufacturer: Curtis Industries
Beta
⌘K

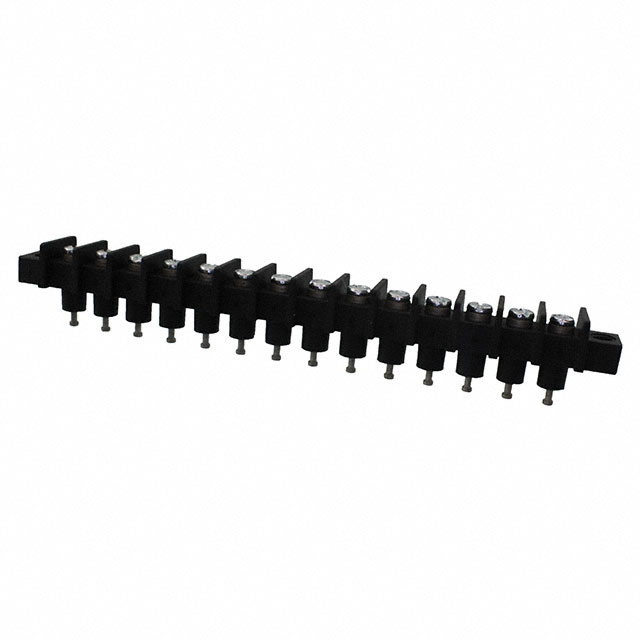

CONN BARRIER STRP 14CIRC 0.438"
| Part | Mounting Type | Material Flammability Rating | Terminal Screw Material | Material - Insulation | Operating Temperature | Color | Bottom Termination | Terminal Block Type | Number of Circuits | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Number of Wire Entries | Number of Rows | Features | Pitch | Barrier Type | Top Termination | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 14 | 12 AWG | 22 AWG | 14 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 23 | 12 AWG | 22 AWG | 23 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 3 | 12 AWG | 22 AWG | 3 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 17 | 12 AWG | 22 AWG | 17 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 4 | 12 AWG | 22 AWG | 4 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 12 | 12 AWG | 22 AWG | 12 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 2 | 12 AWG | 22 AWG | 2 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 8 | 12 AWG | 22 AWG | 8 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
 Curtis Industries | Chassis Panel | UL94 V-0 | Steel | Polyphenylene Oxide PPO | 110 °C | Black | Insulated Solder Turret | Barrier Block | 22 | 12 AWG | 22 AWG | 22 | 1 | Flange | 0.438 in | 2 Wall (Dual) | Screws | 20 A |
