PL611-01 Series

PicoPLL Programmable Clock

Catalog

PicoPLL Programmable Clock

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	PLL	Type	Input	Package Name	Mounting Type	Output	Input Ratio	Output Ratio	Frequency - Max	Frequency - Max	Operating Temperature (Max)	Multiplier	Divider	Differential Output	Differential Input	Package / Case	Number of Circuits	Package Width	Package Length
Microchip Technology PL611-01-F93TC-R	2.25 V	3.63 V	Yes with Bypass	Frequency Synthesizer	Clock	SOT-23-6	Surface Mount	Clock	1	2	27MHz 60MHz	27 MHz 60 MHz	70 °C	No	Yes	No	No	SOT-23-6	1

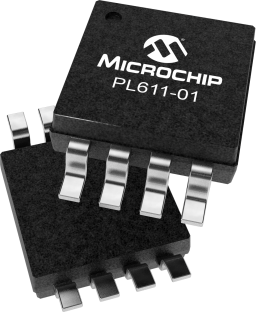

Microchip Technology PL611-01-N12MC	2.25 V	3.63 V	Yes with Bypass	Frequency Synthesizer	Clock	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	Clock	1	2	22.579MHz 24.576MHz 24MHz	22.579 MHz 24 MHz 24.576 MHz	70 °C	No	Yes	No	No		1	3 mm	0.118 in
Microchip Technology PL611-01-F93TC	2.25 V	3.63 V	Yes with Bypass	Frequency Synthesizer	Clock	SOT-23-6	Surface Mount	Clock	1	2	27MHz 60MHz	27 MHz 60 MHz	70 °C	No	Yes	No	No	SOT-23-6	1
Microchip Technology PL611-01-N12MC-R	2.25 V	3.63 V	Yes with Bypass	Frequency Synthesizer	Clock	8-MSOP 8-TSSOP 8-MSOP	Surface Mount	Clock	1	2	22.579MHz 24.576MHz 24MHz	22.579 MHz 24 MHz 24.576 MHz	70 °C	No	Yes	No	No		1	3 mm	0.118 in

Catalog

PicoPLL Programmable Clock

Description

[CREATE AND SAMPLE YOUR CUSTOM PL611 HERE](https://clockworks.microchip.com/microchip/design/inputPL611) The PL611-01 is a low-cost general purpose frequency synthesizer and a member of Programmable Clock family. PL611-01 product family offers the versatility of using a single Crystal or Reference Clock input and producing up to three different system clocks. They can generate any output frequency up to 200MHz from fundamental crystal input between 10MHz - 30MHz, or a 3rd overtone crystal of up to 75Mhz, or a Reference clock input of up to 200MHz. Cascading of the ICs to produce additional clock frequencies is also supported.
