ADSP-21991 Series

High-Performance Mixed-Signal DSP, 160 MHz, 32K Words Program Memory RAM

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

High-Performance Mixed-Signal DSP, 160 MHz, 32K Words Program Memory RAM

Part	Type	Operating Temperature (Min)	Operating Temperature (Max)	Clock Rate (Frequency)	Mounting Type	Voltage - I/O	Voltage - Core	On-Chip RAM	Non-Volatile Memory Type	Interface	Package Name	Package Length	Package Width	Package / Case
Analog Devices Inc./Maxim Integrated ADSP-21991BBC	Fixed Point	-40 °C	85 °C	150 MHz	Surface Mount	3.3 V	2.5 V	112 kB	External	SPI SSP	196-MBGA	15 mm	15 mm	196-BGA CSPBGA
Analog Devices Inc./Maxim Integrated ADSP-21991BSTZ	Fixed Point	-40 °C	85 °C	160 MHz	Surface Mount	3.3 V	2.5 V	112 kB	External	SPI SSP	176-LQFP	24 mm	24 mm	176-LQFP

Catalog

High-Performance Mixed-Signal DSP, 160 MHz, 32K Words Program Memory RAM

Description

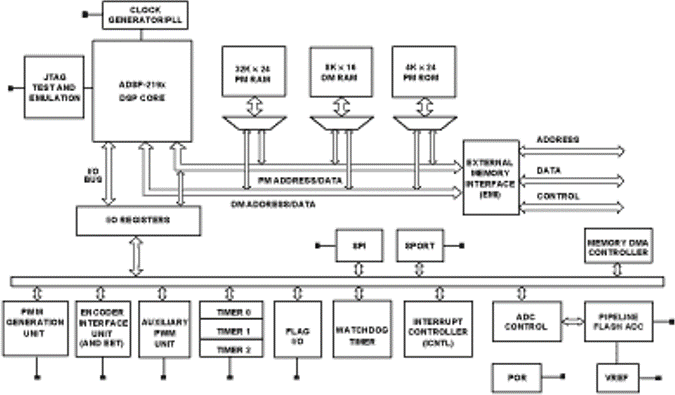

The ADSP-21991 extends the ADSP-2199x mixed signal DSP product family by offering increased memory integration compared with the ADSP-21990. The ADSP-21991 integrates a 160 MHz, 16-bit, ADSP-219x DSP core and an 8-channel, 14-bit, 20 MSPS ADC (with dual sample-and-hold amplifiers for simultaneous sampling). Additional mixed-signal integration includes a precision on-chip voltage reference, and a power-on-reset (POR) circuit. Various control peripherals are provided for single-chip solutions for embedded control and signal processing applications.
