2324579 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HOUSING, PLUG, 8P, DUAL ROW, EP2.5

Part	Note	Number of Rows	Insulation Material	Fastening Type	Row Spacing	Color	Number of Positions	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Pitch	Connector Type	Contact Type
TE Connectivity AMP Connectors 2324579-8	Contacts Not Included	2	Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.098 in	Natural	8	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket
TE Connectivity AMP Connectors 2-2324579-8	Contacts Not Included	2	Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.098 in	Natural	28	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket

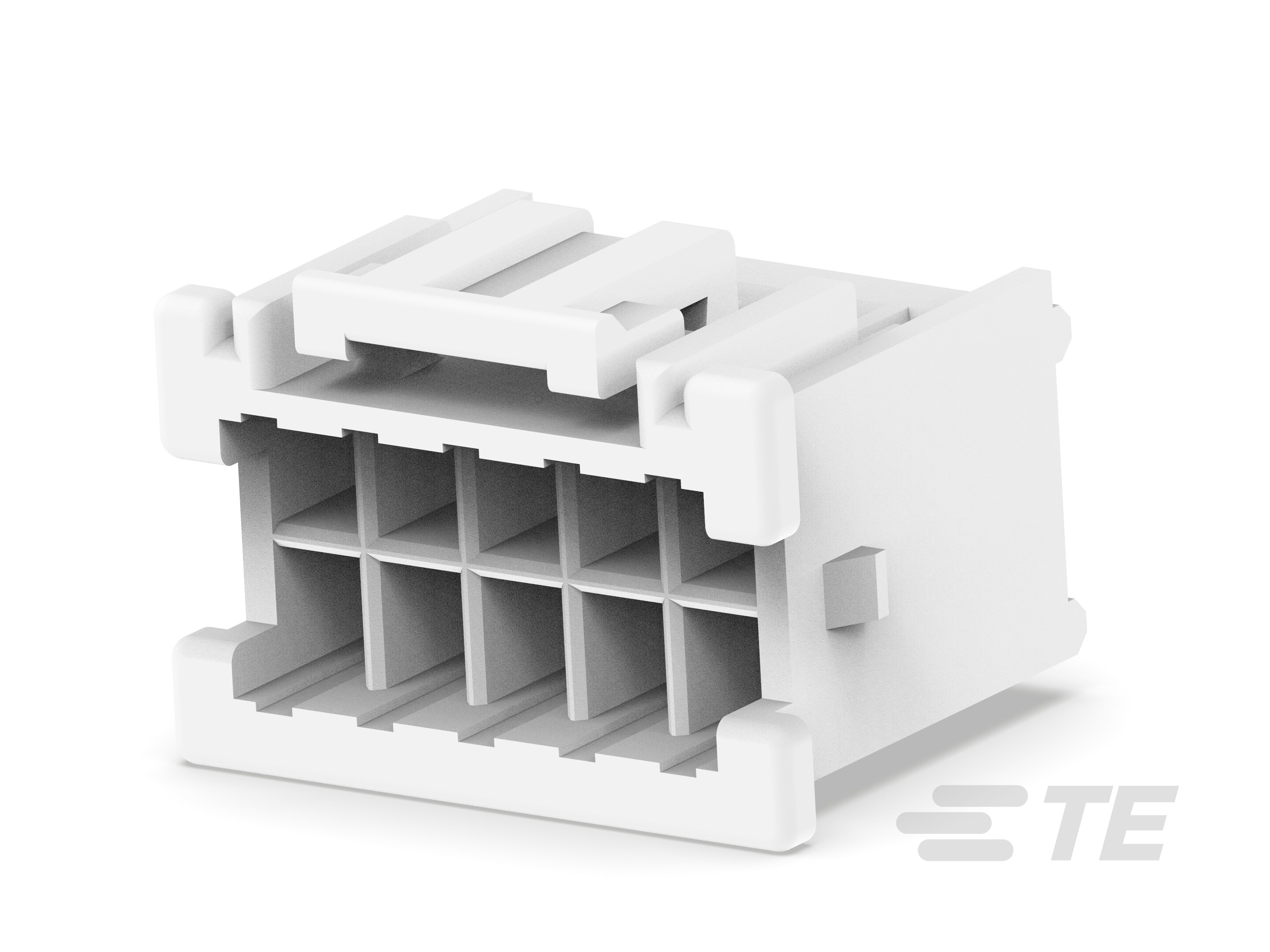

TE Connectivity AMP Connectors 1-2324579-0	Contacts Not Included	2	Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.098 in	Natural	10	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket

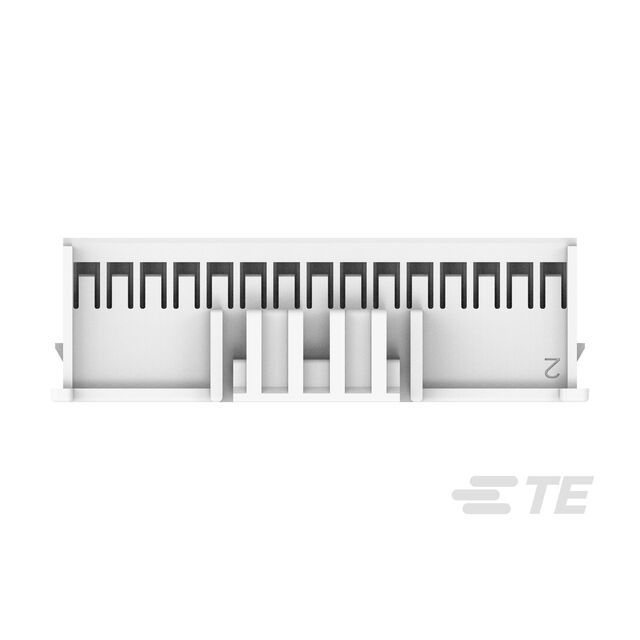

TE Connectivity AMP Connectors 3-2324579-0	Contacts Not Included	2	Nylon 6/6 Polyamide (PA66)	Latch Holder	0.098 in	Natural	30	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket
TE Connectivity AMP Connectors 2-2324579-6		2	Nylon 6/6 Polyamide (PA66)	Latch Holder	0.098 in	Natural	26	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket

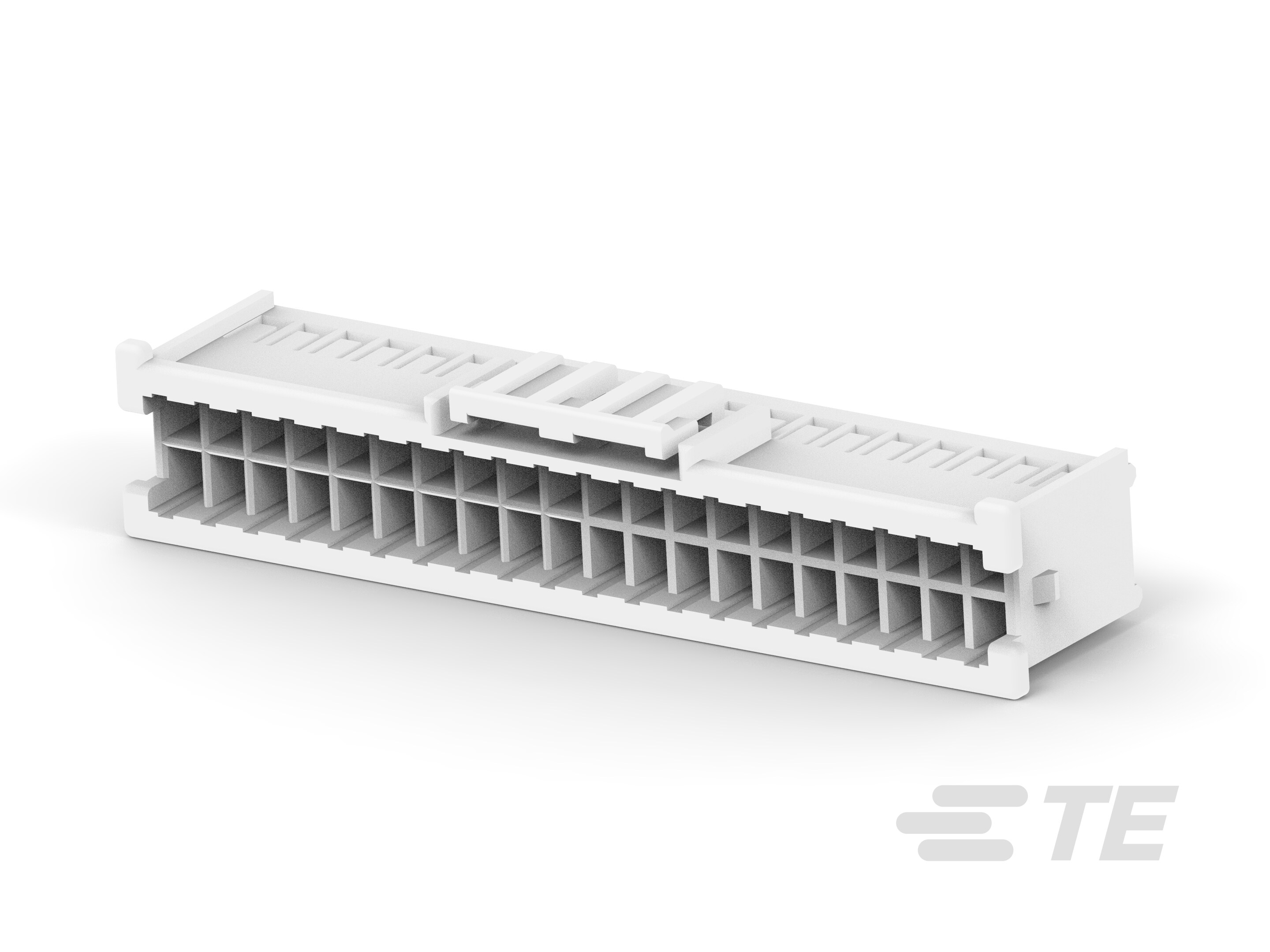

TE Connectivity AMP Connectors 4-2324579-0		2	Nylon 6/6 Polyamide (PA66)	Latch Holder	0.098 in	Natural	40	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket
TE Connectivity AMP Connectors 1-2324579-2	Contacts Not Included	2	Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.098 in	Natural	12	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket

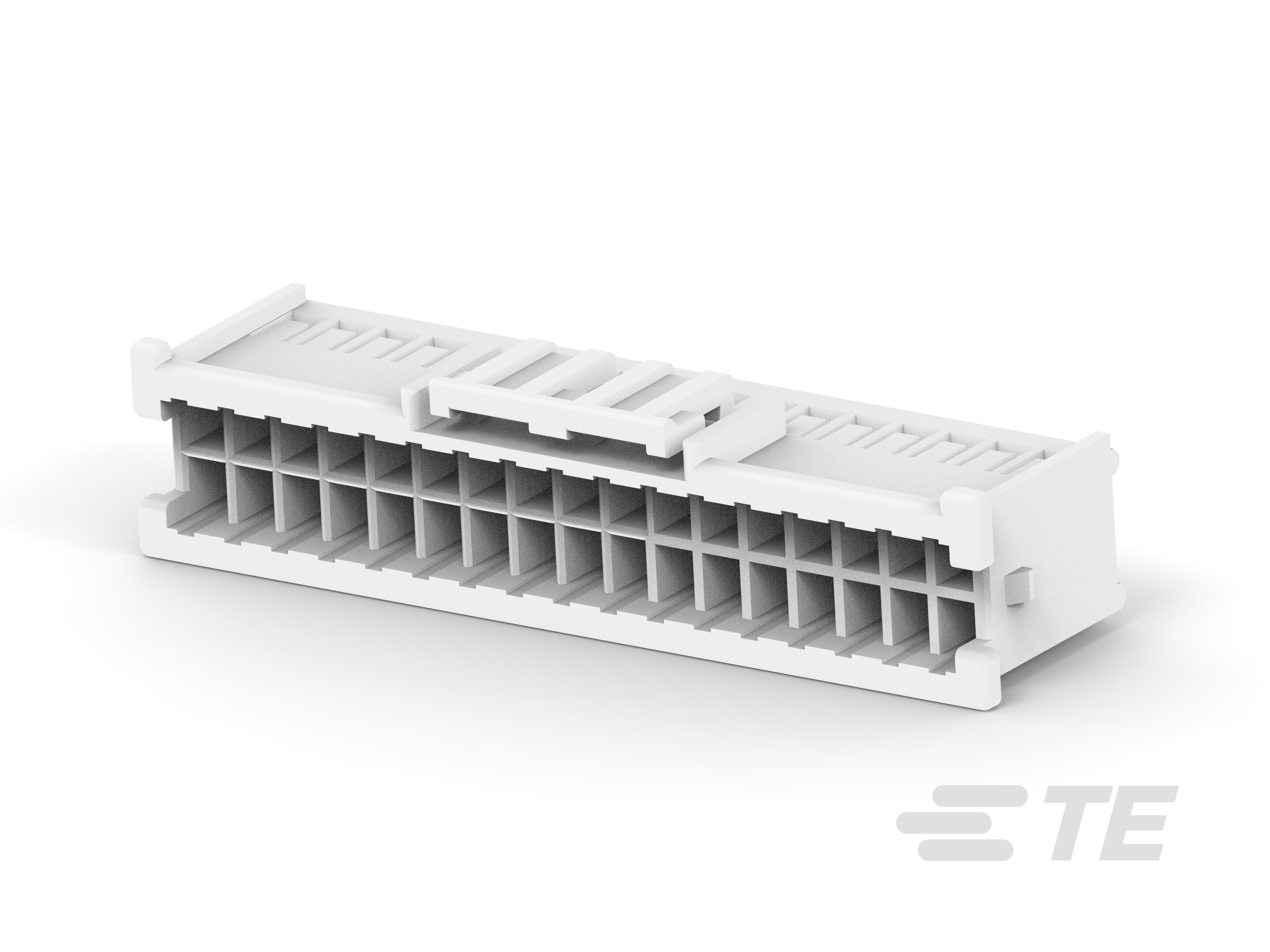

TE Connectivity AMP Connectors 3-2324579-4		2	Nylon 6/6 Polyamide (PA66)	Latch Holder	0.098 in	Natural	34	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket
TE Connectivity AMP Connectors 1-2324579-4	Contacts Not Included	2	Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.098 in	Natural	14	Crimp	-55 °C	105 °C	Free Hanging (In-Line)	0.098 in	Plug	Female Socket
