32553 Series

Catalog

SENSOR 14.5PSIG 0.12" 16BIT

Part	Port Diameter	Port Gender	Port Feature	Port Style	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Output Type	Pressure Type	Applications	Operating Pressure (Min)	Operating Pressure (Max)	Termination Style	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Output Bits	Features	Accuracy	Maximum Pressure

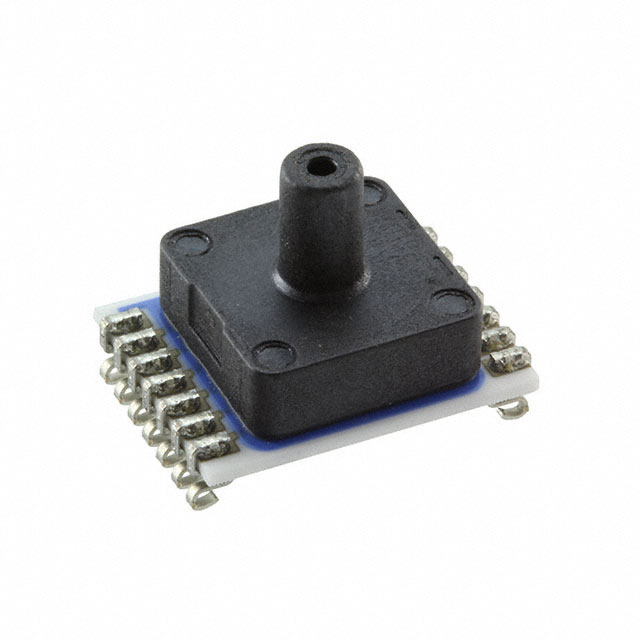

TE Connectivity AMP Connectors 325536008-00	0.12 in	Male	Tube	Barbless	-40 °C	85 °C	Surface Mount	SPI	Vented Gauge	Board Mount	-5.8 PSI	14.5 PSI	SMD (SMT) Tab	3.6 V	2.2 V	14-SMD Module	16 b

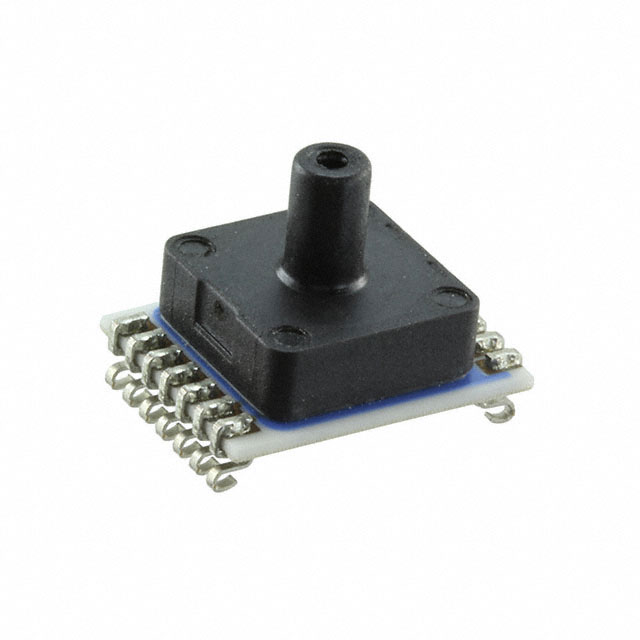

TE Connectivity AMP Connectors 325536009-00	0.12 in	Male	Tube	Barbless	-40 °C	85 °C	Surface Mount	SPI	Vented Gauge	Board Mount	-14.5 PSI	5.8 PSI	SMD (SMT) Tab	3.6 V	2.2 V	14-SMD Module	16 b
TE Connectivity AMP Connectors 325534009-50				No Port	-40 °C	125 °C		SPI	Absolute	Board Mount	0.15 PSI	15.95 PSI	SMD (SMT) Tab	3.6 V	2.2 V	Module	16 b	Temperature Compensated	0.022 PSI	145.04 PSI
TE Connectivity AMP Connectors 325535009-50													PCB			Module
