V1-G Series

Catalog

SENSOR CONNECTOR, M12, RECEPTACLE, 4 CONTACTS, SCREW SOCKET, STRAIGHT CABLE MOUNT

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Backshell Material, Plating	Features	Number of Positions	Shell Size - Insert	Shell Finish	Termination	Color	Cable Opening (Max)	Cable Opening (Min)	Applications	Mounting Type	Current Rating	Material Flammability Rating	Fastening Type	Primary Material	Shielding	Orientation	Voltage Rating	Connector Type	Shell Material	Contact Material	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating (Type)

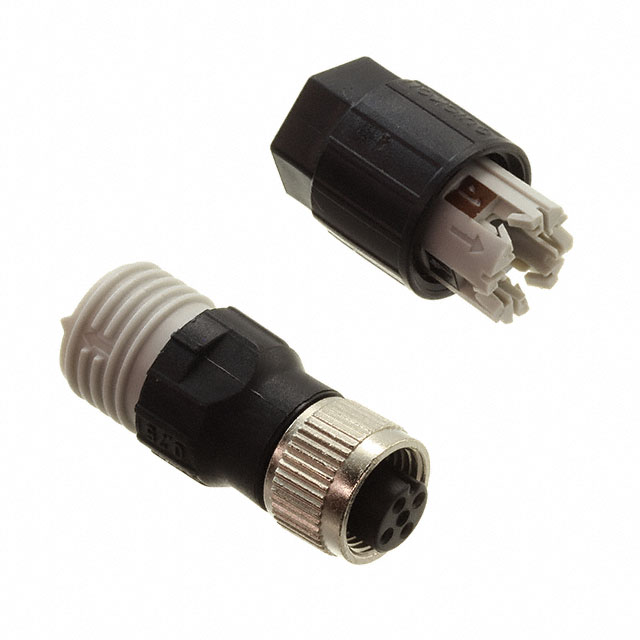

Pepperl+Fuchs, Inc. V1-G-Q2	-25 °C	80 °C	Gold	Nylon 6/6 Polyamide (PA66)	Backshell Coupling Nut	4	M12-4	Nickel	IDC	Black Silver	0.315 in	0.157 in	Industrial Automation	Free Hanging (In-Line)	4 A	UL94 V-0	Threaded	Metal	Unshielded	Keyed	250 V	Female Sockets Plug	Zinc Die Cast	Copper Tin	Dust Tight Water Resistant Waterproof	IP65 IP67

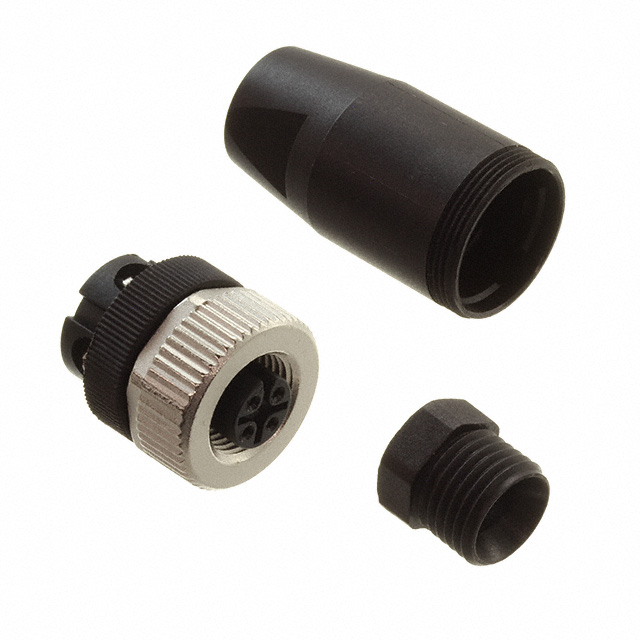

Pepperl+Fuchs, Inc. V1-G-BK	-40 °C	85 °C	Copper Tin Zinc	Nylon Polyamide (PA)	Backshell Coupling Nut	4	M12-4	Nickel	Screw	Black Silver	0.236 in	0.157 in	Industrial Automation	Free Hanging (In-Line)	4 A		Threaded	Metal	Unshielded	Keyed	250 V	Female Sockets Plug	Copper Zinc	Copper Zinc	Dust Tight Waterproof	IP67	DC

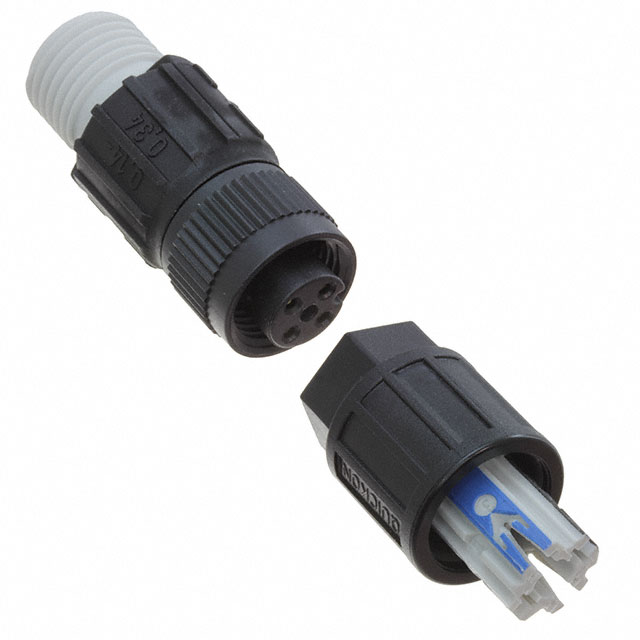

Pepperl+Fuchs, Inc. V1-G-Q3	-25 °C	80 °C	Gold	Nylon 6/6 Polyamide (PA66)	Backshell Coupling Nut	4	M12-4		IDC	Black	0.236 in	0.138 in	Industrial Automation	Free Hanging (In-Line)	4 A	UL94 V-0	Threaded	Plastic	Unshielded	Keyed	125 V	Female Sockets Plug	Plastic	Copper Tin	Dust Tight Water Resistant Waterproof	IP65 IP67

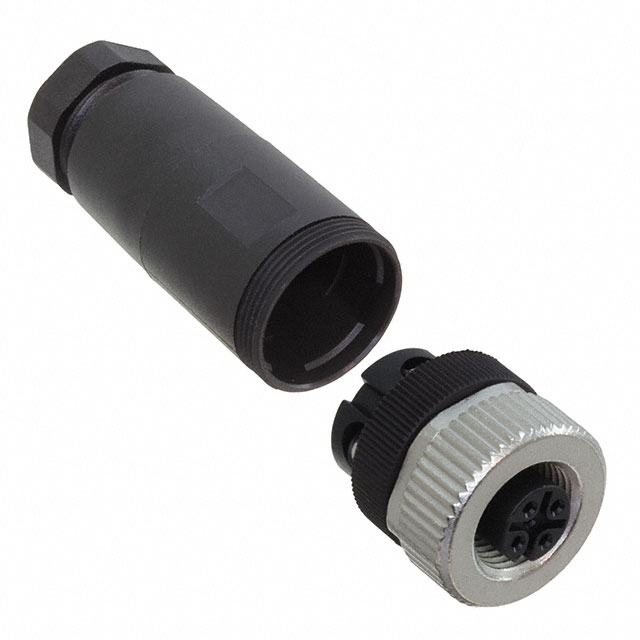

Pepperl+Fuchs, Inc. V1-G-PG9	-25 °C	85 °C	Copper Tin Zinc	Nylon Polyamide (PA)	Backshell Coupling Nut	4	M12-4	Nickel	Screw	Black Silver	0.315 in	0.236 in	Industrial Automation	Free Hanging (In-Line)	4 A		Threaded	Metal	Unshielded	Keyed	250 V	Female Sockets Plug	Copper Zinc	Copper Zinc	Dust Tight Waterproof	IP67	DC
