IXTC220 Series
Manufacturer: LITTELFUSE
Beta
⌘K
MOSFET N-CH 55V 130A ISOPLUS220
| Part | Package / Case | Input Capacitance (Ciss) (Max) | Mounting Type | Technology | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Max) | Vgs(th) (Max) | Vgs (Max) | FET Type | Operating Temperature (Min) | Operating Temperature (Max) | Rds On (Max) | Current - Continuous Drain (Id) (Tc) | Power Dissipation (Max) | Package Name | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

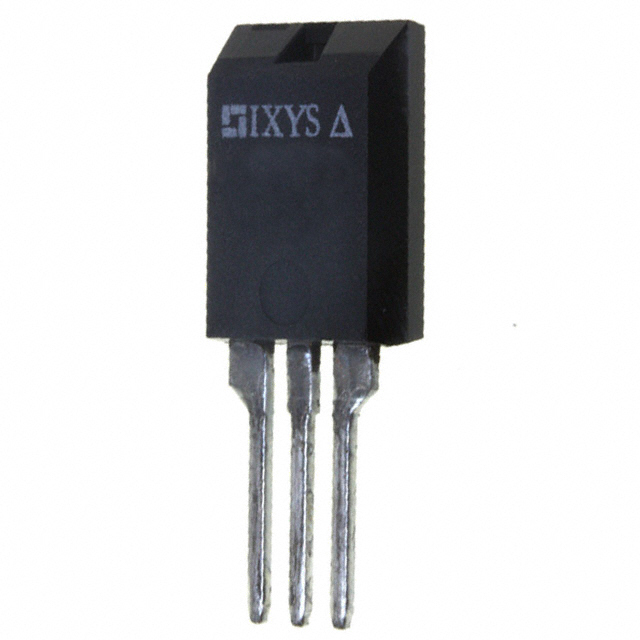

 LITTELFUSE | ISOPLUS220™ | 7200 pF | Through Hole | MOSFET (Metal Oxide) | 10 V | 158 nC | 4 V | 20 V | N-Channel | -55 °C | 175 °C | 4.4 mOhm | 130 A | 150 W | ISOPLUS220™ | 55 V |

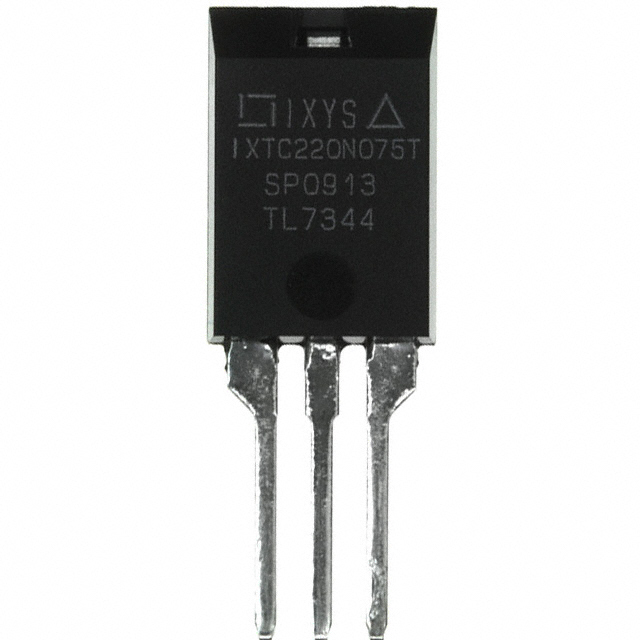

 LITTELFUSE | ISOPLUS220™ | 7700 pF 7700 pF | Through Hole | MOSFET (Metal Oxide) | 10 V | 165 nC | 4 V | 20 V | N-Channel | -55 °C | 175 °C | 5 mOhm | 115 A | 150 W | ISOPLUS220™ | 75 V |
