208658 Series
Manufacturer: Molex
Beta
⌘K

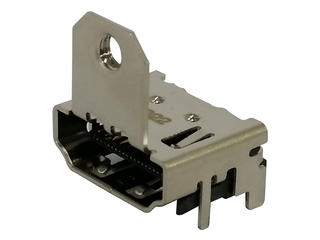

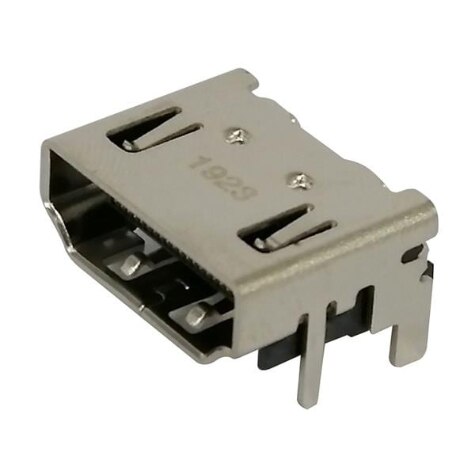

HDMI V2.1 RECEPTACLE, RIGHT-ANGLE, GOLD FLASH PLATING, 1.80MM TAB, WITH FLANGE, TRAY, 19 CIRCUITS
| Part | Mounting Type | Current Rating | Number of Ports | Mounting Feature | Voltage - Rated | Mating Cycles | Shielding | Connector Type | Number of Contacts | Operating Temperature (Max) | Operating Temperature (Min) | Specifications | Termination | Gender | Current Rating (Per Contact) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Right Angle Surface Mount Through Hole | 0.5 A | 1 | Flange Horizontal | 40 V | 10000 cycles | Shielded | HDMI | 19 | 85 °C | -20 °C | HDMI 2.1 | Solder | Receptacle | |
 Molex | Right Angle Surface Mount Through Hole | 0.5 A | 1 | Flange Horizontal | 40 V | 10000 cycles | Shielded | HDMI | 19 | 85 °C | -20 °C | HDMI 2.1 | Solder | Receptacle | |
Molex | Right Angle Surface Mount Through Hole | 0.5 A | 1 | Flange Horizontal | 40 V | 10000 cycles | Shielded | HDMI | 19 | 85 °C | -20 °C | HDMI 2.1 | Solder | Receptacle | 500 mA |
 Molex | Right Angle Surface Mount Through Hole | 0.5 A | 1 | Horizontal | 40 V | 10000 cycles | Shielded | HDMI | 19 | 85 °C | -20 °C | HDMI 2.1 | Solder | Receptacle | |
 Molex | Right Angle Surface Mount Through Hole | 0.5 A | 1 | Horizontal | 40 V | 10000 cycles | Shielded | HDMI | 19 | 85 °C | -20 °C | HDMI 2.1 | Solder | Receptacle | |
 Molex | 1 | HDMI | 19 | HDMI 2.1 |
