413760 Series

Catalog

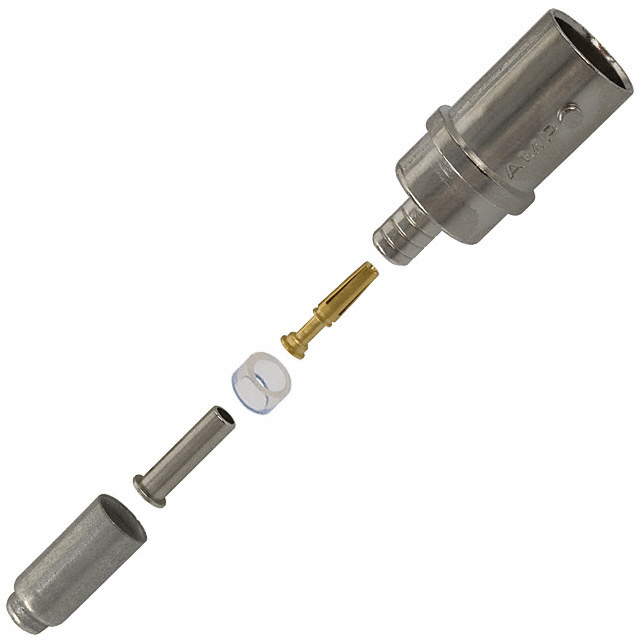

CONN BNC JACK STR 75 OHM CRIMP

Part	Cable Group	Connector Type	Housing Color	Center Contact Material	Mounting Type	Number of Ports	Frequency - Max	Connector Style	Impedance	Shield Termination	Contact Termination	Fastening Type	Dielectric Material	Mating Cycles	Includes Total Count	Includes	Insertion Loss	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Voltage Rating	Body Material
TE Connectivity AMP Connectors 413760-9	9259 9266 Belden 9240 RG-59	Female Socket Jack	Silver	Beryllium Copper	Free Hanging (In-Line)	1	2 GHz	BNC	75 Ohm	Crimp	Crimp	Bayonet Lock	Polyethylene (PE)	500 cycles	3 pcs	Connector Contact Ferrule	0.15 dB	Gold	-55 °C	85 °C	Nickel	500 V	Zinc
TE Connectivity AMP Connectors 413760-1	Belden 88241	Female Socket Jack	Silver	Beryllium Copper	Free Hanging (In-Line)	1	2 GHz	BNC	75 Ohm	Crimp	Crimp	Bayonet Lock	Polyethylene (PE)	500 cycles	3 pcs	Connector Contact Ferrule	0.15 dB	Gold	-55 °C	85 °C	Nickel	500 V	Zinc
TE Connectivity AMP Connectors 413760-8	179A 179B 187 187A RG-179	Female Socket Jack	Silver	Beryllium Copper	Free Hanging (In-Line)	1	2 GHz	BNC	75 Ohm	Crimp	Crimp	Bayonet Lock	Polyethylene (PE)	500 cycles	3 pcs	Connector Contact Ferrule	0.15 dB	Gold	-55 °C	85 °C	Nickel	500 V	Zinc
