EW-05-11 Series

Catalog

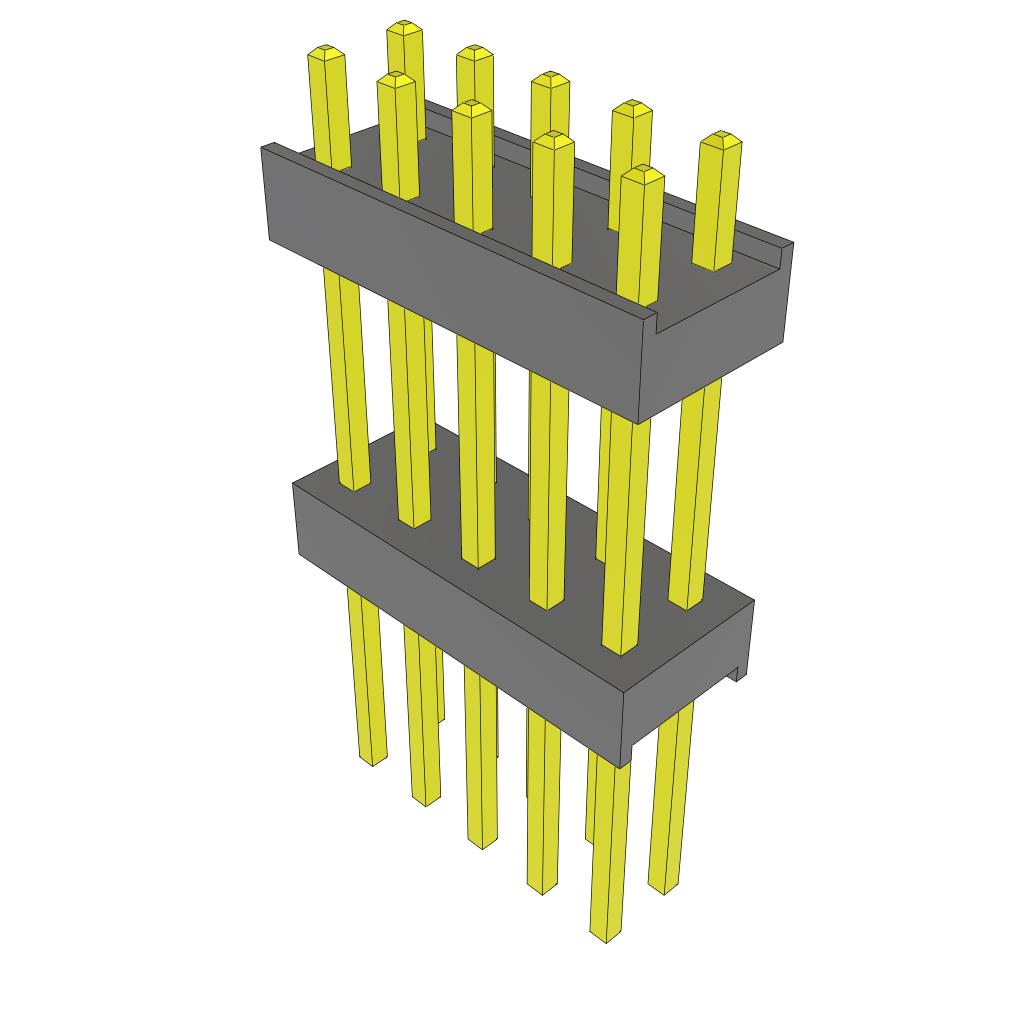

CONN BOARD STACKER HDR 5 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Part	Number of Rows	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail	Length - Tail	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Color	Number of Positions	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. EW-05-11-S-S-480	1	Gold	30 µin	0.76 µm	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	3.048 mm	0.12 in	2.54 mm	0.1 in	Solder	0.48 in	12.192 mm	Black
Samtec Inc. EW-05-11-G-D-400	2	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	5.08 mm	0.2 in	2.54 mm	0.1 in	Solder	0.4 in	10.16 mm	Black	10	0.1 in	2.54 mm
Samtec Inc. EW-05-11-G-D-300	2	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	7.62 mm	0.3 in	2.54 mm	0.1 in	Solder	0.3 in	7.62 mm	Black	10	0.1 in	2.54 mm
Samtec Inc. EW-05-11-L-D-250	2	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	8.89 mm	0.35 in	2.54 mm	0.1 in	Solder	0.25 in	6.35 mm	Black	10	0.1 in	2.54 mm
Samtec Inc. EW-05-11-L-D-490	2	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	2.794 mm	0.11 in	2.54 mm	0.1 in	Solder	0.49 in	12.446 mm	Black	10	0.1 in	2.54 mm
Samtec Inc. EW-05-11-G-D-500	2	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	2.54 mm	0.1 in	2.54 mm	0.1 in	Solder	0.5 in	12.7 mm	Black	10	0.1 in	2.54 mm
Samtec Inc. EW-05-11-L-S-515	1	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	2.159 mm	0.085 in	2.54 mm	0.1 in	Solder	0.515 in	13.081 mm	Black
Samtec Inc. EW-05-11-T-D-390	2	Tin			0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	5.334 mm	0.21 in	2.54 mm	0.1 in	Solder			Black	10	0.1 in	2.54 mm	0.39 in	9.906 mm
Samtec Inc. EW-05-11-L-D-500	2	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	2.54 mm	0.1 in	2.54 mm	0.1 in	Solder	0.5 in	12.7 mm	Black	10	0.1 in	2.54 mm
Samtec Inc. EW-05-11-G-S-295	1	Gold	10 Áin	0.25 Ám	0.33 in	8.382 mm	0.93 in	23.622 mm	Through Hole	7.747 mm	0.305 in	2.54 mm	0.1 in	Solder	0.295 in	7.493 mm	Black
