413996 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

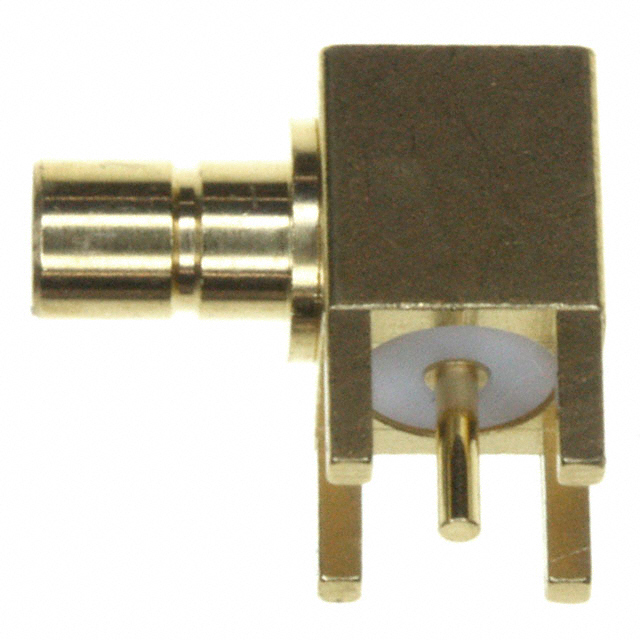

CONN SMB RCPT R/A 50 OHM PCB
| Part | Dielectric Material | Body Finish | Insertion Loss | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Body Material | Center Contact Plating | Fastening Type | Number of Ports | Housing Color | Connector Style | Mounting Type | Frequency - Max | Shield Termination | Center Contact Material | Impedance | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Nickel | 0.6 dB | 500 cycles | -65 °C | 165 °C | 335 V | Brass | Gold | Snap-On | 1 | Silver | SMB | Right Angle Through Hole | 4 GHz | Solder | Beryllium Copper | 50 Ohm | Male Pin Receptacle | Solder |
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Gold | 0.6 dB | 500 cycles | -65 °C | 165 °C | 335 V | Brass | Gold | Snap-On | 1 | Gold | SMB | Right Angle Through Hole | 4 GHz | Solder | Beryllium Copper | 50 Ohm | Male Pin Receptacle | Solder |
