748483 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

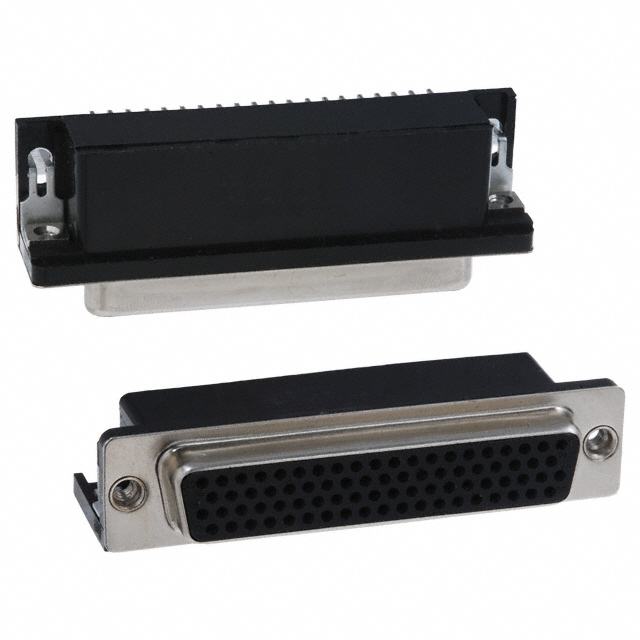

CONN D-SUB HD RCPT 78P R/A SLDR
| Part | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Color | Dielectric Material | Voltage Rating | Current Rating (Amps) | Connector Style | Contact Material | Contact Type | Material Flammability Rating | Mounting Type | Contact Finish | Termination | Number of Positions | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | 0.76 Ám | 30 Áin | Black | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 125 VDC | 2 A | D-Sub High Density | Phosphor Bronze | Signal | UL94 V-0 | Through Hole Right Angle | Gold | Solder | 78 | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | Nickel Plated Steel | |
TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | Black | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 125 VDC | 2 A | D-Sub High Density | Phosphor Bronze | Signal | UL94 V-0 | Through Hole Right Angle | Gold | Solder | 78 | Female Screwlock (4-40) Mating Side | 105 ░C | -55 °C | Nickel Plated Steel | Flash |
