2301838 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

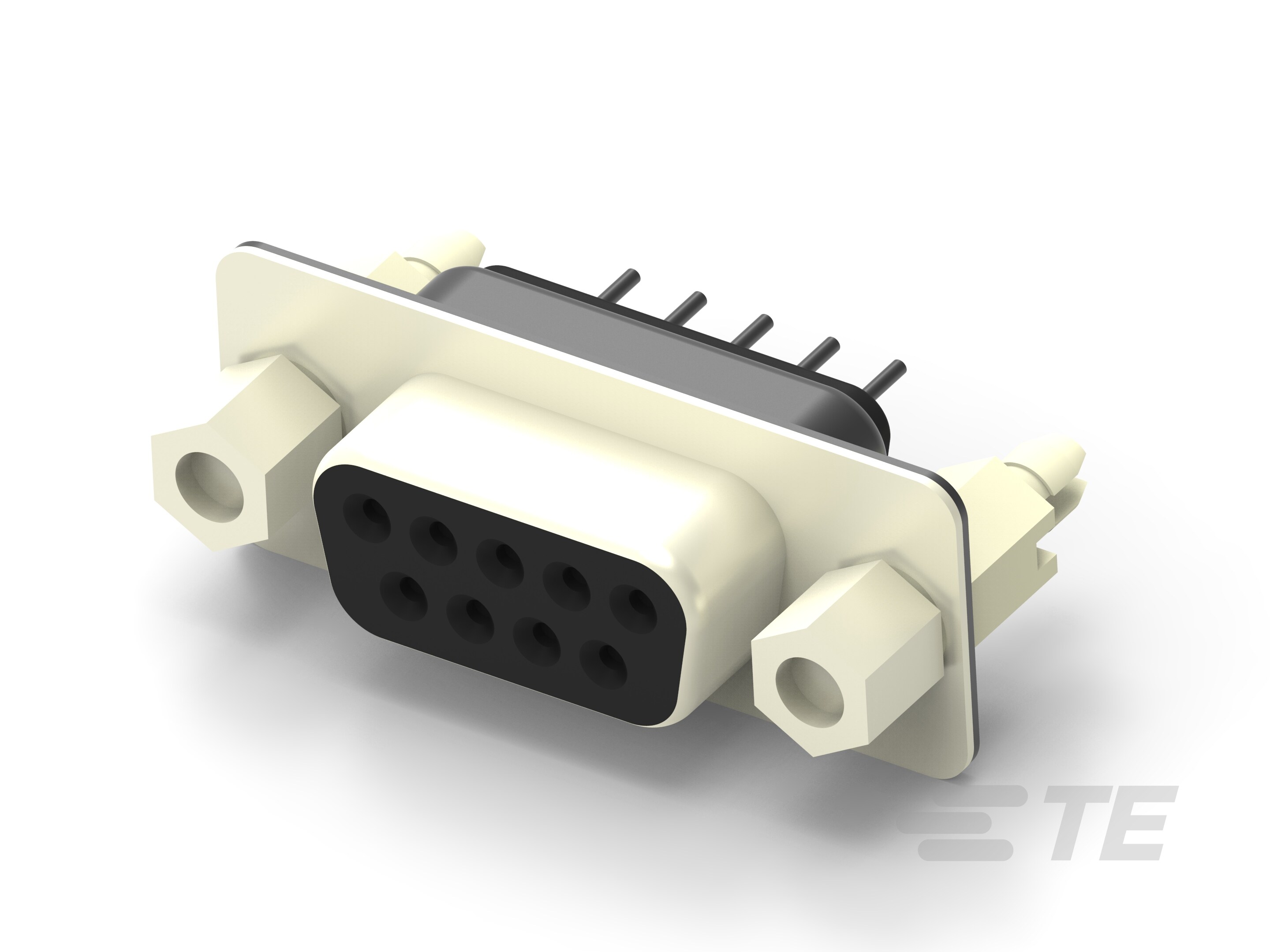

D SUB CONNECTOR, STANDARD, RECEPTACLE, 9 CONTACTS, DE, SOLDER
| Part | Features | Contact Finish | Contact Type | Flange Feature | Number of Positions | Termination | Connector Style | Connector Type | Material Flammability Rating | Finish | Shell Material | Contact Finish Thickness | Shell Size | Connector Layout | Number of Rows | Mounting Type | Current Rating | Voltage Rating | Color | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board Lock | Gold | Signal | Board Side (4-40) | 9 | Solder | D-Sub | Female Sockets Receptacle | UL94 V-0 | Tin-Nickel Plated | Steel | 15 µin | 1 | DE E | 2 | Through Hole | 1.5 A | 250 V | Black | Glass Filled Polybutylene Terephthalate (PBT) | -55 °C | 105 °C | Brass |
 TE Connectivity AMP Connectors | Board Lock | Gold | Signal | Female Screwlock (4-40) Mating Side | 9 | Solder | D-Sub | Female Sockets Receptacle | UL94 V-0 | Tin-Nickel Plated | Steel | 15 µin | 1 | DE E | 2 | Through Hole | 1.5 A | 250 V | Black | Glass Filled Polybutylene Terephthalate (PBT) | -55 °C | 105 °C | Brass |
