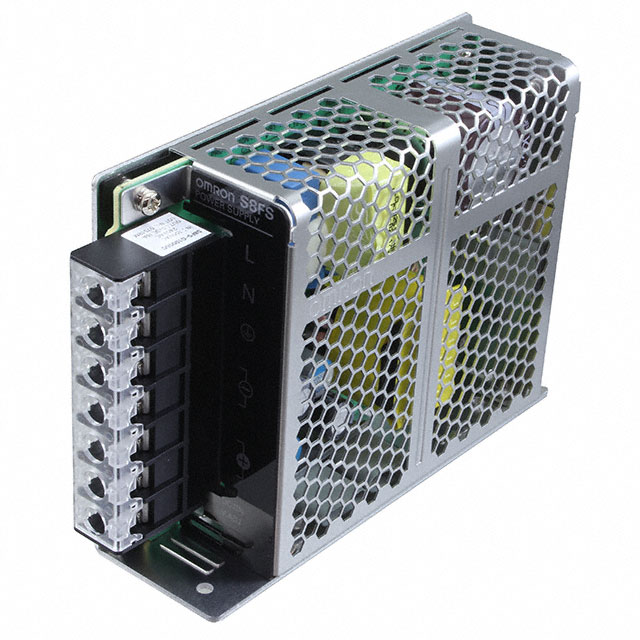

S8FS-G100 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
AC/DC CONVERTER 5V 80W
| Part | Number of Outputs | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Mounting Type | Current - Output 1 | Applications | Efficiency | Voltage - Output 1 | Voltage - Isolation | Approval Agency | Features | Operating Temperature (Max) | Operating Temperature (Min) | Power (Watts) | Type | Voltage - Input (AC) Minimum | Voltage - Input (DC) Minimum | Voltage - Input (AC) Maximum | Voltage - Input (DC) Maximum | AC Voltage - Input (Max) | AC Voltage - Input (Min) | Current - Output (Max) | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 1 | 5.08 in | 3.82 in | 1.5 in | Chassis Mount | 16 A | Industrial ITE (Commercial) | 81 % | 5 V | 3 kV | CE cURus TUV UL | Adjustable Output Universal Input | 70 °C | -20 °C | 80 W | Enclosed | 85 VAC | 120 V | 264 V | 370 V | ||||
 Omron Automation and Safety | 1 | 5.08 in | 3.82 in | 1.54 in | ITE (Commercial) | 86 % | 12 V | 3 kV | CE cURus TUV UL | Adjustable Output Universal Input | 70 °C | -20 °C | 100 W | 264 VAC | 85 VAC | 8.5 A | AC | |||||||
Omron Automation and Safety | 1 | 5.08 in | 1.5 in | 3.82 in | Chassis Mount | 8.5 A | ITE (Commercial) | 86 % | 12 V | 3 kV | CE cURus TUV UL | Adjustable Output DC Input Capable Universal Input | 70 °C | -20 °C | 100 W | Enclosed | 85 VAC | 264 V | ||||||
 Omron Automation and Safety | 1 | 5.08 in | 3.82 in | 1.54 in | ITE (Commercial) | 81 % | 5 V | 3 kV | CE cURus TUV UL | Adjustable Output Universal Input | 70 °C | -20 °C | 80 W | 264 VAC | 85 VAC | 16 A | AC |
