179841 Series

Catalog

AMP POWER D/LOCK T/HDR ASSY 6P

Part	Contact Type	Insulation Material	Connector Type	Material Flammability Rating	Number of Positions	Shrouding	Contact Material	Termination	Style	Fastening Type	Contact Finish - Post	Insulation Height	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Current Rating	Current Rating	Contact Shape	Number of Positions Loaded	Contact Length - Post	Features	Number of Rows	Insulation Color	Pitch - Mating	Row Spacing - Mating	Applications

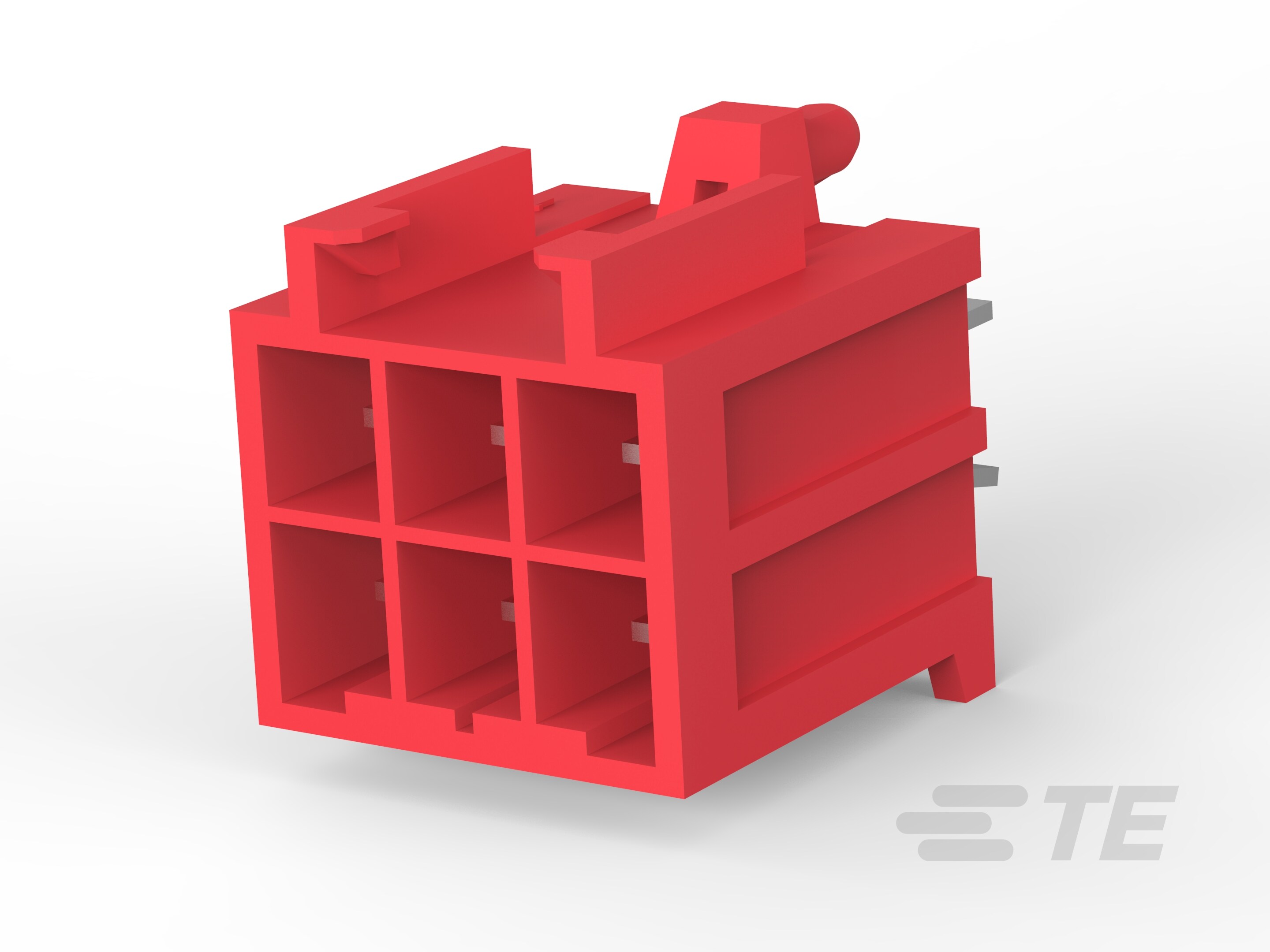

TE Connectivity AMP Connectors 179841-2	Tab	Nylon 6/6 Polyamide (PA66)	Header	UL94 V-0	6	Shrouded - 4 Wall	Copper Alloy	Kinked Pin Solder	Board Cable/Wire	Locking Ramp	Tin	0.575 in	Through Hole	-30 °C	105 °C	Tin	0 A	Varies by Wire Gauge	Rectangular	All	0.15 in	Board Guide	2	Red	0.156 in	0.181 in	General Purpose
TE Connectivity AMP Connectors 179841-1	Tab	Nylon 6/6 Polyamide (PA66)	Header	UL94 V-0	6	Shrouded - 4 Wall	Copper Alloy	Kinked Pin Solder	Board Cable/Wire	Locking Ramp	Tin	0.575 in	Through Hole	-30 °C	105 °C	Tin	0 A	Varies by Wire Gauge	Rectangular	All	0.15 in	Board Guide	2	Natural	0.156 in	0.181 in	General Purpose
