644750 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HEADER VERT 12POS 3.96MM
| Part | Contact Length - Mating | Number of Positions | Termination | Contact Material | Applications | Operating Temperature (Min) | Operating Temperature (Max) | Contact Length - Post | Contact Finish - Mating | Style | Contact Finish - Post | Insulation Height | Insulation Material | Voltage Rating | Shrouding | Insulation Color | Number of Positions Loaded | Connector Type | Material Flammability Rating | Mounting Type | Contact Type | Number of Rows | Pitch - Mating | Overall Contact Length | Current Rating | Current Rating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | 0.4 in | 12 | Solder | Copper Alloy | General Purpose Industrial | -55 °C | 105 °C | 0.175 in | Tin | Board Cable/Wire | Tin | 0.125 in | Glass Filled Thermoplastic | 600 V | Unshrouded | Natural | All | Header | UL94 V-0 | Through Hole | Male Pin | 1 | 0.156 in | 0.7 in | 0 A | Varies by Wire Gauge | Circular |
TE Connectivity AMP Connectors | 0.4 in | 11 | Solder | Copper Alloy | General Purpose Industrial | -55 °C | 105 °C | 0.175 in | Tin | Board Cable/Wire | Tin | 0.125 in | Glass Filled Thermoplastic | 600 V | Unshrouded | Natural | All | Header | UL94 V-0 | Through Hole | Male Pin | 1 | 0.156 in | 0.7 in | 0 A | Varies by Wire Gauge | Circular |
 TE Connectivity AMP Connectors | 0.4 in | 14 | Solder | Copper Alloy | General Purpose Industrial | -55 °C | 105 °C | 0.175 in | Tin | Board Cable/Wire | Tin | 0.125 in | Glass Filled Thermoplastic | 600 V | Unshrouded | Natural | All | Header | UL94 V-0 | Through Hole | Male Pin | 1 | 0.156 in | 0.7 in | 0 A | Varies by Wire Gauge | Circular |

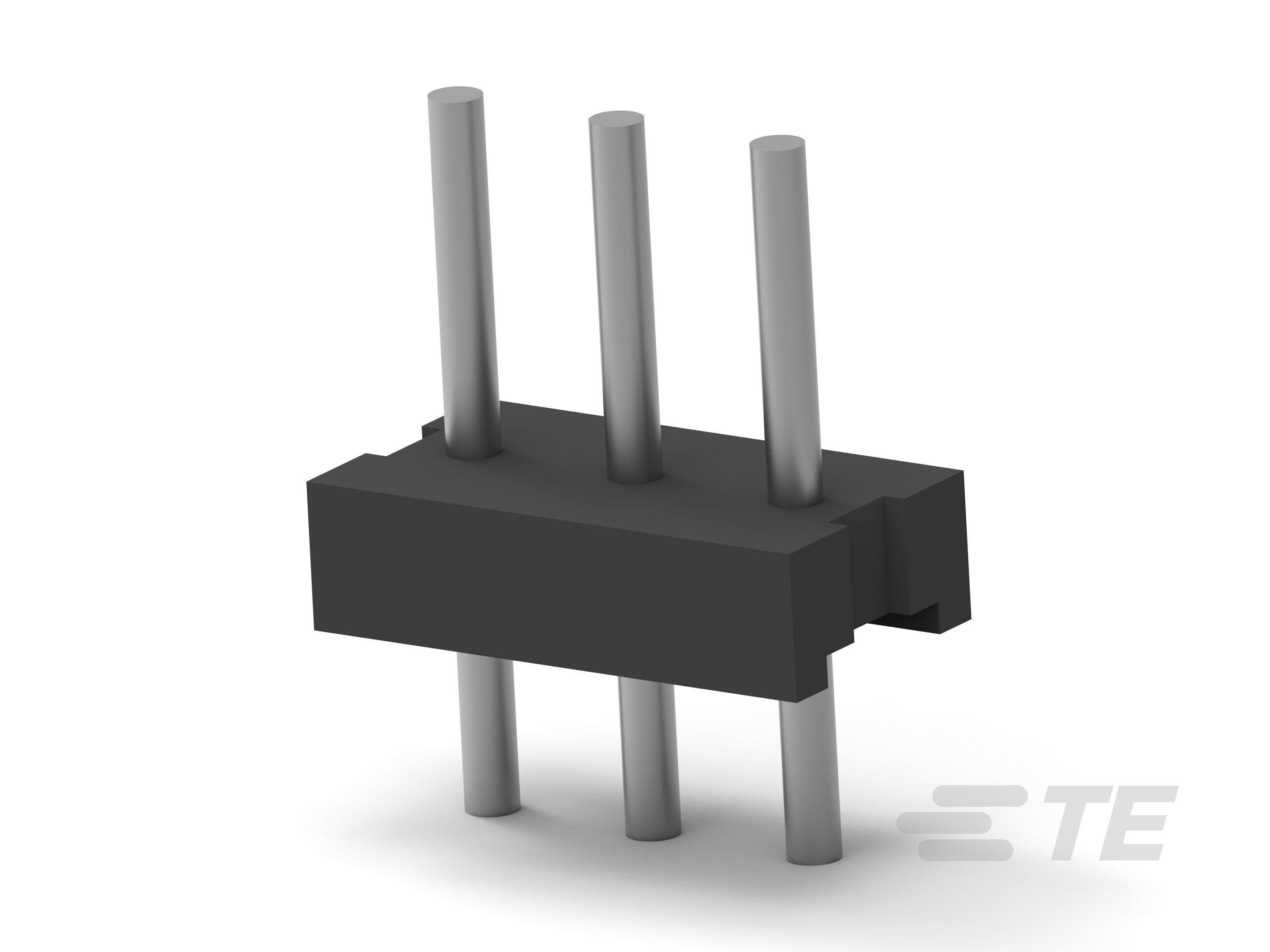

 TE Connectivity AMP Connectors | 0.4 in | 3 | Solder | Copper Alloy | General Purpose Industrial | -55 °C | 105 °C | 0.175 in | Tin | Board Cable/Wire | Tin | 0.125 in | Glass Filled Thermoplastic | 600 V | Unshrouded | Natural | All | Header | UL94 V-0 | Through Hole | Male Pin | 1 | 0.156 in | 0.7 in | 0 A | Varies by Wire Gauge | Circular |
TE Connectivity AMP Connectors | 0.4 in | 13 | Solder | Copper Alloy | General Purpose Industrial | -55 °C | 105 °C | 0.175 in | Tin | Board Cable/Wire | Tin | 0.125 in | Glass Filled Thermoplastic | 600 V | Unshrouded | Natural | All | Header | UL94 V-0 | Through Hole | Male Pin | 1 | 0.156 in | 0.7 in | 0 A | Varies by Wire Gauge | Circular |
TE Connectivity AMP Connectors | 0.4 in | 18 | Solder | Copper Alloy | General Purpose Industrial | -55 °C | 105 °C | 0.175 in | Tin | Board Cable/Wire | Tin | 0.125 in | Glass Filled Thermoplastic | 600 V | Unshrouded | Natural | All | Header | UL94 V-0 | Through Hole | Male Pin | 1 | 0.156 in | 0.7 in | 0 A | Varies by Wire Gauge | Circular |
