SlimSeal Standard Connectors Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

3P,REC CABLE ASSY-200MM,WHITE,TIN

Part	Color	Shielding	Number of Rows	Contact Finish	Length	Connector Type	Pitch - Connector	Number of Positions	Cable Termination	Style	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Termination	Contact Material	Mounting Type	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Housing Color	Housing Material	Mating Cycles	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating	Current Rating	Features

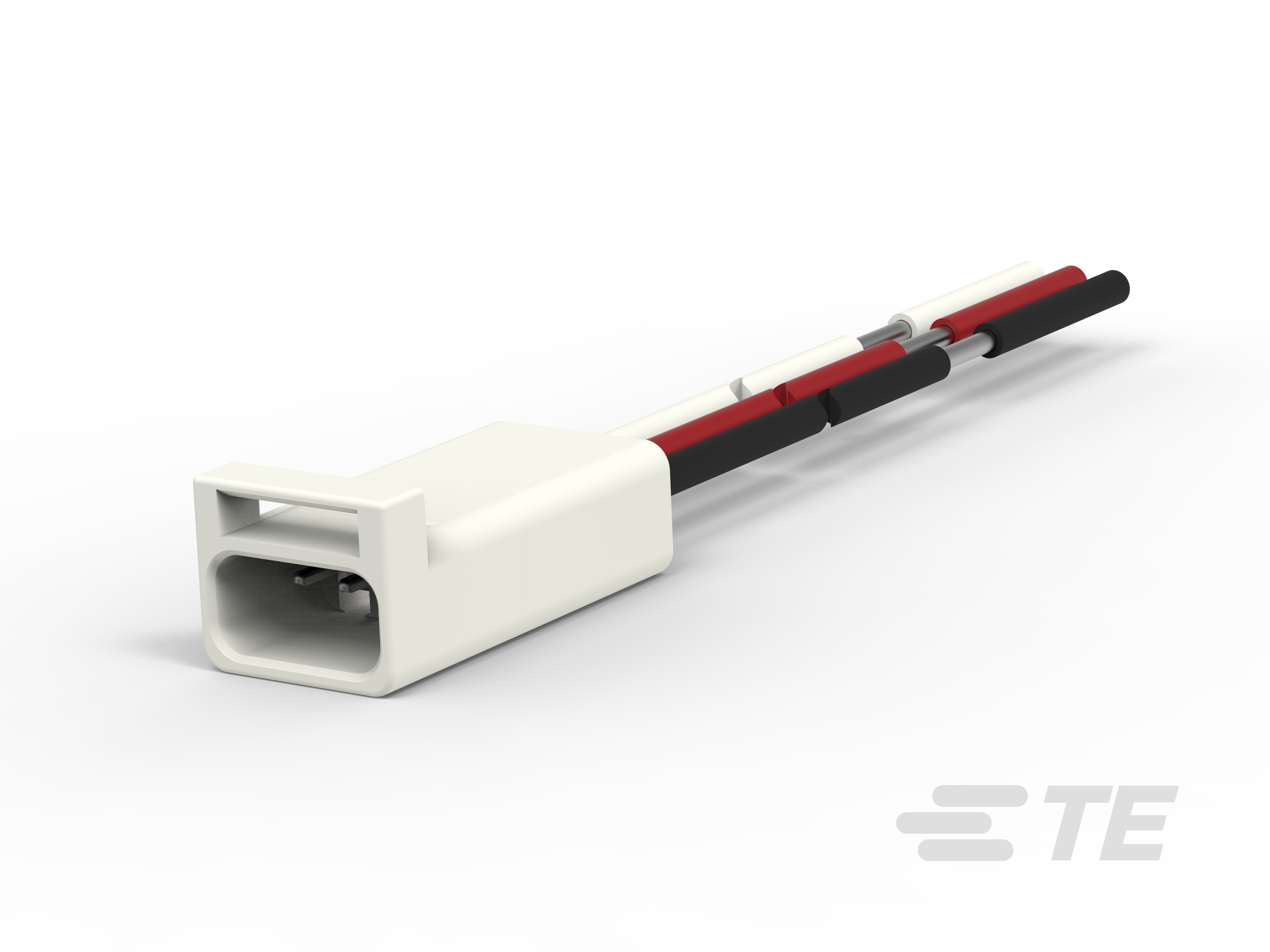

TE Connectivity AMP Connectors 1-2834183-2	Individual Multiple	Unshielded	1	Gold	0.656 ft	Socket to Cable	0.1 in	3	Crimp

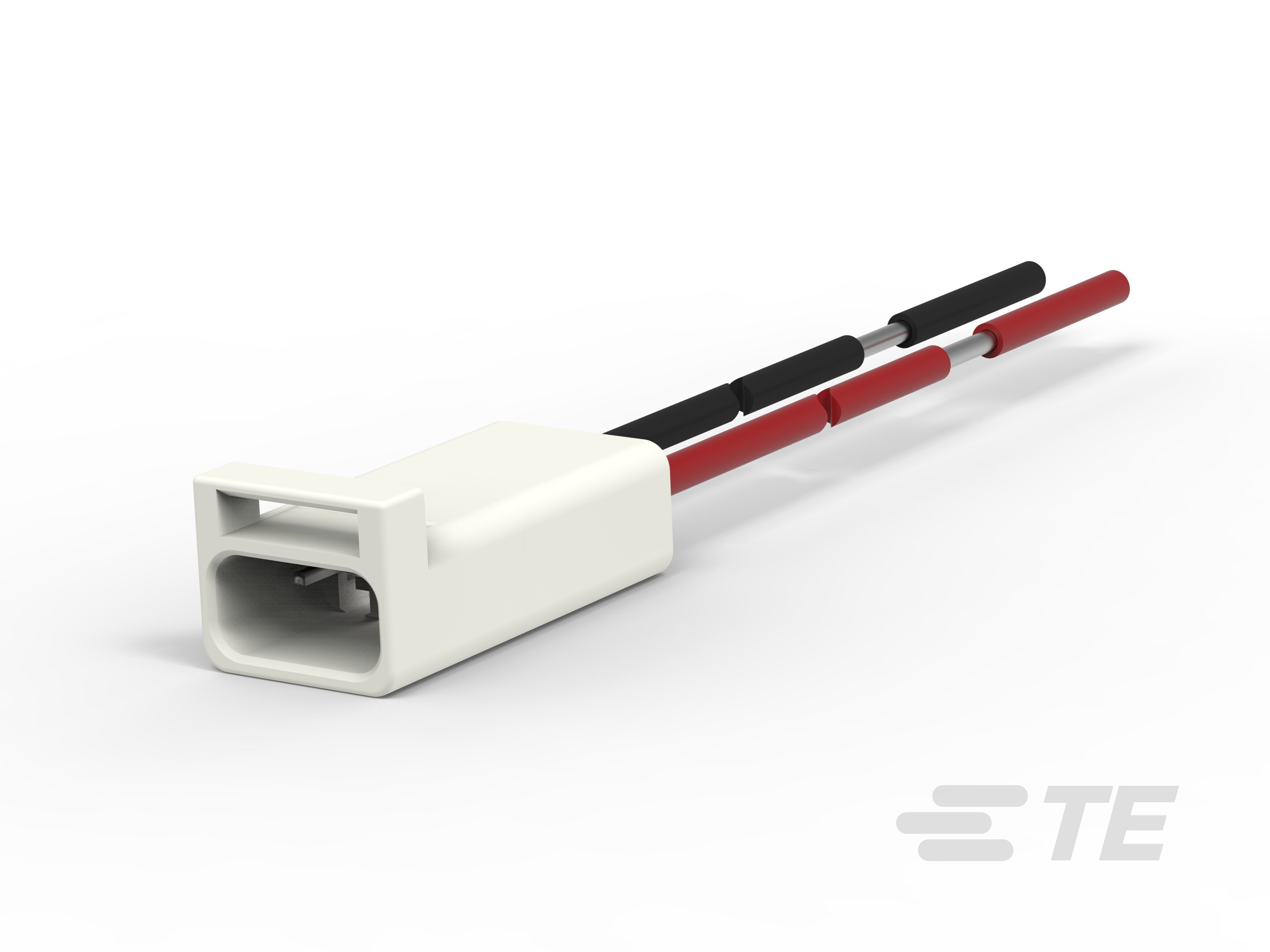

TE Connectivity AMP Connectors 1-2834183-5
TE Connectivity AMP Connectors 2-2106124-7				Tin		Contact Tab		1		Board Cable/Wire	22 AWG	24 AWG	Crimp	Brass	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2106135-2						Plug Housing for Socket Contact		2		Cable/Wire Cable/Wire or Board			Crimp		Free Hanging (In-Line)	0.138 in	-40 °C	105 °C	Latch Lock	Black	PC Polycarbonate	30 cycles	Dust Tight Waterproof	IP67	400 V	3.5 A 5 A
TE Connectivity AMP Connectors 2154854-1						Plug Housing for Socket Contact		1		Cable/Wire			Crimp		Free Hanging (In-Line)		-40 °C	105 °C	Latch Lock	Black	PC Polycarbonate

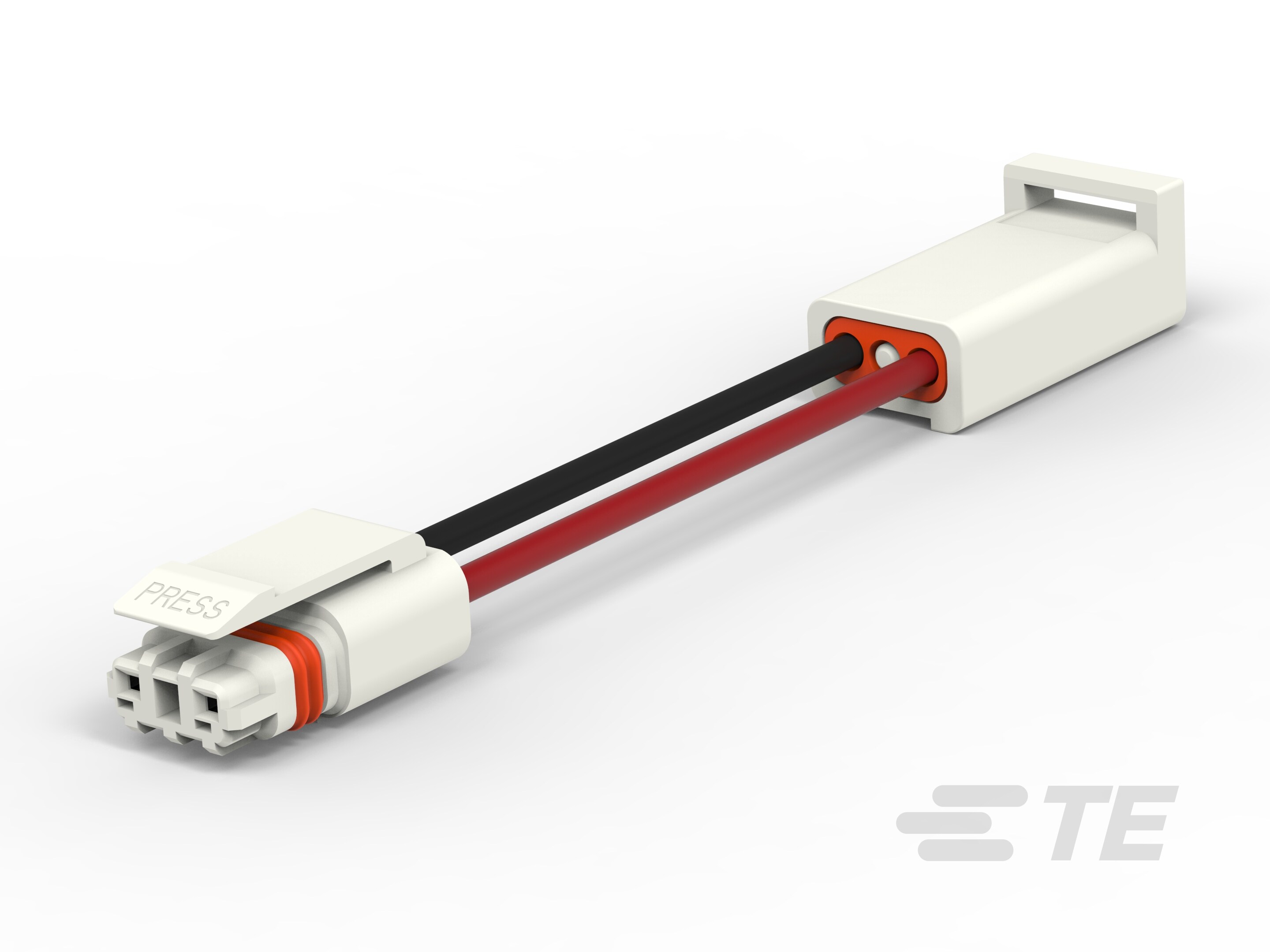

TE Connectivity AMP Connectors 1-2834184-3	Black Individual Red	Unshielded	1	Tin	0.5 ft	Socket to Plug		2	Crimp																		Latch Lock Polarizing Key Waterproof
TE Connectivity AMP Connectors 2154852-1						Receptacle Housing for Tab Contact		1		Cable/Wire			Crimp		Free Hanging (In-Line)		-40 °C	105 °C	Latch Lock	Black	PC Polycarbonate	30 cycles	Dust Tight Waterproof	IP67	400 V	3.5 A 5 A

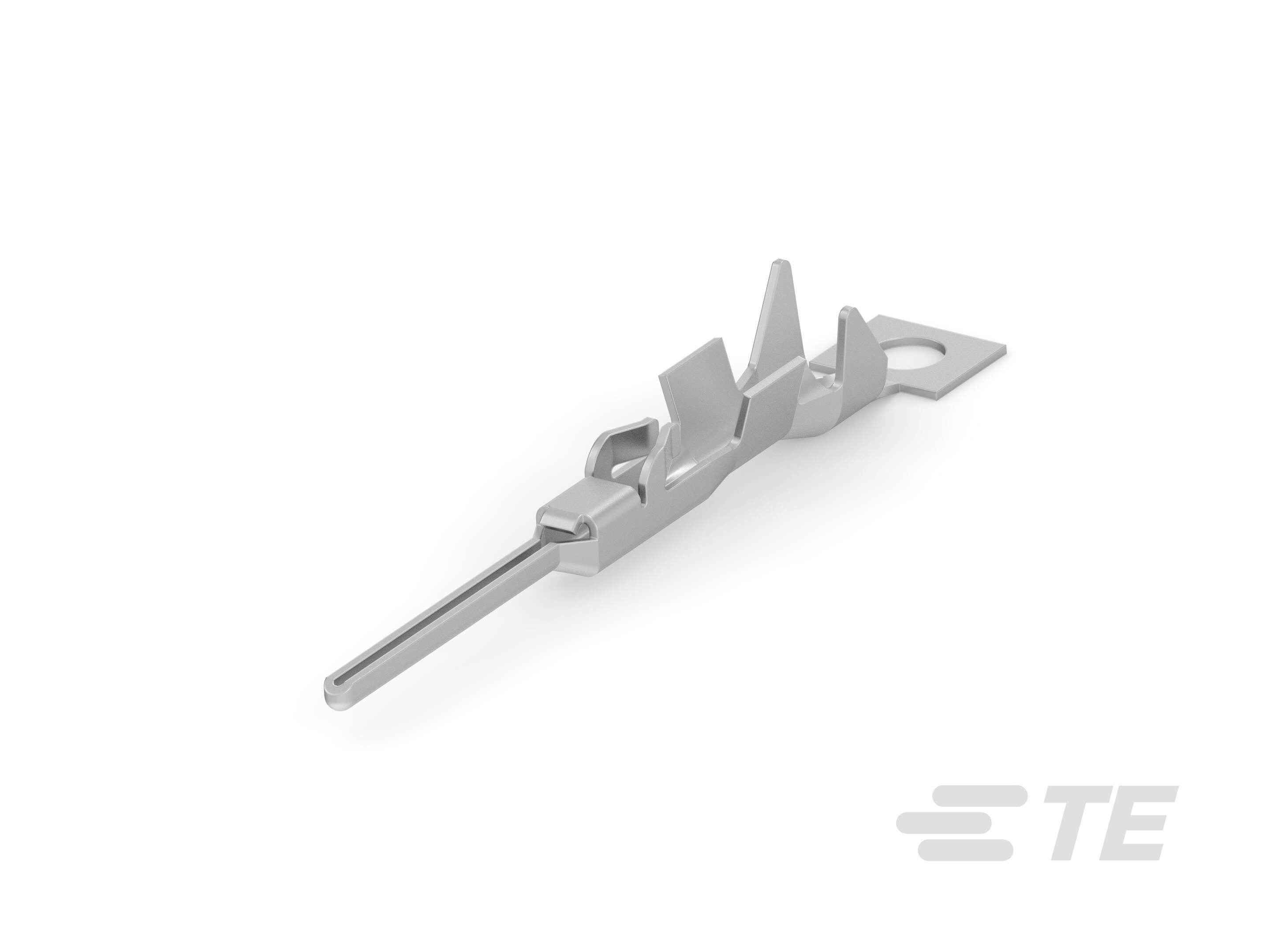

TE Connectivity AMP Connectors 2106124-2				Tin		Contact Tab		1		Board Cable/Wire	18 AWG	20.5 AWG	Crimp	Brass	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-2834182-5

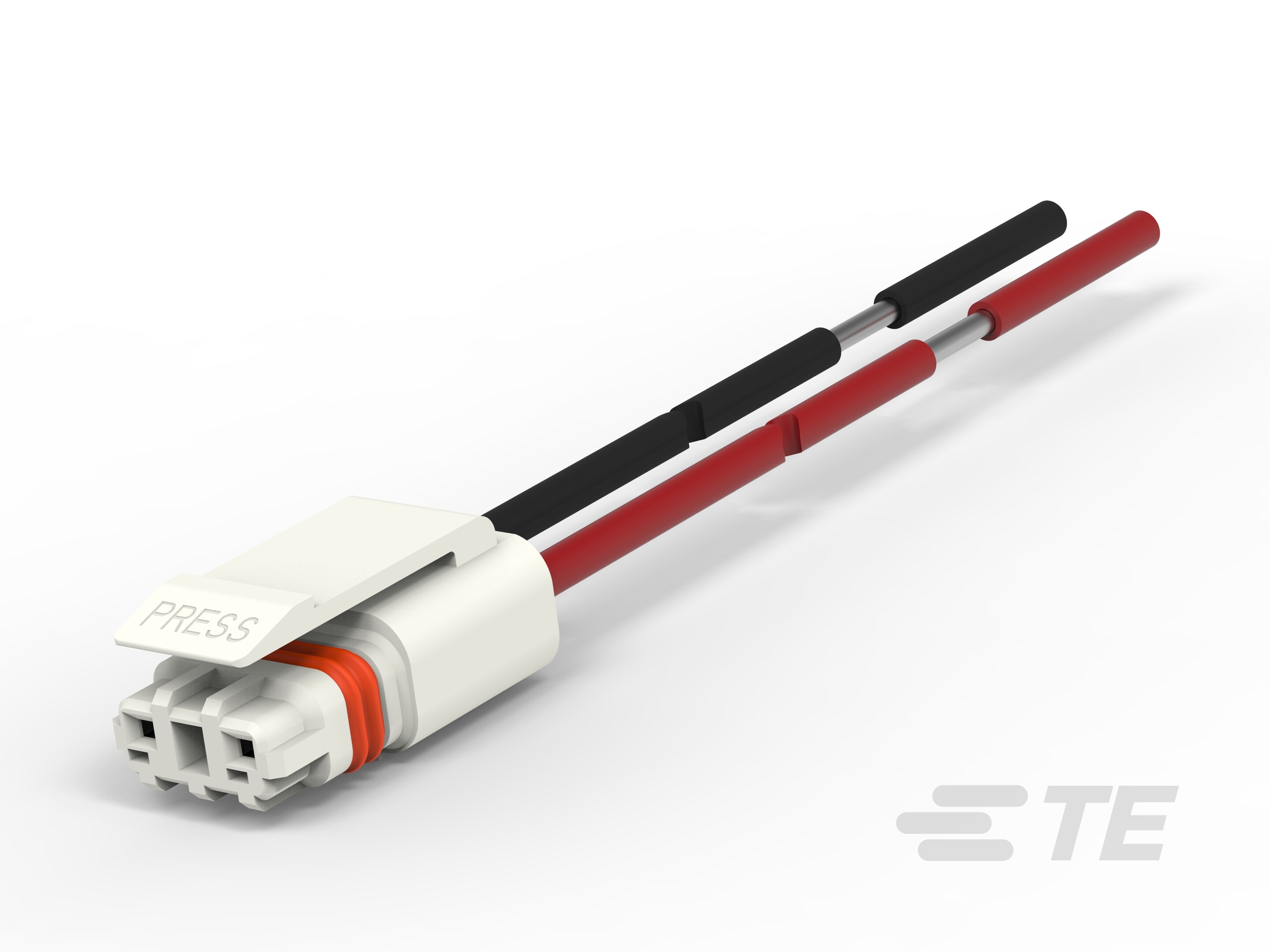

TE Connectivity AMP Connectors 5-2834182-5
