641217 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 14POS IDC 18AWG GOLD

Part	Fastening Type	Contact Finish	Number of Rows	Pitch	Color	Features	Contact Type	Wire Gauge	Cable Termination	Connector Type	Mounting Type	Wire Type	Contact Finish Thickness	Number of Positions
TE Connectivity AMP Connectors 4-641217-4	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	14
TE Connectivity AMP Connectors 1-641217-4	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	14
TE Connectivity AMP Connectors 4-641217-0	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	10
TE Connectivity AMP Connectors 641217-3	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	3
TE Connectivity AMP Connectors 641217-2	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	2

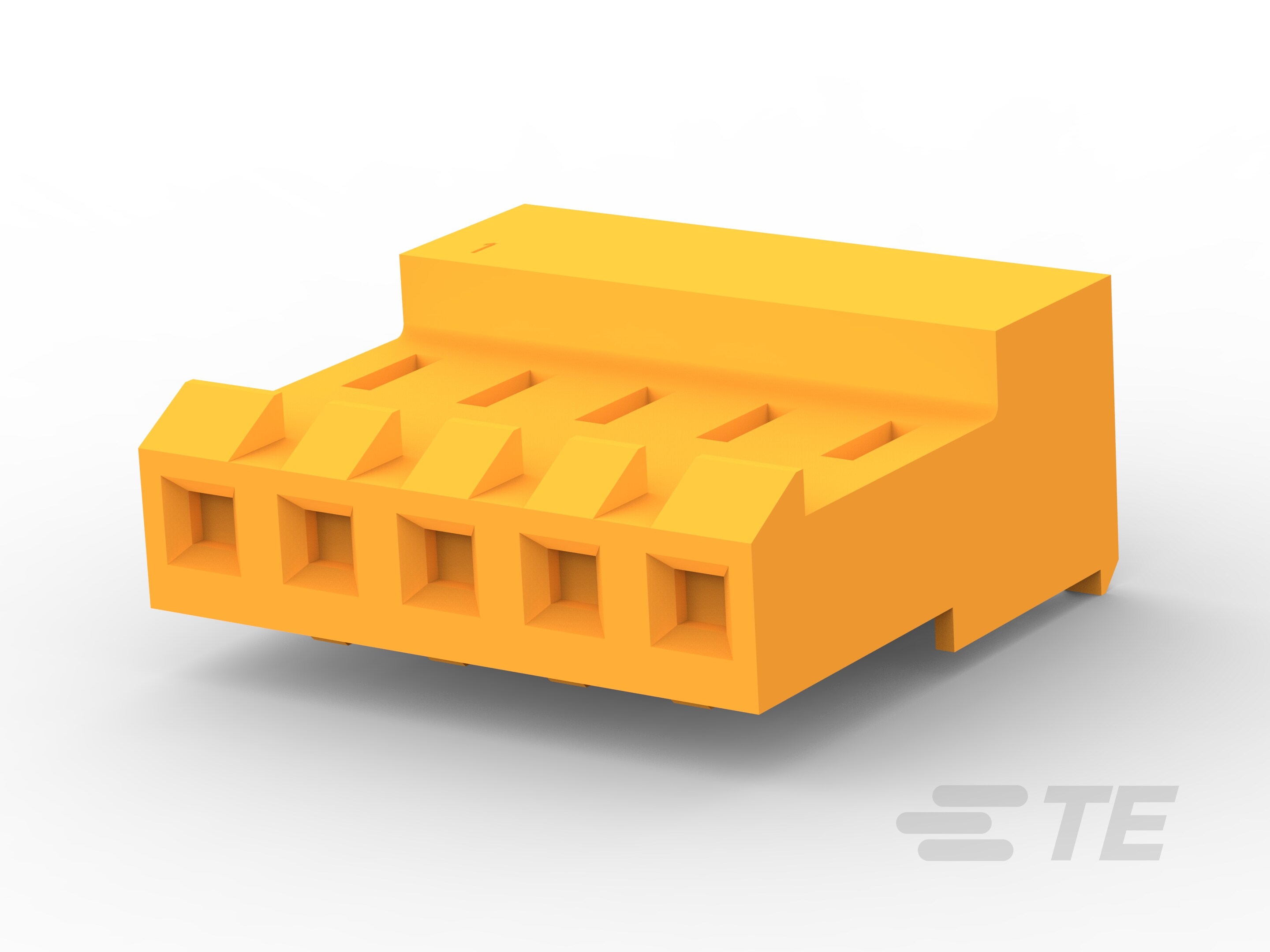

TE Connectivity AMP Connectors 3-641217-5	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	5
TE Connectivity AMP Connectors 641217-8	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	8
TE Connectivity AMP Connectors 641217-5	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	5

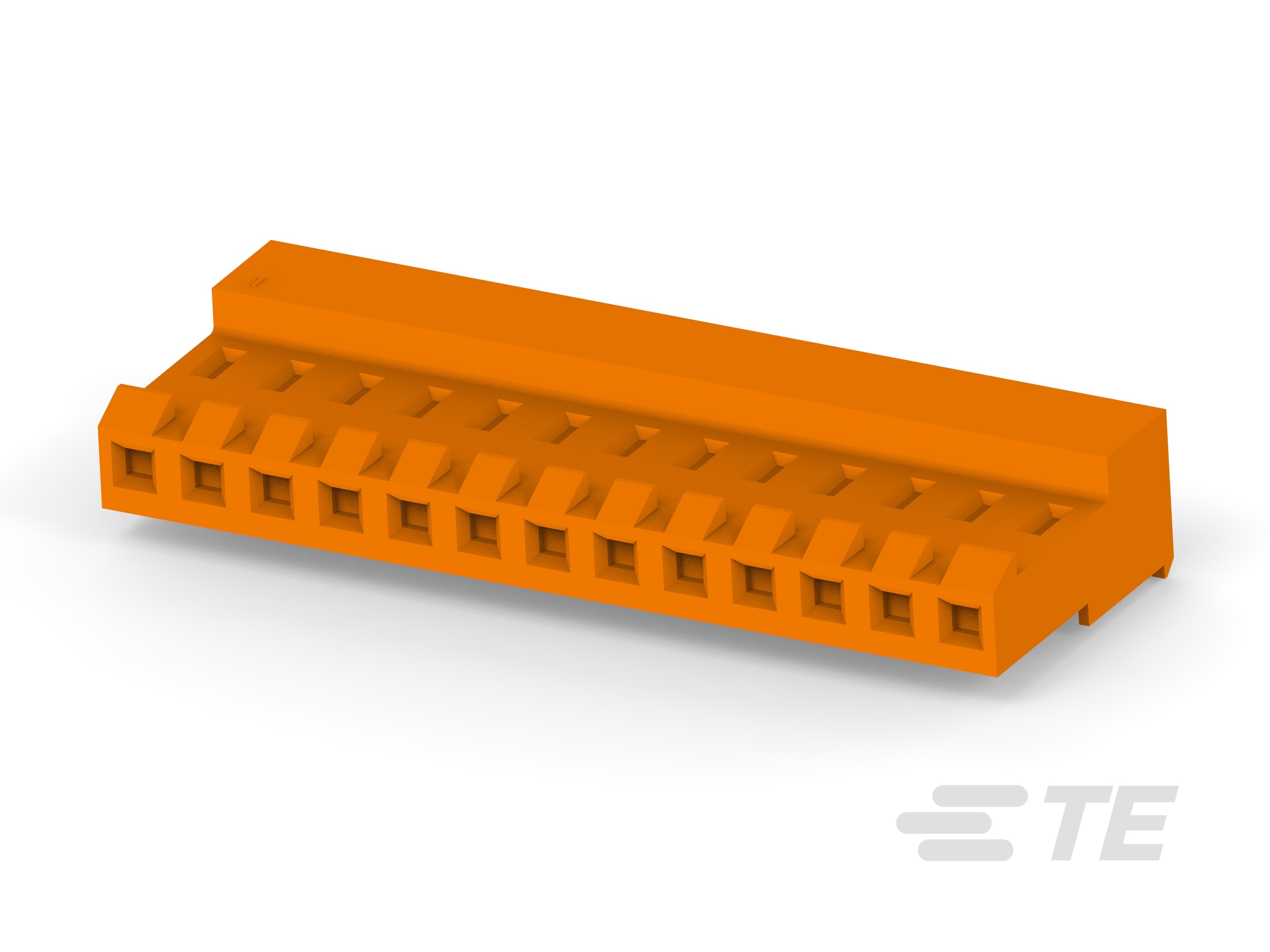

TE Connectivity AMP Connectors 4-641217-3	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	13
TE Connectivity AMP Connectors 3-641217-7	Locking Ramp	Gold	1	0.156 in	Orange	Closed End	Female Socket	18 AWG	IDC	Receptacle	Free Hanging (In-Line)	Discrete Ribbon Cable	30 µin	7
