052465 Series

Manufacturer: Molex

Catalog

CONN RCPT 26POS SMD TIN

Part	Height Above Board	Mated Stacking Height Options	Contact Finish Thickness	Mounting Type	Pitch	Number of Positions	Contact Finish	Connector Type	Number of Rows	Mated Stacking Height	Features

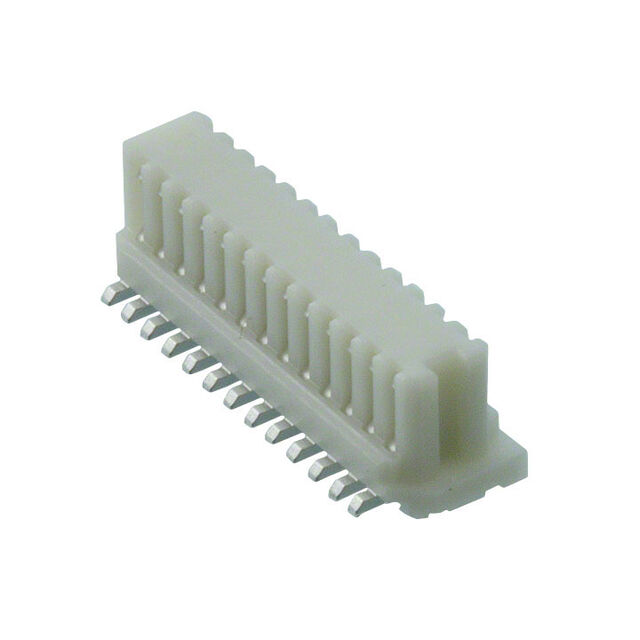

Molex 0524652671	0.14 in	4.5mm 5.65mm 7mm	120 µin	Surface Mount	0.031 in	26	Tin	Center Strip Contacts Receptacle	2
Molex 0524653270	0.14 in		40 µin	Surface Mount	0.031 in	32	Tin	Center Strip Contacts Receptacle	2	4.5 mm	Board Guide
Molex 0524652670	0.14 in		40 µin	Surface Mount	0.031 in	26	Tin	Center Strip Contacts Receptacle	2	4.5 mm	Board Guide
Molex 0524652070	0.14 in	4.5mm 5.65mm 7mm	120 µin	Surface Mount	0.031 in	20	Tin	Center Strip Contacts Receptacle	2		Board Guide

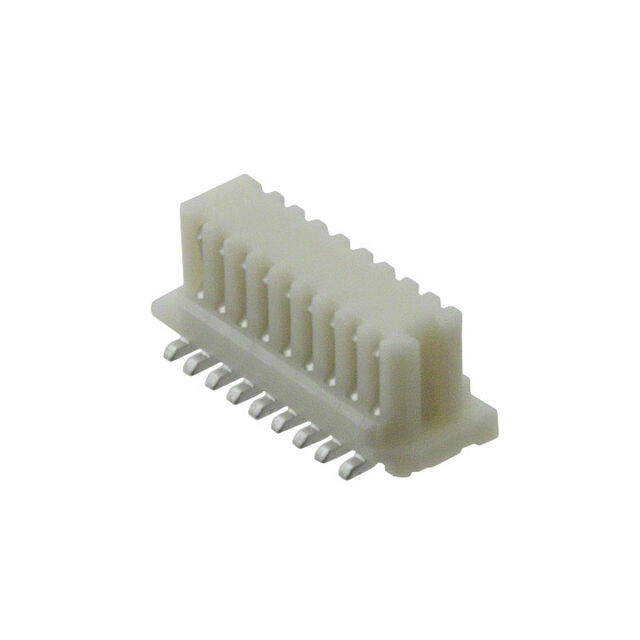

Molex 0524651871	0.14 in	4.5mm 5.65mm 7mm	120 µin	Surface Mount	0.031 in	18	Tin	Center Strip Contacts Receptacle	2
Molex 0524651271	0.14 in	4.5mm 5.65mm 7mm	120 µin	Surface Mount	0.031 in	12	Tin	Center Strip Contacts Receptacle	2
Molex 0524651670	0.14 in		40 µin	Surface Mount	0.031 in	16	Tin	Center Strip Contacts Receptacle	2	4.5 mm	Board Guide
Molex 0524652270	0.14 in		40 µin	Surface Mount	0.031 in	22	Tin	Center Strip Contacts Receptacle	2	4.5 mm	Board Guide
Molex 0524653062
Molex 0524652870	0.14 in		40 µin	Surface Mount	0.031 in	28	Tin	Center Strip Contacts Receptacle	2	4.5 mm	Board Guide
