413589 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN BNC PLUG STR 75 OHM CRIMP

Part	Dielectric Material	Insertion Loss	Includes Total Count	Includes	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Mating Cycles	Body Finish	Body Material	Housing Color	Mounting Type	Contact Termination	Impedance	Number of Ports	Connector Type	Fastening Type	Frequency - Max	Center Contact Material	Cable Group	Shield Termination	Connector Style

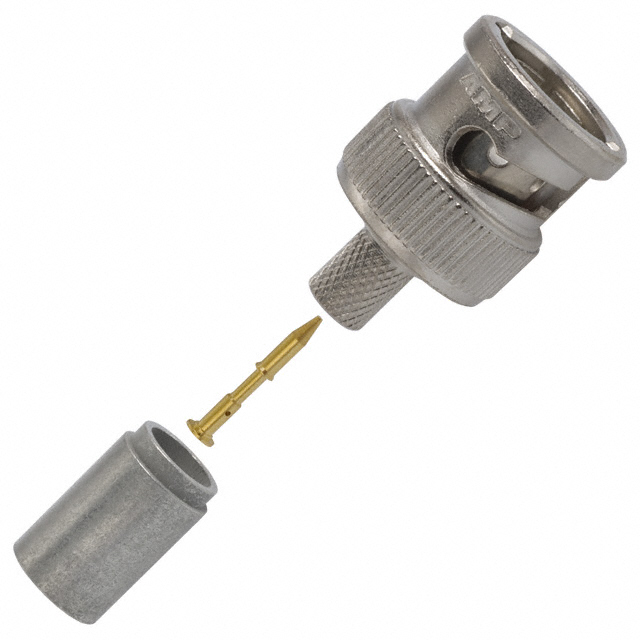

TE Connectivity AMP Connectors 413589-1	Polyethylene (PE)	0.15 dB	3 pcs	Connector Contact Ferrule	500 V	-55 °C	85 °C	Gold	500 cycles	Nickel	Brass	Silver	Free Hanging (In-Line)	Crimp	75 Ohm	1	Male Pin Plug	Bayonet Lock	2 GHz	Brass	Belden 88241	Crimp	BNC
TE Connectivity AMP Connectors 413589-2	Polyethylene (PE)	0.15 dB	3 pcs	Connector Contact Ferrule	500 V	-55 °C	85 °C	Gold	500 cycles	Nickel	Zinc	Silver	Free Hanging (In-Line)	Crimp	75 Ohm	1	Male Pin Plug	Bayonet Lock	2 GHz	Beryllium Copper	59A 59B RG-59	Crimp	BNC
TE Connectivity AMP Connectors 413589-3	Polyethylene (PE)	0.15 dB	3 pcs	Connector Contact Ferrule	500 V	-55 °C	85 °C	Gold	500 cycles	Nickel	Zinc	Silver	Free Hanging (In-Line)	Crimp	75 Ohm	1	Male Pin Plug	Bayonet Lock	2 GHz	Brass	Belden 8218	Crimp	BNC
TE Connectivity AMP Connectors 1-413589-6	Polymethylpentene (PMP)	0.15 dB	3 pcs	Connector Contact Ferrule	500 V	-55 °C	85 °C	Gold	500 cycles	Nickel	Brass	Silver	Free Hanging (In-Line)	Crimp	75 Ohm	1	Male Pin Plug	Bayonet Lock	2 GHz	Brass	Belden 8218	Crimp	BNC

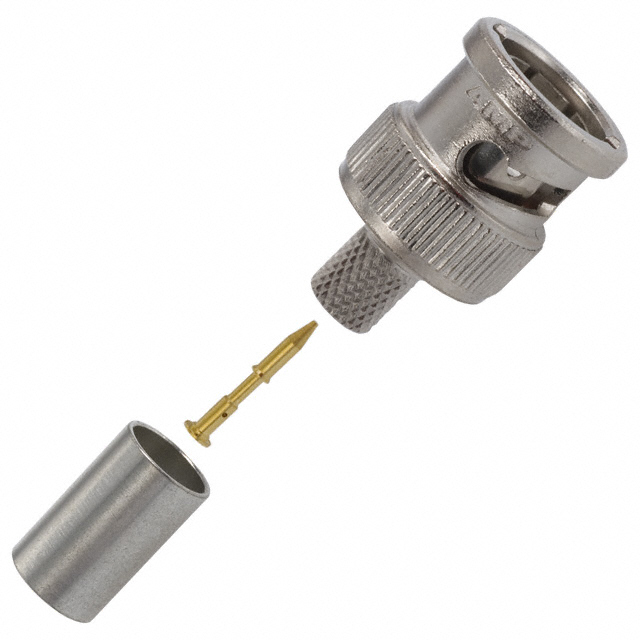

TE Connectivity AMP Connectors 413589-7	Polyethylene (PE)	0.15 dB	3 pcs	Connector Contact Ferrule	500 V	-55 °C	85 °C	Gold	500 cycles	Nickel	Zinc	Silver	Free Hanging (In-Line)	Crimp	75 Ohm	1	Male Pin Plug	Bayonet Lock	2 GHz	Brass	AT&T 734A	Crimp	BNC
