1700V/Triple Dual common source/IGBT modules

Part	Vce(on) (Max)	Current - Collector (Ic) (Max)	Package / Case	Mounting Type	Input	Package Name	IGBT Type	Power - Max	Current - Collector Cutoff (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Collector Emitter Breakdown (Max)	Input Capacitance (Cies) @ Vce	Configuration	NTC Thermistor
Microchip Technology APTGT50DH60T1G	1.9 V	80 A	SP1	Chassis Mount	Standard	SP1	Trench Field Stop	176 W	250 µA	175 °C	-40 °C	600 V	3.15 nF	Asymmetrical Bridge	Yes

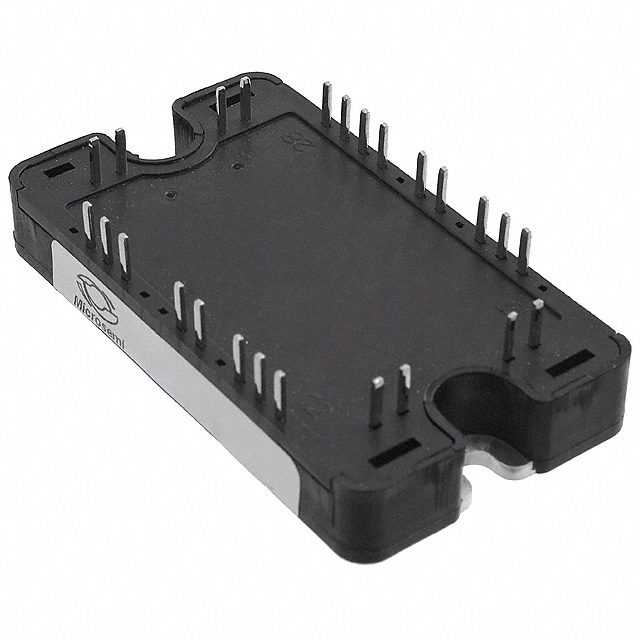

Microchip Technology APTGT50H60T3G	1.9 V	80 A	SP3	Chassis Mount	Standard	SP3	Trench Field Stop	176 W	250 µA	175 °C	-40 °C	600 V	3.15 nF	Full Bridge Inverter	Yes
Microchip Technology APTGT50X60T3G	1.9 V	80 A	SP3	Chassis Mount	Standard	SP3	Trench Field Stop	176 W	250 µA	175 °C	-40 °C	600 V	3.15 nF	Three Phase Inverter	Yes
Microchip Technology APTGT50H170TG	2.4 V	75 A	SP4	Chassis Mount	Standard	SP4	Trench Field Stop	312 W	250 µA	150 °C	-40 °C	1700 V	4.4 nF	Full Bridge Inverter	Yes
Microchip Technology APTGT50A170TG	2.4 V	75 A	SP4	Chassis Mount	Standard	SP4	Trench Field Stop	312 W	250 µA	150 °C	-40 °C	1700 V	4.4 nF	Half Bridge	Yes

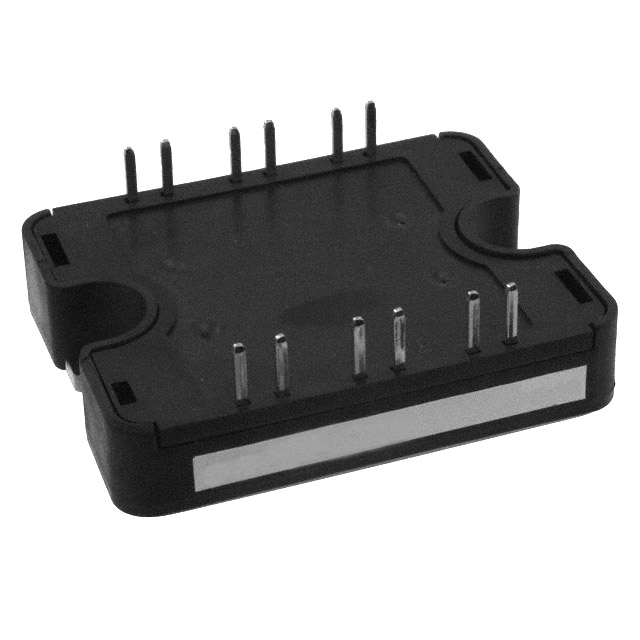

Microchip Technology APTGT50SK170T1G	2.4 V	75 A	SP1	Chassis Mount	Standard	SP1	Trench Field Stop	312 W	250 µA	150 °C	-40 °C	1700 V	4.4 nF	Single	Yes

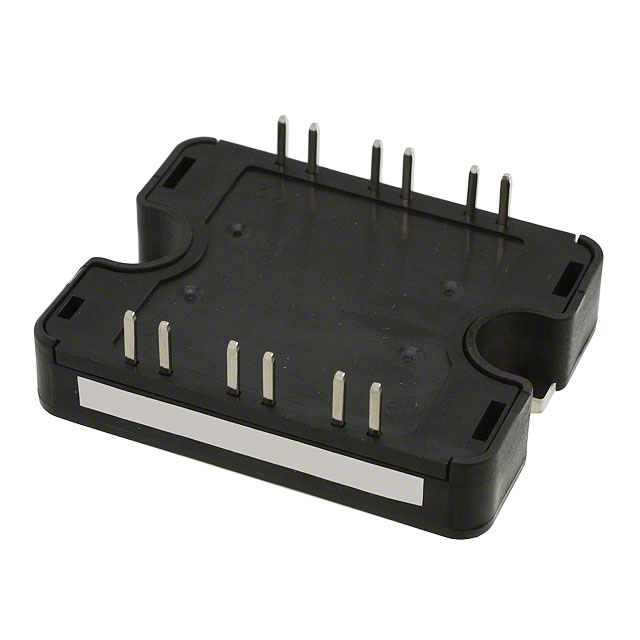

Microchip Technology APTGT50A120T1G	2.1 V	75 A	SP1	Chassis Mount	Standard	SP1	Trench Field Stop	277 W	250 µA	150 °C	-40 °C	1200 V	3.6 nF	Half Bridge	Yes
Microchip Technology APTGT50DDA120T3G	2.1 V	75 A	SP3	Chassis Mount	Standard	SP3	Trench Field Stop	270 W	250 µA	175 °C	-40 °C	1200 V	3.6 nF	Dual Boost Chopper	Yes
Microchip Technology APTGT50TL60T3G	1.9 V	80 A	SP3	Chassis Mount	Standard	SP3	Trench Field Stop	176 W	250 µA	175 °C	-40 °C	600 V	3.15 nF	Three Level Inverter	Yes
Microchip Technology APTGT50DH120TG	2.1 V	75 A	SP4	Chassis Mount	Standard	SP4	Trench Field Stop	277 W	250 µA	150 °C	-40 °C	1200 V	3.6 nF	Asymmetrical Bridge	Yes
