A1BXB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE- ASR26B/AE26G/X

Part	Contact Finish	Number of Rows	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Shielding	Number of Positions	Cable Termination	Connector Type	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Features	Color	Number of Positions
TE Connectivity Raychem Cable Protection A1BXB-2636G	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	26	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief
TE Connectivity Raychem Cable Protection A1BXB-1036M	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	10	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1BXB-1436G	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	14	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief

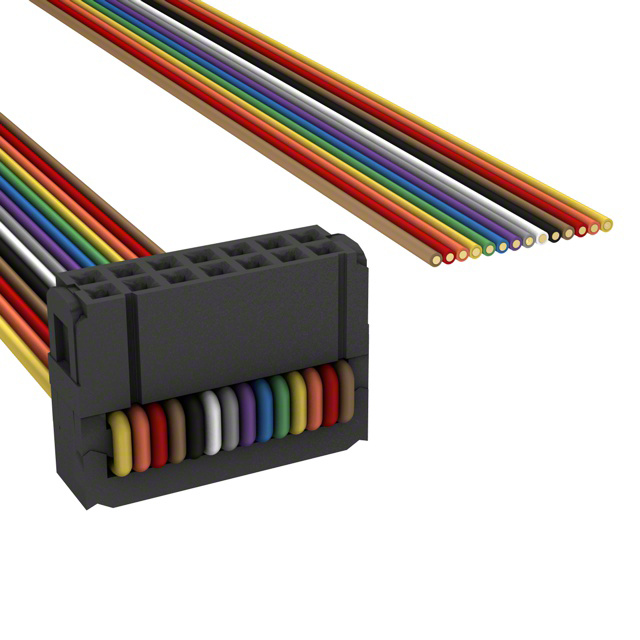

TE Connectivity Raychem Cable Protection A1BXB-1436M	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	14	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1BXB-1036G	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	10	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief
TE Connectivity Raychem Cable Protection A1BXB-1636M	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded		IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief	Multiple Ribbon	16

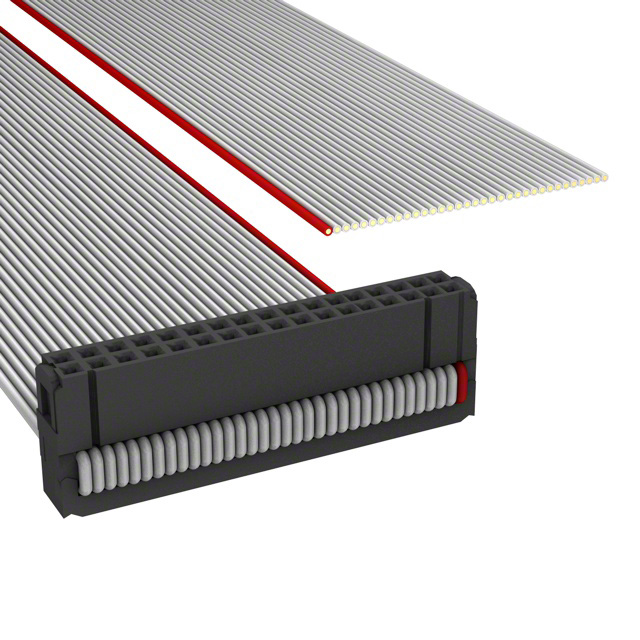

TE Connectivity Raychem Cable Protection A1BXB-3436G	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	34	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief
TE Connectivity Raychem Cable Protection A1BXB-4036M	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	40	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1BXB-4036G	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	40	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief
TE Connectivity Raychem Cable Protection A1BXB-5036M	Gold	2	0.1 in	2.54 mm	3 ft	914.4 mm	Unshielded	50	IDC	Socket to Cable	0.05 "	1.27 mm	0.76 Ám	30 Áin	Strain Relief	Multiple Ribbon
