MCP14A0452 Series

Catalog

4.5A SNGL NON-INV MOSFET DRVR W/LOW INPUT & ENABLE PIN, MSOP8 8 MSOP 3X3MM TUBE ROHS COMPLIANT: YES

Part	Gate Type	Operating Temperature (Min)	Operating Temperature (Max)	Driven Configuration	Channel Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Width	Package Name	Package Length	Current - Peak Output (Sink)	Current - Peak Output (Source)	Mounting Type	Logic Voltage - VIH	Logic Voltage - VIL	Input Type	Gate Channel	Number of Drivers	Fall Time (Typ)	Rise Time (Typ)	Package / Case
Microchip Technology MCP14A0452-E/MS	MOSFET N-Channel P-Channel MOSFET	-40 °C	150 °C	Low-Side	Single	18 V	4.5 V	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4.5 A	4.5 A	Surface Mount	2 V	0.8 V	Non-Inverting	N-Channel P-Channel	1	9 ns	9.5 ns
Microchip Technology MCP14A0452-E/SN	MOSFET N-Channel P-Channel MOSFET	-40 °C	150 °C	Low-Side	Single	18 V	4.5 V	3.9 mm	8-SOIC	0.154 in	4.5 A	4.5 A	Surface Mount	2 V	0.8 V	Non-Inverting	N-Channel P-Channel	1	9 ns	9.5 ns
Microchip Technology MCP14A0452T-E/MS	MOSFET N-Channel P-Channel MOSFET	-40 °C	150 °C	Low-Side	Single	18 V	4.5 V	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	4.5 A	4.5 A	Surface Mount	2 V	0.8 V	Non-Inverting	N-Channel P-Channel	1	9 ns	9.5 ns

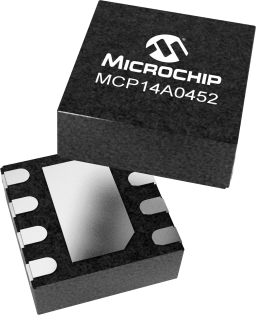

Microchip Technology MCP14A0452T-E/RW	MOSFET N-Channel P-Channel MOSFET	-40 °C	150 °C	Low-Side	Single	18 V	4.5 V	2 mm	8-WDFN	2 mm	4.5 A	4.5 A	Surface Mount	2 V	0.8 V	Non-Inverting	N-Channel P-Channel	1	9 ns	9.5 ns	8-WFDFN Exposed Pad
Microchip Technology MCP14A0452T-E/SN	MOSFET N-Channel P-Channel MOSFET	-40 °C	150 °C	Low-Side	Single	18 V	4.5 V	3.9 mm	8-SOIC	0.154 in	4.5 A	4.5 A	Surface Mount	2 V	0.8 V	Non-Inverting	N-Channel P-Channel	1	9 ns	9.5 ns
