MS27467T9F Series

Manufacturer: Amphenol Aerospace Operations

Catalog

AE1 3C 3#20 SKT PLUG

Part	Orientation	Termination	Current Rating	Shell Material	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Features	Connector Type	Contact Finish - Mating	Color	Fastening Type	Ingress Protection	Mounting Type	Number of Positions	Shielding	Contact Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Applications	Grade	Contact Finish Thickness - Mating	Qualification	Voltage Rating	Material Flammability Rating	Insert Material	Housing Color	Contact Shape	Note	Contact Type	Contact Size Options	Type
Amphenol Aerospace Operations MS27467T9F98S	N (Normal)	Crimp	7.5 A	Aluminum Alloy	Metal	200 °C	-65 °C	Nickel	Coupling Nut	Female Sockets Plug	Gold	Silver	Bayonet Lock	Environment Resistant	Free Hanging (In-Line)	3	Shielded
Amphenol Aerospace Operations MS27467T9F44PA	A	Crimp		Aluminum Alloy	Metal	200 °C	-65 °C	Electroless Nickel	Coupling Nut	Male Pins Plug	Gold	Silver	Bayonet Lock	Environment Resistant	Free Hanging (In-Line)	4	Shielded	Copper Alloy	44	9	Aviation Marine Military	Military	50 µin	MIL-DTL-38999 Series I
Amphenol Aerospace Operations MS27467T9F98SN	N (Normal)	Crimp	7.5 A	Aluminum	Metal	175 °C	-65 °C	Nickel		Female Sockets Plug	Gold	Silver	Bayonet Lock	Environment Resistant	Free Hanging (In-Line)	3	Shielded		98	9	Aerospace Aviation Military				500 V	UL94 V-0
Amphenol Aerospace Operations MS27467T9F35S

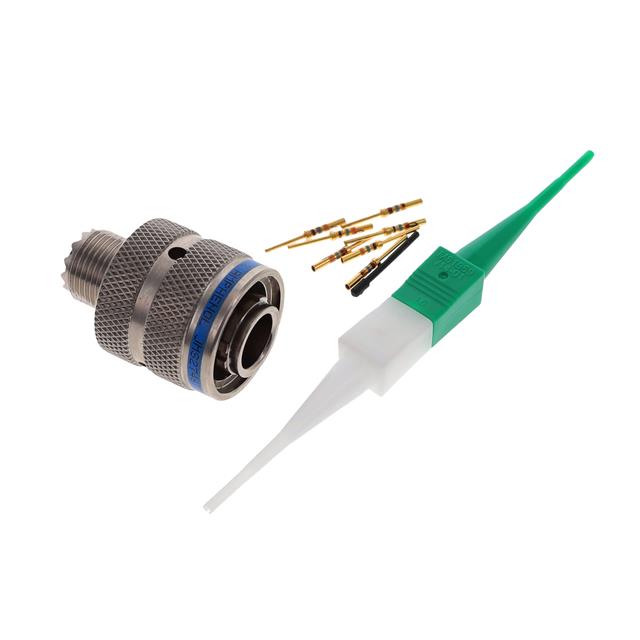

Amphenol Aerospace Operations MS27467T9F35P	N (Normal)	Crimp		Aluminum	Metal	200 °C	-65 °C	Nickel		Male Pins Plug	Gold	Silver	Bayonet Lock	Environment Resistant	Free Hanging (In-Line)	6	Shielded	Copper Alloy	35	9	Automotive Aviation Military	Military	50 µin	MIL-DTL-38999 Series I			Plastic
Amphenol Aerospace Operations MS27467T9F35P
Amphenol Aerospace Operations MS27467T9F35PL	N (Normal)			Aluminum Alloy	Metal	200 °C	-65 °C	Nickel	Coupling Nut	Plug Housing			Bayonet Lock	IP67	Free Hanging (In-Line)	6	Shielded					Military		MIL-DTL-38999 Series I		UL94 V-0	Thermoplastic	Silver	Circular	Contacts Not Included	Crimp	22D	For Male Pins
