747836 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

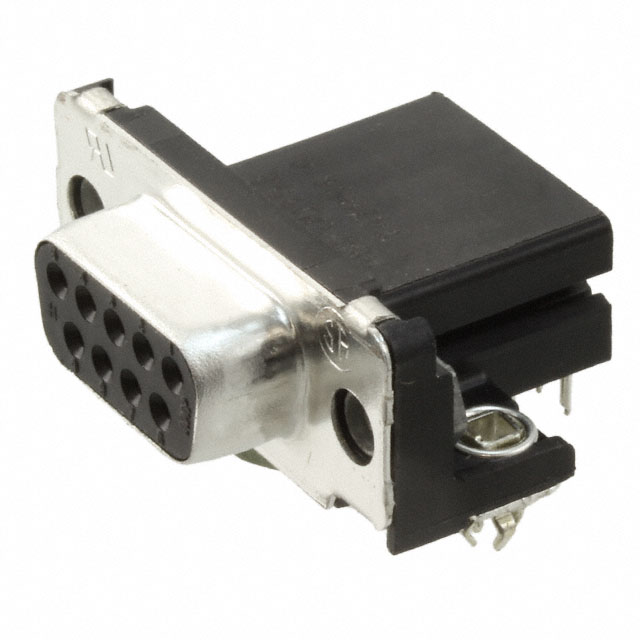

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Backset Spacing | Backset Spacing | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Features | Contact Finish | Voltage Rating | Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Contact Material | Number of Rows | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Thermoplastic | DE E | 1 | 6 A | UL94 V-0 | 9 | 0.59 " | 14.99 mm | Through Hole Right Angle | 0.76 Ám | 30 Áin | D-Sub | Board Lock Ground Strap | Gold | 125 VDC | Black | Signal | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Phosphor Bronze | 2 | Receptacle Female Sockets | Solder |
 TE Connectivity Raychem Cable Protection | Thermoplastic | DE E | 1 | 6 A | UL94 V-0 | 9 | 0.59 " | 14.99 mm | Through Hole Right Angle | 0.76 Ám | 30 Áin | D-Sub | Board Lock Ground Strap | Gold | 125 VDC | Black | Signal | 105 ░C | -55 °C | Housing/Shell (4-40) | Phosphor Bronze | 2 | Receptacle Female Sockets | Solder |
