70V7519 Series

256K x 36 Synchronous Bank-Switchable Dual-Port SRAM

Manufacturer: Renesas Electronics Corporation

Catalog

256K x 36 Synchronous Bank-Switchable Dual-Port SRAM

Part	Memory Type	Package / Case	Memory Size	Operating Temperature (Max)	Operating Temperature (Min)	Access Time	Clock Frequency	Memory Width	Memory Depth	Mounting Type	Memory Interface (Type)	Memory Format	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Technology	Package Length	Package Name	Package Width

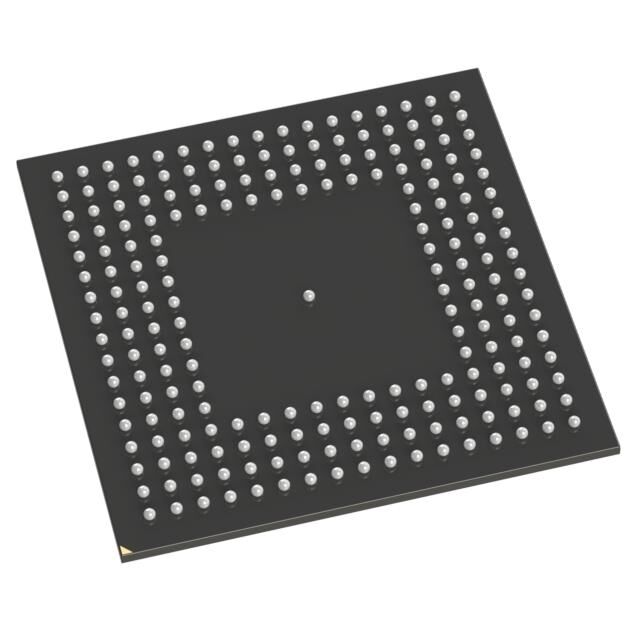

Renesas Electronics Corporation 70V7519S133BFI8	Volatile	208-LFBGA	9 Mbit	85 °C	-40 °C	4.2 ns	133 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	15 mm	208-CABGA	15 mm
Renesas Electronics Corporation 70V7519S133BF	Volatile	208-LFBGA	9 Mbit	70 °C	0 °C	4.2 ns	133 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	15 mm	208-CABGA	15 mm
Renesas Electronics Corporation 70V7519S200BC8	Volatile	256-LBGA	9 Mbit	70 °C	0 °C	3.4 ns	200 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	17 mm	256-CABGA	17 mm
Renesas Electronics Corporation 70V7519S166BCI8	Volatile	256-LBGA	9 Mbit	85 °C	-40 °C	3.6 ns	166 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	17 mm	256-CABGA	17 mm
Renesas Electronics Corporation 70V7519S166BC	Volatile	256-LBGA	9 Mbit	70 °C	0 °C	3.6 ns	166 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	17 mm	256-CABGA	17 mm
Renesas Electronics Corporation 70V7519S166DR	Volatile	208-BFQFP	9 Mbit	70 °C	0 °C	3.6 ns	166 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	28 mm	208-PQFP	28 mm
Renesas Electronics Corporation 70V7519S166BCI	Volatile	256-LBGA	9 Mbit	85 °C	-40 °C	3.6 ns	166 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	17 mm	256-CABGA	17 mm
Renesas Electronics Corporation 70V7519S133BC8	Volatile	256-LBGA	9 Mbit	70 °C	0 °C	4.2 ns	133 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	17 mm	256-CABGA	17 mm
Renesas Electronics Corporation 70V7519S166DRI	Volatile	208-BFQFP	9 Mbit	85 °C	-40 °C	3.6 ns	166 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	28 mm	208-PQFP	28 mm
Renesas Electronics Corporation 70V7519S133BC	Volatile	256-LBGA	9 Mbit	70 °C	0 °C	4.2 ns	133 MHz	36 bit	256 K	Surface Mount	Parallel	SRAM	3.15 V	3.45 V	SRAM - Dual Port Synchronous	17 mm	256-CABGA	17 mm

Catalog

256K x 36 Synchronous Bank-Switchable Dual-Port SRAM

Description

The 70V7519 is a high-speed 256K x 36 (9Mbit) synchronous Bank-Switchable Dual-Ported SRAM is organized into 64 independent 4Kx36 banks and has two independent ports with separate control, address, and I/O pins for each port, allowing each port to access any 4Kx36 memory block not already accessed by the other port. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode.
