C091 11D005 Series

Catalog

CONN PLUG HSG FMALE 5POS INLINE

Part	Orientation	Contact Size	Note	Shielding	Fastening Type	Material Flammability Rating	Shell Finish	Contact Shape	Number of Positions	Shell Material	Mounting Type	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Housing Color	Features	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Type	Includes	Includes Total Count	Connector Type

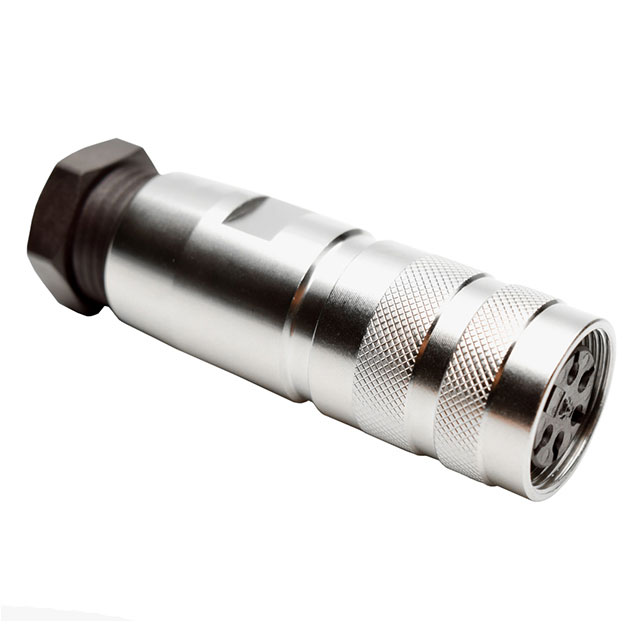

Amphenol Tuchel Industrial C091 11D005 001 2	Keyed	1.5 mm	Contacts Not Included	Shielded	Threaded	UL94 V-0	Nickel	Circular	5	Die Cast	Free Hanging (In-Line)	M16-5	100 °C	-40 °C	Silver	Backshell Cable Clamp Coupling Nut	Thermoplastic	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Crimp	For Female Sockets	Backshell Cable Nut Connector Gasket O-Ring pc Cable Clamp Screws Washers	11 pcs	Plug Housing
Amphenol Tuchel Industrial C091 11D005 000 2	Keyed	1.5 mm	Contacts Not Included	Shielded	Threaded	UL94 V-0	Nickel	Circular	5	Die Cast	Free Hanging (In-Line)	M16-5	100 °C	-40 °C	Silver	Backshell Cable Clamp Coupling Nut	Thermoplastic	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Crimp	For Female Sockets	Backshell Cable Nut Connector Gasket O-Ring pc Cable Clamp Screws Washers	11 pcs	Plug Housing
