210878 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNA, PCB, 5G/4G/3G/2G, NB-IOT, CAT-M, GNSS, 5 GHZ TO 6 GHZ, 1.9 DBI, LINEAR, SMD

Part	Termination	Frequency (Center/Band)	Mounting Type	Gain	Frequency Group	Number of Bands	Frequency Range (Band 2) Maximum	Frequency Range (Band 4) Maximum	Frequency Range (Band 1) Maximum	Frequency Range (Band 4) Minimum	Frequency Range (Band 3) Maximum	Frequency Range (Band 5) Minimum	Frequency Range (Band 5) Maximum	Frequency Range (Band 3) Minimum	Frequency Range (Band 2) Minimum	Frequency Range (Band 1) Minimum	VSWR	Applications	Antenna Type	Height (Max)	RF Family/Standard	Frequency (Center/Band) - 5	Frequency (Center/Band) - 2	Frequency (Center/Band) - 3	Frequency (Center/Band) - 4	Frequency (Center/Band) - 1
TE Connectivity AMP Connectors 2108784-2	Solder	1.5945GHz 2.2GHz 3.55GHz 5.45GHz 829MHz	Surface Mount	0.98 dBi 1.93 dBi 2.3 dBi 3 dBi 4 dBi	Wide Band	5	1.614 GHz	3.8 GHz	960 MHz	3.3 GHz	2.69 GHz	4.9 GHz	6 GHz	1.71 GHz	1.575 GHz	698 MHz	3	CDMA GSM LTE	Chip	0.125 in	Cellular
TE Connectivity AMP Connectors 2108784-1	Solder	1.5945GHz 2.2GHz 3.55GHz 5.45GHz 839MHz	Surface Mount	0.98 dBi 1.93 dBi 2.3 dBi 3 dBi 4 dBi	Wide Band	5	1.614 GHz	3.8 GHz	960 MHz	3.3 GHz	2.69 GHz	4.9 GHz	6 GHz	1.71 GHz	1.575 GHz	698 MHz	3	CDMA GSM LTE	PCB Trace	0.125 in	Cellular	5.45 GHz	1.5945 GHz	2.2 GHz	3.55 GHz	839 MHz

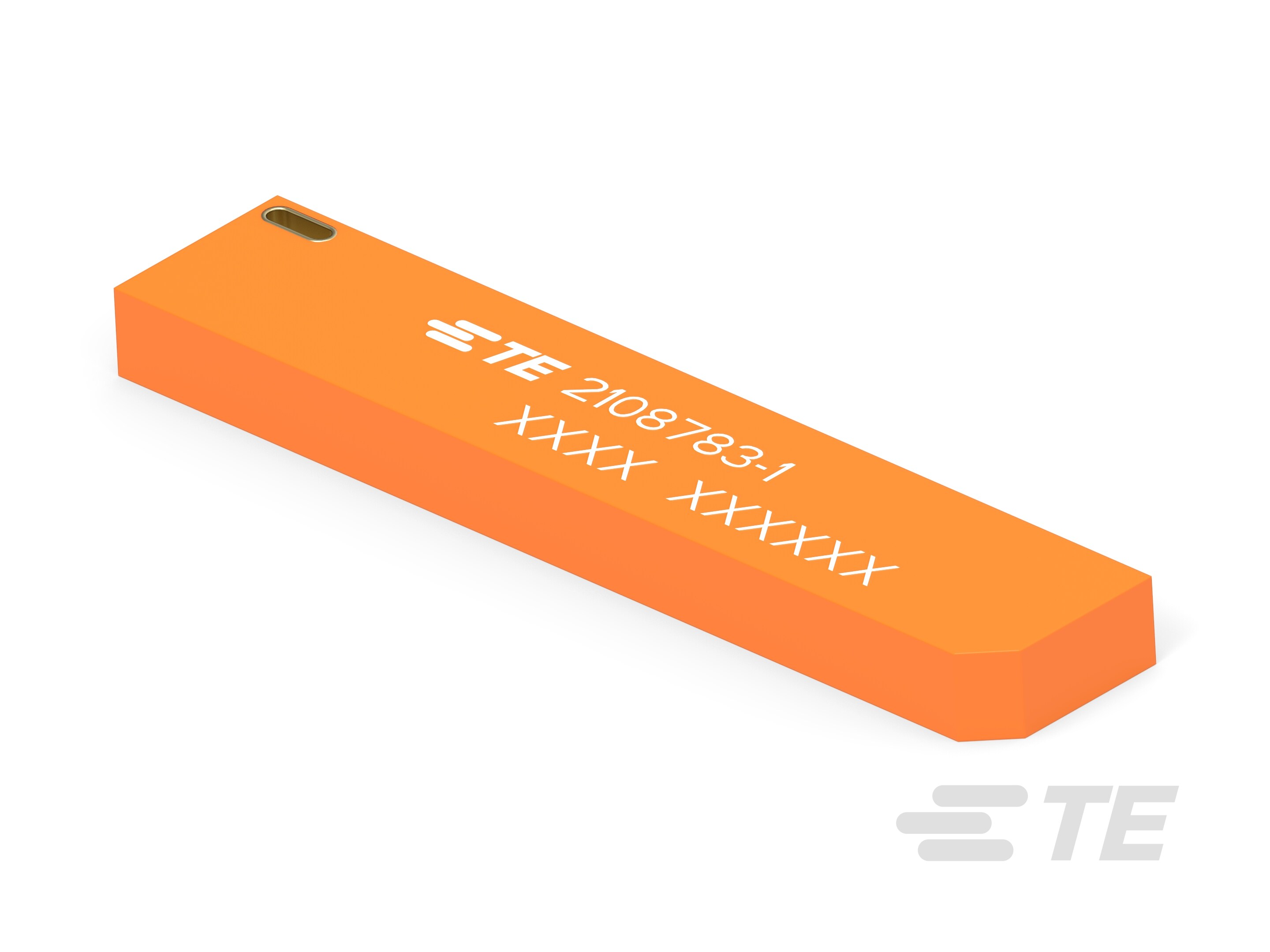

TE Connectivity AMP Connectors 2108783-2	Solder	1.515GHz 2.2GHz 3.55GHz 780MHz	Surface Mount	2 dBi 2.5 dBi 3.2 dBi 4.9 dBi	Wide Band	4	1.61 GHz	3.8 GHz	862 MHz	3.3 GHz	2.69 GHz			1.71 GHz	1.42 GHz	698 MHz	2	CDMA GSM LTE	Chip	0.125 in	Cellular		1.515 GHz	2.2 GHz	3.55 GHz	780 MHz
TE Connectivity AMP Connectors 2108783-1	Solder	1.515GHz 2.2GHz 3.55GHz 780MHz	Surface Mount	2 dBi 2.5 dBi 3.2 dBi 4.9 dBi	Wide Band	4	1.61 GHz	3.8 GHz	862 MHz	3.3 GHz	2.69 GHz			1.71 GHz	1.42 GHz	698 MHz	2	CDMA GSM LTE	PCB Trace	0.125 in	Cellular		1.515 GHz	2.2 GHz	3.55 GHz	780 MHz
