SEAM-RA Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

Catalog

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

Part	Number of Rows	Contact Finish	Connector Type	Contact Finish Thickness	Height Above Board	Pitch	Features	Mounting Type	Number of Positions
Samtec Inc. SEAM-20-01-L-08-2-RA-K-TR	8	Gold	High Density Array MALE	10 Ąin	0.411 in	0.05 in	Board Guide Pick and Place	Right Angle Surface Mount	160
Samtec Inc. SEAM-40-01-S-10-2-RA-GP-K-TR	10	Gold	High Density Array MALE	30 µin	0.511 in	0.05 in	Board Guide Mating Flange Pick and Place	Right Angle Surface Mount	400

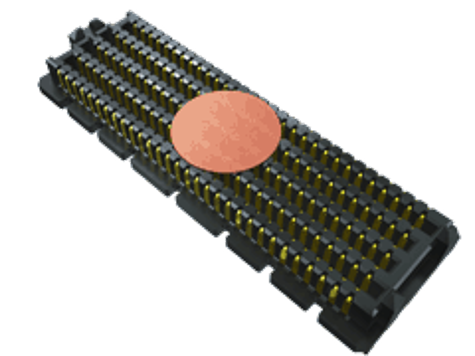

Samtec Inc. SEAM-30-01-L-06-2-RA-GP-TR	6	Gold	High Density Array MALE	10 Ąin	0.311 in	0.05 in	Board Guide Mating Flange	Right Angle Surface Mount	180
Samtec Inc. SEAM-40-01-L-04-2-RA-TR	4	Gold	High Density Array MALE	10 Ąin	0.211 in	0.05 in	Board Guide	Right Angle Surface Mount	160
Samtec Inc. SEAM-30-01-L-06-1-RA-TR	6	Gold	High Density Array MALE	10 Ąin	0.311 in	0.05 in	Board Guide	Right Angle Surface Mount	180
Samtec Inc. SEAM-20-01-L-10-1-RA-GP-K-TR	10	Gold	High Density Array MALE	10 Ąin	0.511 in	0.05 in	Board Guide Mating Flange Pick and Place	Right Angle Surface Mount	200
Samtec Inc. SEAM-20-01-S-06-1-RA-GP-K-TR	6	Gold	High Density Array MALE	30 µin	0.311 in	0.05 in	Board Guide Mating Flange Pick and Place	Right Angle Surface Mount	120
Samtec Inc. SEAM-30-01-S-06-1-RA-GP-TR	6	Gold	High Density Array MALE	30 µin	0.311 in	0.05 in	Board Guide Mating Flange	Right Angle Surface Mount	180

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Terminal
