KSL0V3 Series

Catalog

SWITCH TACTILE SPST-NO 0.01A 50V

Part	Operating Force	Termination Style	Ingress Protection	Switch Function	Mounting Type	Actuator Length (Right Angle)	Illumination	Outline Width	Outline Length	Operating Temperature (Max)	Operating Temperature (Min)	Contact Rating (Current)	Actuator Type	Actuator Orientation	Circuit	Ingress Protection IP Rating	Ingress Protection Description	Switch Travel	Mechanical Life (Cycles)
LITTELFUSE KSL0V330	130 gf	PC Pin	IP40	Off-Mom	Right Angle Through Hole	8.53 mm	Non-Illuminated	7.4 mm	7.4 mm	125 °C	-40 °C	0.01 A	Standard	Side Actuated	SPST-NO
LITTELFUSE KSL0V331LFT	130 gf	PC Pin		Off-Mom	Right Angle Through Hole	8.53 mm	Non-Illuminated	7.4 mm	7.4 mm	125 °C	-40 °C	0.01 A	Standard	Side Actuated	SPST-NO	IP60	Dust Tight
LITTELFUSE KSL0V331 LFTR	130 gf	PC Pin		Off-Mom	Right Angle Through Hole	8.53 mm	Non-Illuminated	7.4 mm	7.4 mm	125 °C	-40 °C	0.01 A	Standard	Side Actuated	SPST-NO	IP60	Dust Tight
LITTELFUSE KSL0V331 LFGR	130 gf	PC Pin		Off-Mom	Right Angle Through Hole	8.53 mm	Non-Illuminated	8 mm	8 mm	125 °C	-40 °C	0.01 A	Standard	Side Actuated	SPST-NO	IP60	Dust Tight	0.5 mm	1000000 Cycles
LITTELFUSE KSL0V311 LFTR	130 gf	PC Pin		Off-Mom	Right Angle Through Hole	8.53 mm	Non-Illuminated	8 mm	8 mm	90 °C	-40 °C	0.05 A	Standard	Side Actuated	SPST-NO	IP60	Dust Tight

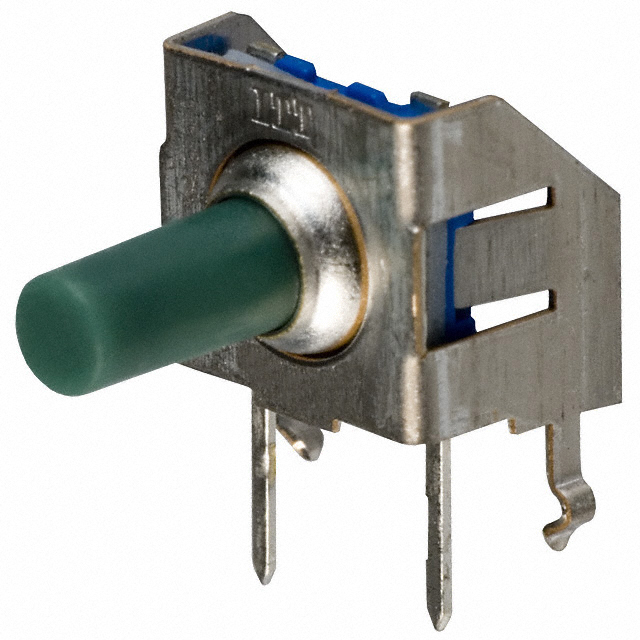

LITTELFUSE KSL0V311LFT	130 gf	PC Pin		Off-Mom	Right Angle Through Hole	8.53 mm	Non-Illuminated	8 mm	8 mm	90 °C	-40 °C	0.05 A	Standard	Side Actuated	SPST-NO	IP60	Dust Tight
