GLA Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

LIMIT SWITCH-OT : ROHS COMPLIANT: YES

Part	Overtravel (Angle)	Voltage Rating - DC	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating - AC	Differential Travel (Angle)	Operating Force	Operating Position (Angle)	Mounting Type	Current Rating	Actuator Type	Termination Style	Pretravel (Angle)	Circuit	Mechanical Life (Cycles)	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Features	Operating Position (Length)	Overtravel (Linear)	Differential Travel (Linear)	Pretravel (Length)
Honeywell Sensing and Productivity Solutions GLAB01A1B-5	59 °	125 V	Dust Tight Waterproof	IP67	120 V	12 °	33 gfm	26 °	Chassis Mount	6 A 550 mA	Roller Side Rotary	Screw Terminal	26 °	SPDT	15000000 Cycles	85 °C	-25 °C	On-Mom

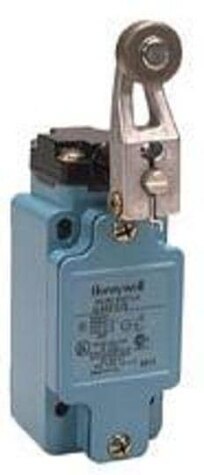

Honeywell Sensing and Productivity Solutions GLAA01A2D-F024	59 °	125 V	Dust Tight Waterproof	IP67	120 V	12 °	33 gfm	26 °	Chassis Mount	6 A 550 mA	Adjustable Roller Side Rotary	Screw Terminal	26 °	SPDT	15000000 Cycles	85 °C	-25 °C	On-Mom	Nylon Roller
Honeywell Sensing and Productivity Solutions GLAB26J1B		125 V	Dust Tight Waterproof	IP67	120 V	8 °	998 gf	16 °	Chassis Mount	6 A 550 mA	Roller Side Rotary	Screw Terminal	16 °	DPDT	15000000 Cycles	85 °C	-25 °C	Mom-Off-Mom	Center Neutral
Honeywell Sensing and Productivity Solutions GLAC01E7B		125 V	Dust Tight Water Resistant	IP66	120 V	8 °	10 gfm	18 °	Chassis Mount	6 A 550 mA	Coil Spring	Screw Terminal	18 °	SPDT	15000000 Cycles	85 °C	-25 °C	On-Mom
Honeywell Sensing and Productivity Solutions GLAD01B		125 V	Dust Tight Waterproof	IP67	120 V		1632 gf		Chassis Mount	6 A 550 mA	Round (Pin Plunger)	Screw Terminal		SPDT	15000000 Cycles	85 °C	-25 °C	On-Mom		1.38 in	0.18 in	0.035 in	0.1 in
Honeywell Sensing and Productivity Solutions GLAA07A1B	59 °	50 V	Dust Tight Waterproof	IP67	50 VAC	12 °	33 gfm	26 °	Chassis Mount	100 mA	Roller Side Rotary	Screw Terminal	26 °	SPDT	15000000 Cycles	85 °C	-25 °C	On-Mom	Steel Roller
Honeywell Sensing and Productivity Solutions GLAA01C-6

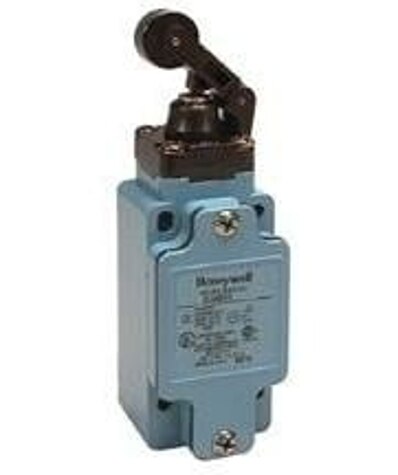

Honeywell Sensing and Productivity Solutions GLAC04D		125 V	Dust Tight Waterproof	IP67	120 V		969 gf		Chassis Mount	6 A 550 mA	Lever Roller	Screw Terminal	26 °	SPDT	15000000 Cycles	85 °C	-25 °C	On-Mom		2.4 in	0.35 in	0.065 in

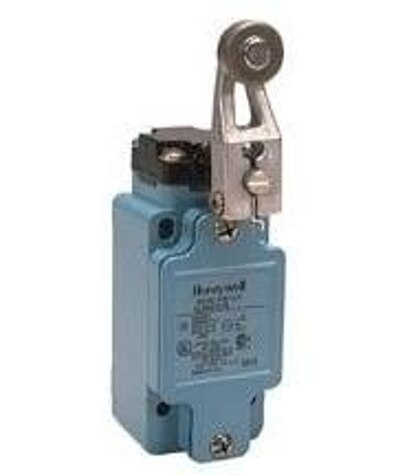

Honeywell Sensing and Productivity Solutions GLFA24A4J	59 °	125 V	Dust Tight Waterproof	IP67	120 V	12 °	33 gfm	26 °	Chassis Mount	6 A 550 mA	Adjustable Rod Side Rotary	Screw Terminal	26 °	DPDT	15000000 Cycles	85 °C	-25 °C	On-Mom	Status Indicator
Honeywell Sensing and Productivity Solutions GLAC20A2B	59 °	125 V	Dust Tight Waterproof	IP67	120 V	12 °	33 gfm	26 °	Chassis Mount	6 A 550 mA	Adjustable Roller Side Rotary	Screw Terminal	26 °	DPDT	15000000 Cycles	85 °C	-25 °C	On-Mom
