747516 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

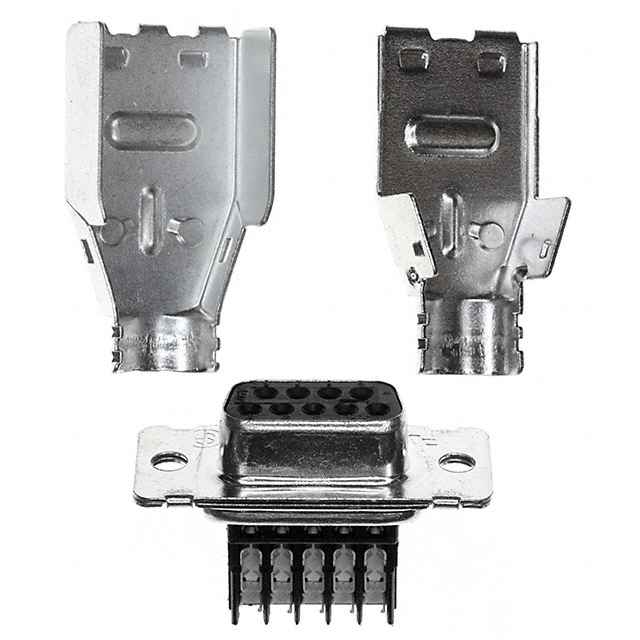

CONN D-SUB RCPT 9POS IDC
| Part | Contact Material | Termination | Wire Gauge [Min] | Wire Gauge [Max] | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Contact Finish | Connector Type | Number of Rows | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Color | Features | Material Flammability Rating | Voltage Rating | Flange Feature | Dielectric Material | Mounting Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | Discrete Wire IDC | 22 AWG | 26 AWG | D-Sub | DE E | 1 | Signal | Gold | Receptacle Female Sockets | 2 | 9 | 105 ░C | -55 °C | Black | Backshell Shielded | UL94 V-0 | 250 VDC | Housing/Shell (Unthreaded) | Thermoplastic | Free Hanging (In-Line) | Varies by Wire Gauge | 0.76 Ám | 30 Áin |
