8516 Series

Low Skew,1-to-16 Differential-to-LVDS Clock Distribution Chip

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew,1-to-16 Differential-to-LVDS Clock Distribution Chip

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package / Case	Input	Frequency - Max	Package Length	Package Name	Package Width	Input Ratio	Output Ratio	Type	Number of Circuits	Differential Input	Differential Output	Operating Temperature (Max)	Operating Temperature (Min)	Output	Mounting Type
Renesas Electronics Corporation 8516FYLF	3.135 V	3.465 V	48-LQFP	HCSL LVDS LVHSTL LVPECL SSTL	700 MHz	7 mm	48-TQFP	7 mm	1	16	Fanout Buffer (Distribution)	1	Yes	Yes	70 °C	0 °C	LVDS	Surface Mount
Renesas Electronics Corporation 8516FYLFT	3.135 V	3.465 V	48-LQFP	HCSL LVDS LVHSTL LVPECL SSTL	700 MHz	7 mm	48-TQFP	7 mm	1	16	Fanout Buffer (Distribution)	1	Yes	Yes	70 °C	0 °C	LVDS	Surface Mount

Catalog

Low Skew,1-to-16 Differential-to-LVDS Clock Distribution Chip

Description

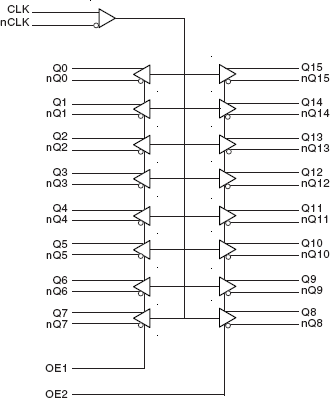

The 8516 is a low skew, high performance 1-to-16 Differential-to-LVDS Clock Distribution Chip. The 8516 CLK, nCLK pair can accept any differential input levels and translates them to 3.3V LVDS output levels. Utilizing Low Voltage Differential Signaling (LVDS), the 8516 provides a low power, low noise, pointto- point solution for distributing clock signals over controlled impedances of 100?. Dual output enable inputs allow the 8516 to be used in a 1-to-16 or 1-to-8 input/output mode. Guaranteed output and part-to-part skew specifications make the 8516 ideal for those applications demanding well defined performance and repeatability.
