ISL8205 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

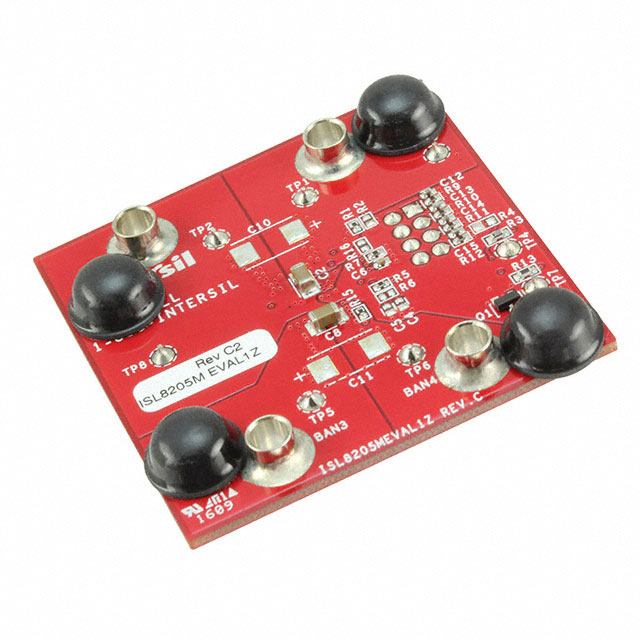

ISL8205 EVAL BOARD
| Part | Total Output Count | Output Type | Non-Isolated Output Count | Supplied Contents | Board Type | Voltage - Output | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Main Purpose | Frequency - Switching | Contents | Regulator Topology | Utilized IC / Part | Current - Output | Voltage - Input (Max) | Number of Outputs | Mounting Type | Voltage - Input (Min) | Features | Voltage - Output 1 (Max) | Voltage - Output 1 (Min) | Efficiency | Operating Temperature (Min) | Operating Temperature (Max) | Type | Applications | Current - Output (Max) | Package Name | Package Width | Package Length | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 1 | Non-Isolated | 1 count | Board(s) | Fully Populated | 1.2 V | 2.6 V | 5.5 V | DC/DC Step Down | 1.6 MHz | Board | Buck | ISL8205M | 5 A | ||||||||||||||||||||
 Renesas Electronics Corporation | 5.5 V | 1 | Surface Mount | 2.6 V | OCP OTP OVP SCP UVLO | 5.2 V | 0.6 V | 95 % | -40 °C | 85 °C | Non-Isolated PoL Module | ITE (Commercial) | 5 A | 22-QFN | 4.5 mm | 7.5 mm | 0.3 in | 0.07 in | 0.18 in | 22-PowerFQFN Module |
