ATBTLC1000 Series
Manufacturer: Microchip Technology
Beta
⌘K
ADAPTER BOARD FOR THE ATBTLC1000-XPRO EXPANSION BOARD
| Part | For Use With/Related Products | Accessory Type | Utilized IC / Part | Data Rate (Max) | Current - Transmitting | Current - Receiving | Package Length | Package Name | Package Width | Power - Output | Frequency | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Serial Interfaces | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Protocol | Sensitivity | Memory Type | Memory Size | Memory Size (ROM) | RF Family/Standard | Package / Case | GPIO Count | Type | Supplied Contents | Contents | Antenna Type | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

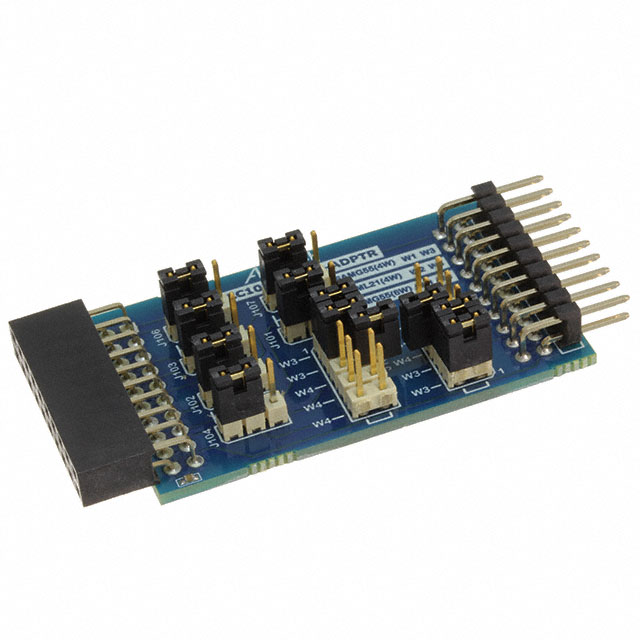

 Microchip Technology | ATBTLC1000-XPRO | Adapter Board | ATBTLC1000-XPRO | |||||||||||||||||||||||||||
 Microchip Technology | 3.4 Mbps | 3 mA | 4 mA | 4 mm | 32-QFN | 4 mm | 3.5 dBm | 2.4 GHz | -40 °C | 85 °C | Surface Mount | I2C SPI UART | 1.8 V | 4.3 V | Bluetooth v4.1 | -96 dBm | ROM | 128 kB | 128 kB | Bluetooth | 32-VFQFN Exposed Pad | 13 | TxRx + MCU | |||||||

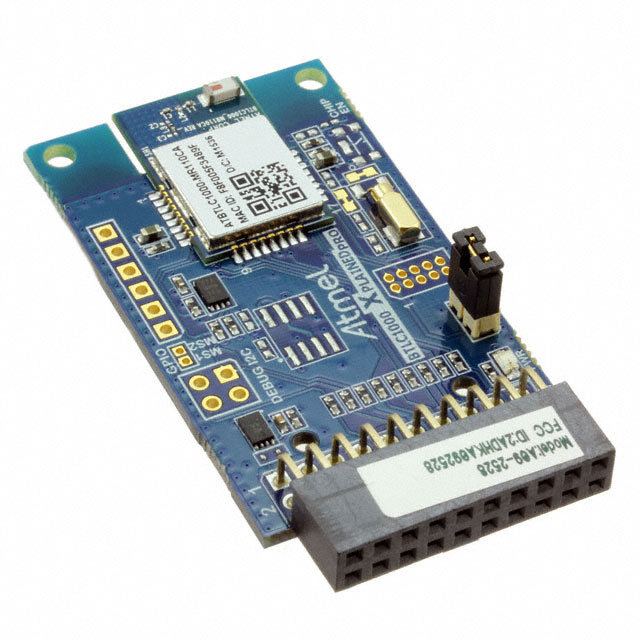

 Microchip Technology | BTLC1000 | BTLC1000 | 2.4 GHz | Bluetooth® Smart 4.x Low Energy (BLE) Transceiver | Board(s) | Board | ||||||||||||||||||||||||
 Microchip Technology | 3.4 Mbps | 3 mA | 4 mA | 4 mm | 32-QFN | 4 mm | 3.5 dBm | 2.4 GHz | -40 °C | 85 °C | Surface Mount | I2C SPI UART | 1.8 V | 4.3 V | Bluetooth v4.1 | -96 dBm | ROM | 128 kB | 128 kB | Bluetooth | 32-VFQFN Exposed Pad | 13 | TxRx + MCU | |||||||

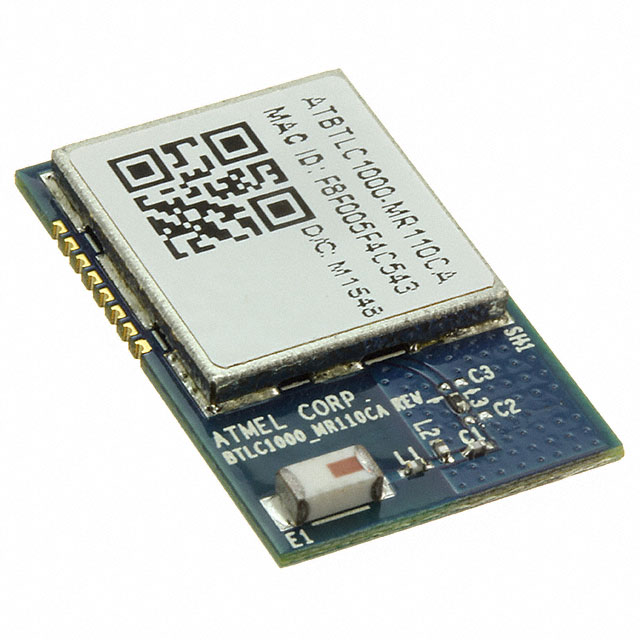

 Microchip Technology | 3 mA | 4.2 mA | 3.5 dBm | 2.4 GHz | -40 °C | 85 °C | Surface Mount | I2C SPI UART | 1.8 V | 4.3 V | Bluetooth v4.1 | -95 dBm | Bluetooth | Module | Chip Integrated | |||||||||||||||
Microchip Technology | 3 mA | 5 mA | 3 dBm | 2.4 GHz | -40 °C | 85 °C | Surface Mount | I2C SPI UART | Bluetooth v4.1 | -95 dBm | ROM | 128 kB | 128 kB | Bluetooth | Module | 4.3 V | ||||||||||||||
 Microchip Technology | BTLC1000 | BTLC1000 | 2.4 GHz | Bluetooth® Smart 4.x Low Energy (BLE) Transceiver | Board(s) | Board | ||||||||||||||||||||||||
 Microchip Technology | 3 mA | 4.2 mA | 3.5 dBm | 2.4 GHz | -40 °C | 85 °C | Surface Mount | I2C SPI UART | 1.8 V | 4.3 V | Bluetooth v4.1 | -95 dBm | ROM | 128 kB | 128 kB | Bluetooth | 24-SMD Module | Chip Integrated |
