556882 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN WIRE TO BOARD RCP 6POWER POS 11.18MM SOLDER RA THRU-HOLE BOX
| Part | Contact Finish Thickness | Contact Finish | Contact Material | Operating Temperature (Max) | Operating Temperature (Min) | Fastening Type | Material - Insulation | Voltage Rating | Current Rating | Termination | Pitch | Features | Color | Connector Type | Number of Rows | Number of Positions | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 100 µin | Tin | Copper | 105 °C | 0 °C | Locking Ramp | Polyphthalamide PPA | 600 V | 35 A | Solder | 0.44 in | Flange | Black | Female Blade Sockets Receptacle | 1 | 6 | Right Angle Through Hole |

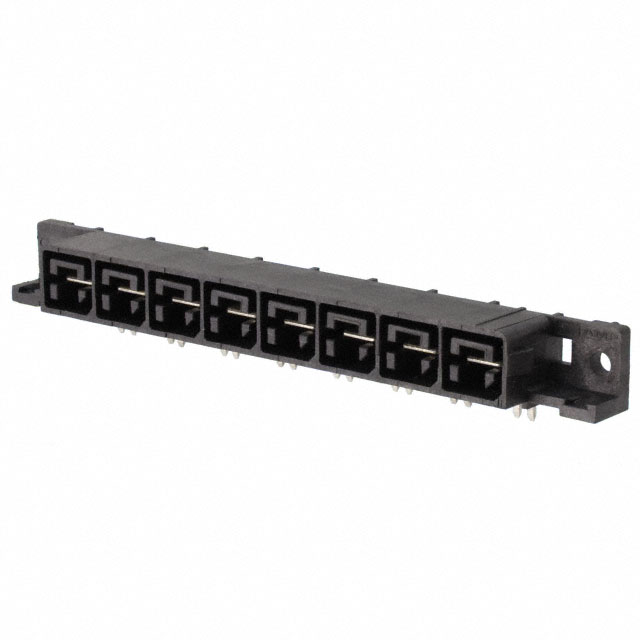

 TE Connectivity AMP Connectors | 100 µin | Tin | Copper | 105 °C | 0 °C | Locking Ramp | Polyphthalamide PPA | 600 V | 35 A | Solder | 0.44 in | Flange | Black | Female Blade Sockets Receptacle | 1 | 8 | Right Angle Through Hole |

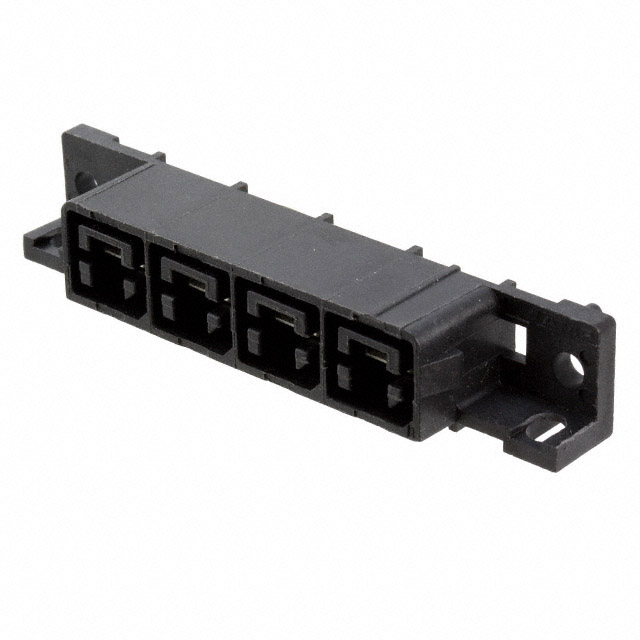

 TE Connectivity AMP Connectors | 100 µin | Tin | Copper | 105 °C | 0 °C | Locking Ramp | Polyphthalamide PPA | 600 V | 35 A | Solder | 0.44 in | Flange | Black | Female Blade Sockets Receptacle | 1 | 4 | Right Angle Through Hole |

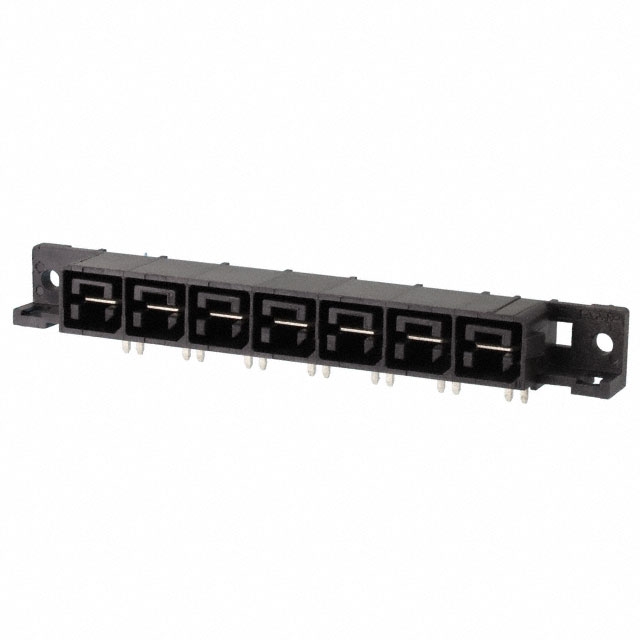

 TE Connectivity AMP Connectors | 100 µin | Tin | Copper | 105 °C | 0 °C | Locking Ramp | Polyphthalamide PPA | 600 V | 35 A | Solder | 0.44 in | Flange | Black | Female Blade Sockets Receptacle | 1 | 7 | Right Angle Through Hole |

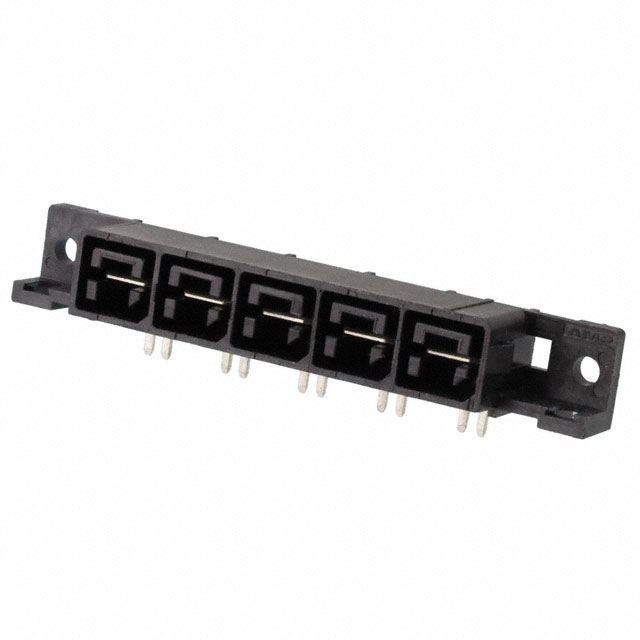

 TE Connectivity AMP Connectors | 100 µin | Tin | Copper | 105 °C | 0 °C | Locking Ramp | Polyphthalamide PPA | 600 V | 35 A | Solder | 0.44 in | Flange | Black | Female Blade Sockets Receptacle | 1 | 5 | Right Angle Through Hole |

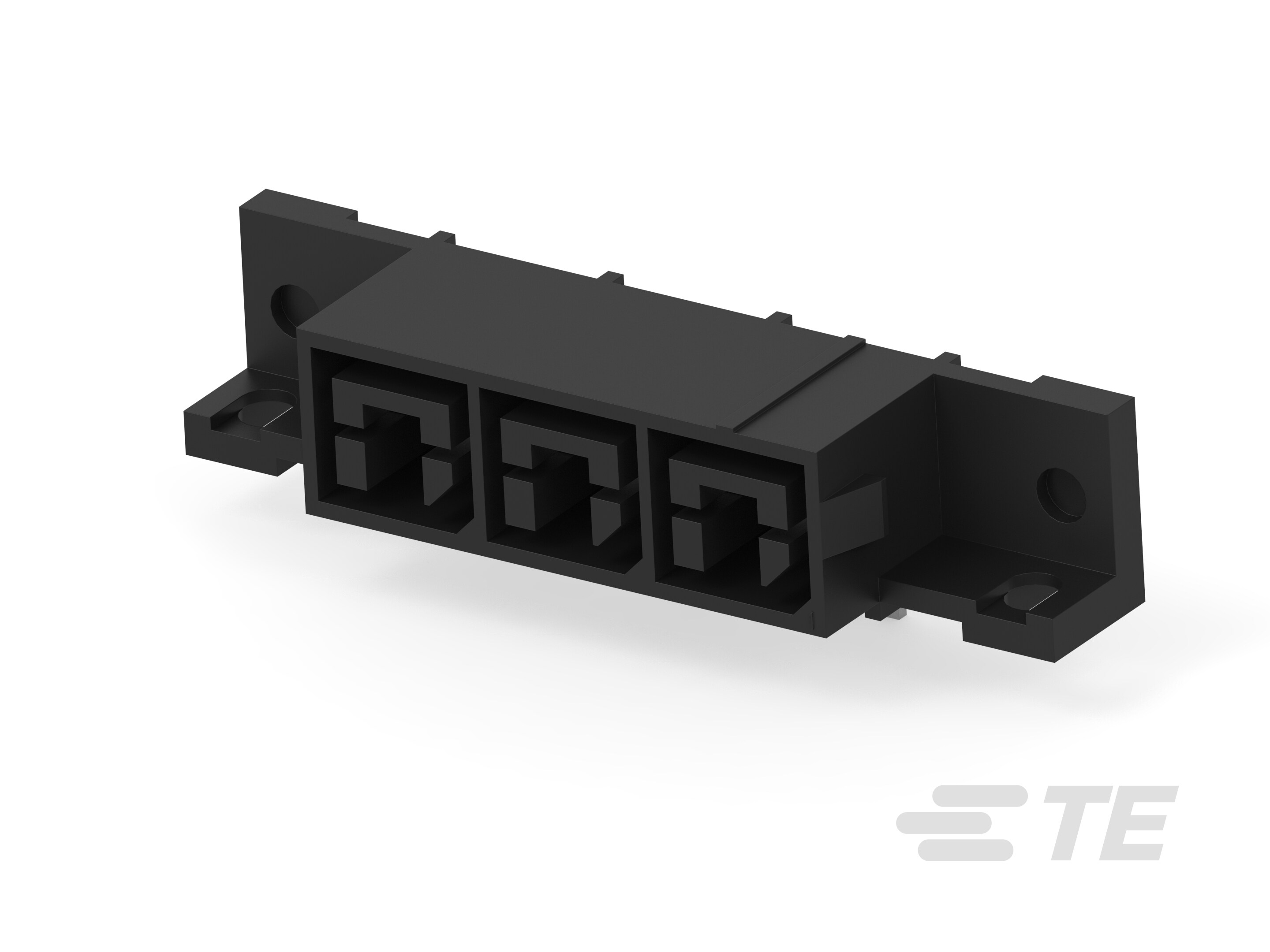

 TE Connectivity AMP Connectors | 100 µin | Tin | Copper | 105 °C | 0 °C | Locking Ramp | Polyphthalamide PPA | 600 V | 35 A | Solder | 0.44 in | Flange | Black | Female Blade Sockets Receptacle | 1 | 3 | Right Angle Through Hole |
