MCP33151 Series

14-Bit, 500kSPS, Single Channel ADC

Catalog

14-Bit, 500kSPS, Single Channel ADC

Part	Number of Bits	Operating Temperature (Max)	Operating Temperature (Min)	Architecture	Ratio - ADC	Mounting Type	Input Type	Reference Type	Data Interface	Package Name	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Configuration	Qualification	Number of A/D Converters	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Grade	Package Length	Package Width	Sampling Rate (Per Second)	Number of Inputs	Package / Case

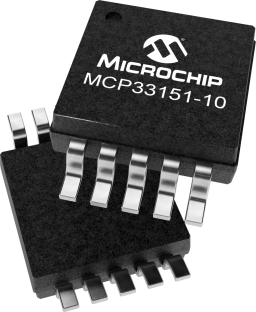

Microchip Technology MCP33151-10T-E/MS	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Single Ended	External	SPI	10-MSOP 10-TFSOP	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	0.118 in	3 mm	1 MHz	1

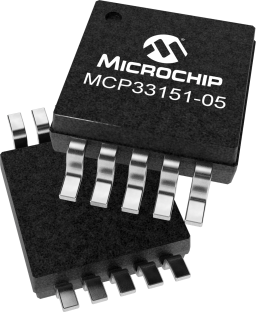

Microchip Technology MCP33151-05T-E/MS	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Single Ended	External	SPI	10-MSOP 10-TFSOP	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	0.118 in	3 mm	500 kHz	1
Microchip Technology MCP33151D-10T-E/MN	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Differential	External	SPI	10-TDFN	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	3 mm	3 mm	1 MHz	1	10-WFDFN Exposed Pad
Microchip Technology MCP33151-05-E/MN	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Single Ended	External	SPI	10-TDFN	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	3 mm	3 mm	500 kHz	1	10-WFDFN Exposed Pad
Microchip Technology MCP33151-10-E/MN	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Single Ended	External	SPI	10-TDFN	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	3 mm	3 mm	1 MHz	1	10-WFDFN Exposed Pad
Microchip Technology MCP33151D-10-E/MN	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Differential	External	SPI	10-TDFN	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	3 mm	3 mm	1 MHz	1	10-WFDFN Exposed Pad
Microchip Technology MCP33151D-05T-E/MS	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Differential	External	SPI	10-MSOP 10-TFSOP	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	0.118 in	3 mm	500 kHz	1
Microchip Technology MCP33151-05T-E/MN	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Single Ended	External	SPI	10-TDFN	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	3 mm	3 mm	500 kHz	1	10-WFDFN Exposed Pad
Microchip Technology MCP33151D-05T-E/MN	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Differential	External	SPI	10-TDFN	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	3 mm	3 mm	500 kHz	1	10-WFDFN Exposed Pad
Microchip Technology MCP33151D-05-E/MN	14 bits	125 °C	-40 °C	SAR	1	Surface Mount	Differential	External	SPI	10-TDFN	5.5 V	1.7 V	ADC	AEC-Q100	1 count	1.9 V	1.7 V	Automotive	3 mm	3 mm	500 kHz	1	10-WFDFN Exposed Pad

Catalog

14-Bit, 500kSPS, Single Channel ADC

Description

The MCP33151D-10 14-bit Analog-to-Digital Converter (ADC) features a differential input, high performance and low power consumption in a small package, making it ideal for battery powered systems and remote data acquisition applications. The MCP33151D-10 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 14-bit ADC capability to be added to any PIC® microcontroller. The MCP33151D-10 features 1M samples/second, 1 input channel, low power consumption (1.5µA typical standby current, 0.66mA typical active current), and is available in 10 pin MSOP and 10 pin TDFN. Applications for the MCP33151D-10 include high-precision data acquisition, medical instrumentation, motor control applications, electric vehicle battery management systems, battery operated applications, switch-mode power supply applications. MCP33151D-10 is fully automotive qualified (AEC-Q100) and specified for operation between -40 and 125 degrees Celsius. This ADC is designed to operate in both high-temperature and electromagnetic environments and to meet the rigorous and harsh demands of the automotive and industrial environment.
