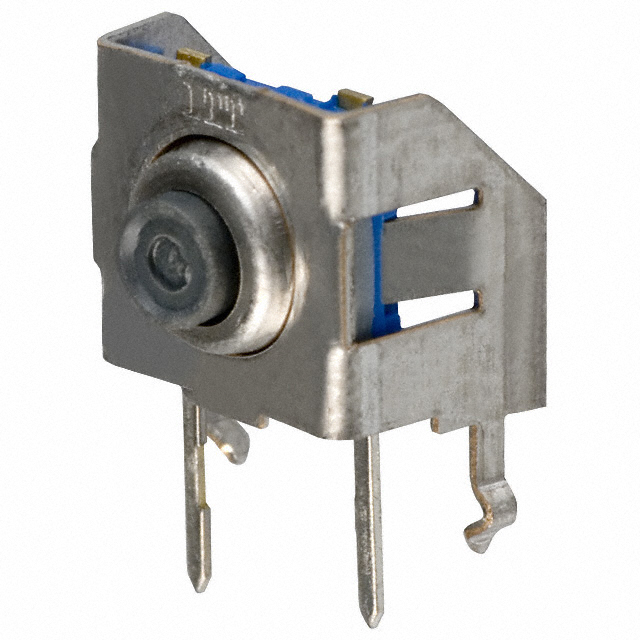

KSA0V4 Series
Manufacturer: LITTELFUSE
Beta
⌘K
SWITCH TACTILE OFF MOM SPST ROUND BUTTON PC PINS 0.01A 32VDC 0.2VA 100000CYCLES 3N BRACKET MOUNT/THROUGH HOLE BULK
| Part | Switch Function | Actuator Length (Right Angle) | Ingress Protection IP Rating | Ingress Protection Description | Mounting Type | Actuator Type | Circuit | Operating Force | Termination Style | Illumination | Outline Width | Outline Length | Operating Temperature (Max) | Operating Temperature (Min) | Contact Rating (Current) | Actuator Orientation | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Off-Mom | 3.23 mm | IP60 | Dust Tight | Right Angle Through Hole | Standard | SPST-NO | 300 gf | PC Pin | Non-Illuminated | 7.4 mm | 7.4 mm | 125 °C | -40 °C | 0.01 A | Side Actuated | |
 LITTELFUSE | Off-Mom | 3.23 mm | Right Angle Through Hole | Standard | SPST-NO | 300 gf | PC Pin | Non-Illuminated | 7.4 mm | 7.4 mm | 90 °C | -40 °C | 0.05 A | Side Actuated | IP40 |
