50871 Series

Catalog

CONN PIN RCPT .056-.065 SOLDER

Part	Features	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Hole Diameter (Min)	Mounting Hole Diameter (Max)	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Material	Contact Finish Thickness	Socket Depth	Contact Finish	Flange Diameter	Tail Type	Length - Overall	Termination

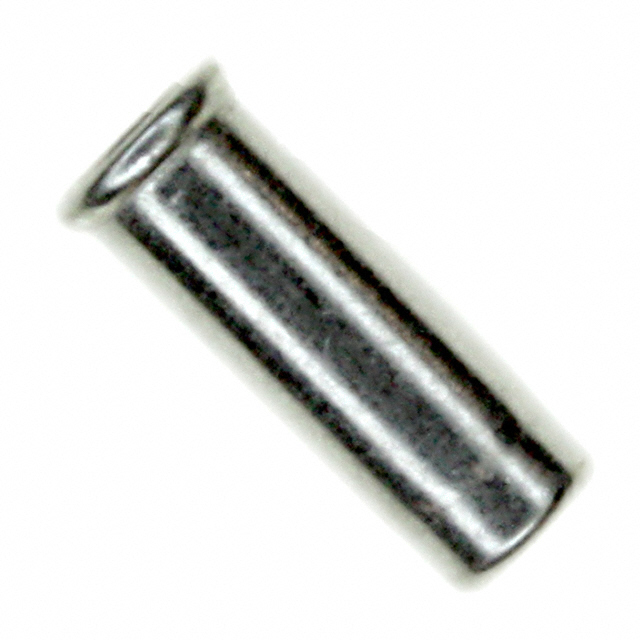

TE Connectivity AMP Connectors 1-50871-9	Open Bottom	125 °C	-65 °C	0.101 in	0.103 in	0.056 in	0.065 in	Beryllium Copper	30 µin	0.275 in	Gold	0.118 in	No Tail	0.288 in	Solder

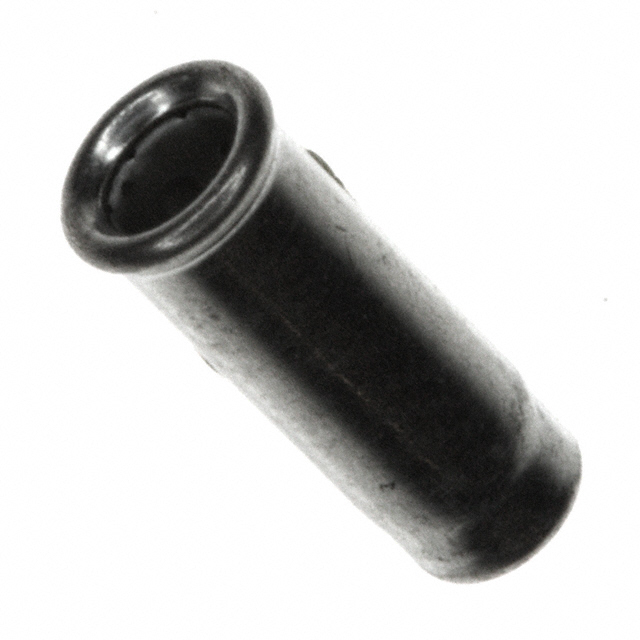

TE Connectivity AMP Connectors 2-50871-4	Open Bottom	125 °C	-65 °C	0.101 in	0.103 in	0.056 in	0.065 in	Beryllium Copper	100 µin	0.275 in	Tin	0.118 in	No Tail	0.288 in	Solder
TE Connectivity AMP Connectors 50871-6	Open Bottom	125 °C	-65 °C	0.101 in	0.103 in	0.042 in	0.049 in	Beryllium Copper	100 µin	0.275 in	Tin	0.118 in	No Tail	0.288 in	Solder
TE Connectivity AMP Connectors 2-50871-3	Closed Bottom	125 °C	-65 °C	0.101 in	0.103 in	0.056 in	0.065 in	Beryllium Copper	30 µin	0.275 in	Gold	0.118 in	No Tail	0.288 in	Solder
TE Connectivity AMP Connectors 50871-1	Open Bottom	125 °C	-65 °C	0.101 in	0.103 in	0.042 in	0.049 in	Beryllium Copper	30 µin	0.275 in	Gold	0.118 in	No Tail	0.288 in	Solder
TE Connectivity AMP Connectors 50871-8	Closed Bottom	125 °C	-65 °C	0.101 in	0.103 in	0.042 in	0.049 in	Beryllium Copper	100 µin	0.275 in	Tin	0.118 in	No Tail	0.288 in	Solder
