ADAQ8092 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

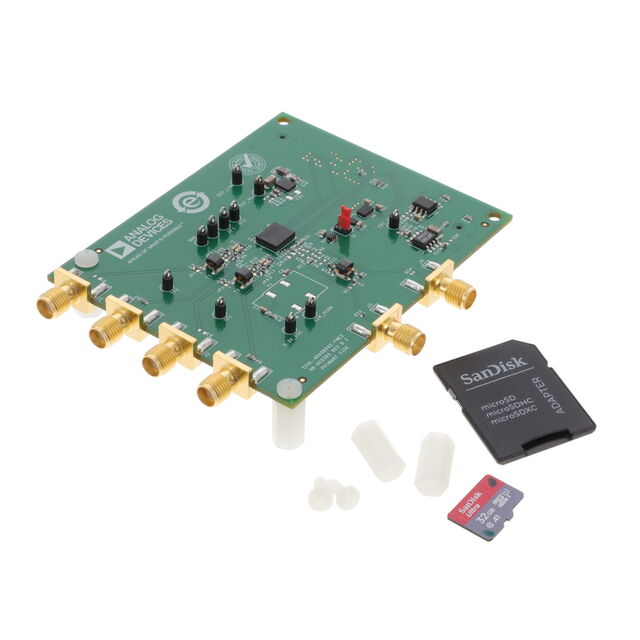

EVALUATION BOARD FOR DATA ACQUISITION SYSTEM DUAL ADC 14BIT
| Part | Secondary Attributes | Embedded | Type | Primary Attributes | Contents | Function | Utilized IC / Part | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 3 Minimum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 3 Maximum) | Voltage - Supply (Range 2 Maximum) | Data Interface | Package Name | Package Width | Package Length | Package / Case | Mounting Type | Sampling Rate (Per Second) | Voltage Supply Source | Resolution (Bits) | Number of Channels | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | SPI Interface(s) | No | Reference Design | 2-Channel (Dual) | Board | Data Acquisition | ADAQ8092 | ||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | Data Acquisition System (DAS) | 1.9 V | 1.7 V | 1.7 V | 3.2 V | 1.9 V | 5 V | Serial | 72-CSPBGA | 6 mm | 7 mm | 72-FBGA CSPBGA | Surface Mount | 105 MHz | Single Supply | 14 b | 2 | -40 °C | 105 °C |
