DW-32-12 Series

Catalog

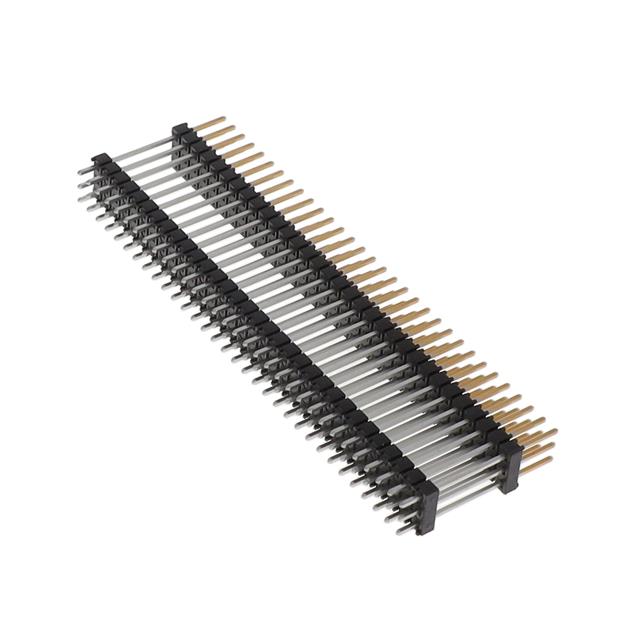

CONN HDR 32POS 0.1 STACK T/H TIN

Part	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Length - Tail [x]	Length - Tail [x]	Number of Rows	Color	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-32-12-T-S-800	20.32 mm	0.8 in	2.54 mm	0.1 in	0.11 in	2.794 mm	1	Black	3.048 mm	0.12 in	Tin	1.03 in	26.162 mm	Through Hole	Solder
Samtec Inc. DW-32-12-S-D-620	15.748 mm	0.62 in	2.54 mm	0.1 in	0.11 in	2.794 mm	2	Black	7.62 mm	0.3 in	Gold	1.03 in	26.162 mm	Through Hole	Solder	30 µin	0.76 µm	64	0.1 in	2.54 mm
Samtec Inc. DW-32-12-T-D-680	17.272 mm	0.68 in	2.54 mm	0.1 in	0.11 in	2.794 mm	2	Black	6.096 mm	0.24 in	Tin	1.03 in	26.162 mm	Through Hole	Solder			64	0.1 in	2.54 mm
Samtec Inc. DW-32-12-T-S-826			2.54 mm	0.1 in	0.11 in	2.794 mm	1	Black	2.388 mm	0.094 in	Tin	1.03 in	26.162 mm	Through Hole	Solder						0.826 in	20.98 mm
Samtec Inc. DW-32-12-F-D-730	18.542 mm	0.73 in	2.54 mm	0.1 in	0.11 in	2.794 mm	2	Black	4.826 mm	0.19 in	Gold	1.03 in	26.162 mm	Through Hole	Solder	3 Áin	0.076 Ám	64	0.1 in	2.54 mm
Samtec Inc. DW-32-12-G-D-648-LL			2.54 mm	0.1 in	0.11 in	2.794 mm	2	Black	6.909 mm	0.272 in	Gold	1.03 in	26.162 mm	Through Hole	Solder	10 Áin	0.25 Ám	64	0.1 in	2.54 mm	0.648 in	16.469 mm
Samtec Inc. DW-32-12-F-D-700	17.78 mm	0.7 in	2.54 mm	0.1 in	0.11 in	2.794 mm	2	Black	5.588 mm	0.22 in	Gold	1.03 in	26.162 mm	Through Hole	Solder	3 Áin	0.076 Ám	64	0.1 in	2.54 mm
Samtec Inc. DW-32-12-L-S-590	14.986 mm	0.59 in	2.54 mm	0.1 in	0.11 in	2.794 mm	1	Black	8.382 mm	0.33 in	Gold	1.03 in	26.162 mm	Through Hole	Solder	10 Áin	0.25 Ám
