3410 Series

Catalog

CONN RING SLOTTED 16-22AWG #6

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Thickness	Contact Finish	Terminal Type	Contact Material	Termination	Width - Outer Edges	Features	Mounting Type	Insulation	Stud/Tab Size	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Overall	Stud/Tab Size	Stud/Tab Type
TE Connectivity AMP Connectors 34101	0.08 in	0.125 in	0.031 in	Tin	Slotted	Copper	Crimp	0.281 in	Serrated Termination	Free Hanging (In-Line)	Non-Insulated	6 Stud	16 AWG	22 AWG	0.71 in
TE Connectivity AMP Connectors 34103			0.031 in	Tin	Circular	Copper	Crimp	0.218 in	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Non-Insulated	2 Stud	16 AWG	22 AWG	0.449 in
TE Connectivity AMP Connectors 341039			0.031 in	Nickel			Crimp			Free Hanging (In-Line)	Insulated		12 AWG	14 AWG		M6 M6 Stud
TE Connectivity AMP Connectors 34105			0.031 in	Tin	Circular	Copper	Crimp	0.218 in	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Non-Insulated	6 Stud	16 AWG	22 AWG	0.449 in

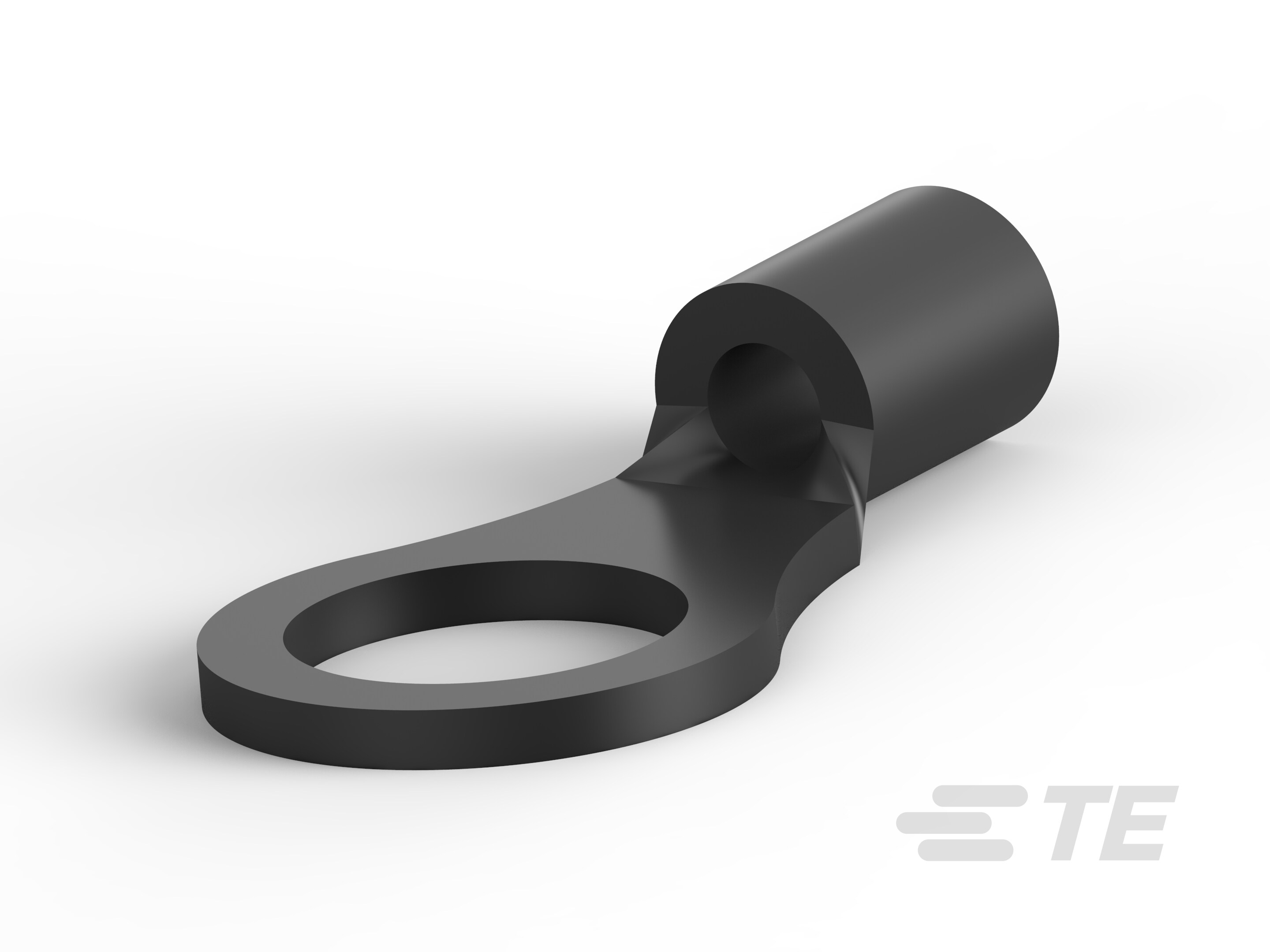

TE Connectivity AMP Connectors 34109			0.031 in	Tin	Circular	Copper	Crimp	0.281 in	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Non-Insulated	10 Stud	16 AWG	22 AWG	0.574 in
TE Connectivity AMP Connectors 34105			0.031 in	Tin	Circular	Copper	Crimp	0.218 in		Free Hanging (In-Line)	Non-Insulated	3.5 mm	16 AWG	22 AWG	0.449 in	M3.5 Stud	Stud
TE Connectivity AMP Connectors 34107			0.031 in	Tin	Circular	Copper	Crimp	0.281 in	Brazed Seam Serrated Termination	Free Hanging (In-Line)	Non-Insulated	6 Stud	16 AWG	22 AWG	0.574 in
